CyberPower RMCARD205 Quick Start Manuals

Quick Start Guide
REMOTE MANAGEMENT CARD
RMCARD205
RMCARD305
The Remote Management Card allows a UPS/ATS
system and environmental sensor to be managed,
monitored, and configured.
INSTALLATION GUIDE

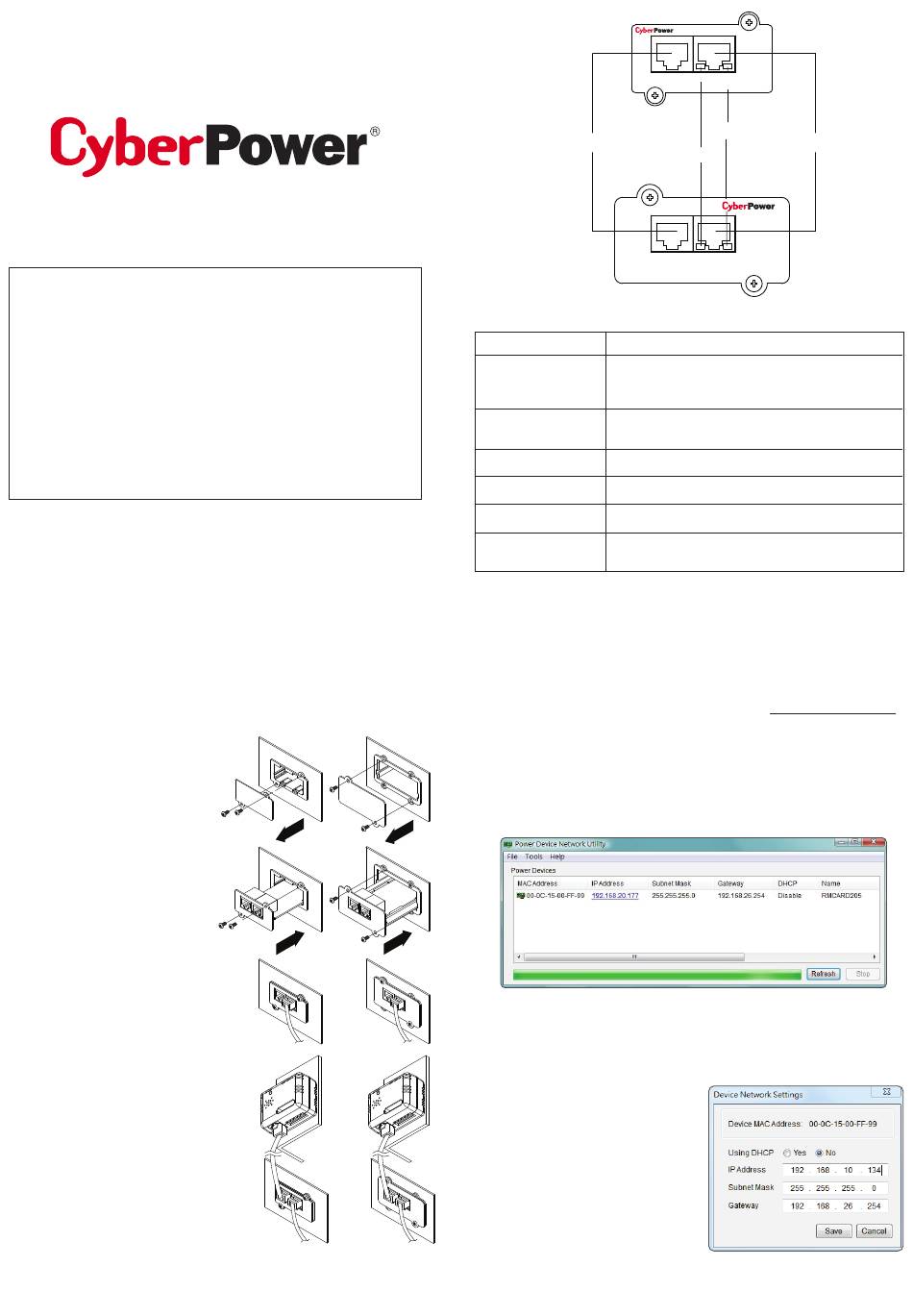

Step 1. Hardware Installation
1. Remove the two retaining
screws of the expansion slot,
and then remove the cover.
2. Install the CyberPower
Remote Management Card
into the expansion slot.
3. Insert and tighten the retaining
screws.
4. Connect an Ethernet cable to the
Ethernet port of the CyberPower
Remote Management Card.
5. (Optional) To connect with the
environmental sensor, use a RJ45
Ethernet cable. Connect one end to
the Universal port on the RMCARD
and the other end into the sensor.
For more information, please see
the ENVIROSENOR user's manual.
NOTE: The CyberPower Remote Management Card is hot-swappable,
so you do not need to turn off the device to install it.
K01-0000449-01
RMCARD205 RMCARD305
C y
b e rP
o w
e r
C y
b e rP
U ni R M o w
ve rs C A U ni
ve rs e r
al R D
3 0 5 al
Li nk
Li nk
T x/
R x T x/
R M R x
C A
R D
2 0 5
C y
b e rP
o w
e r
C y
b e rP
R M
U ni C A U ni
ve rs ve rs
R D
al 3 0 5 al
T x/
T x/ R x
R x
R M
C A
R D
2 0 5
e rP
o w
e r
R M
C A
R D
sa l sa l
3 0 5
T x/ T x/
R x R x
R M
C A
R D
2 0 5
Universal Port
Definitions for LED Indicators
Link LED color
Off
On(Yellow)
Tx/Rx LED color
Off
On(Green)
Flash
Step 2. Configure the IP address for the CyberPower
Remote Management Card
Method 1: Using the Power Device Network Utility
1. Install the Power Device Network Utility available for download on the
Network Power Management product web page at www.CyberPower.com.
2. After installation completes, run the "Power Device Network Utility".
3. The main dialog of the Power Device Network Utility program is shown
in Figure 1. The configuration tool will display all CyberPower Remote
Management devices present on the same network subnet. The
"Refresh" button is used to search the local network subnet again.
Figure 1. The main window of the "Power Device Network Utility" program.
o w
e r
4. Select the Remote Management Card you are setting up. Click on the
Tools menu and select "Device Setup" or double click the Remote
Management Card you want to configure.
5. You can modify the IP Address,
Subnet Mask, and Gateway
address for the Device MAC
Address listed in the Device
Network Settings window, as
shown in Figure 2. The factory
default IP Address is
C y 192.168.20.177 and the default
b e rP
o w
e r
Subnet Mask is 255.255.255.0.
6. Modify the IP, subnet mask or
gateway address. Enter the new
addresses into the corresponding
fields and then click "Save".
Universal Link Tx/Rx
RMCARD205
Tx/Rx Indicator
Ethernet Port
LINK Indicator
Universal Link Tx/Rx
RMCARD305
Condition
The Remote Management Card is not
connected to the Network/ or the Remote
Management Card power is off
The Remote Management Card is connected
to the Network
The Remote Management Card power is off
The Remote Management Card power is on
- Receiving/transmitting data packet
- Reset finished
Figure 2. The Device Network setting window.
