This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate.
The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the UPS.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect the operation or safety of any life support equipment, with any medical applications, or patient care.
Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity range).
To reduce the risk of electric shock, do not remove the cover, except to service the battery. There are no user serviceable parts inside, except for the battery.
To avoid electrical shock, turn off the unit and unplug it from the AC power source before servicing the battery or installing a computer component.
DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause the machine to short out.
DO NOT USE WITH LASER PRINTERS! The power demands of laser printers are too large for a UPS.
The box should contain the following:
*PowerPanel® Personal Edition software is available on our website. Please visit www.cyberpower.com and go to the Software Section for free download.

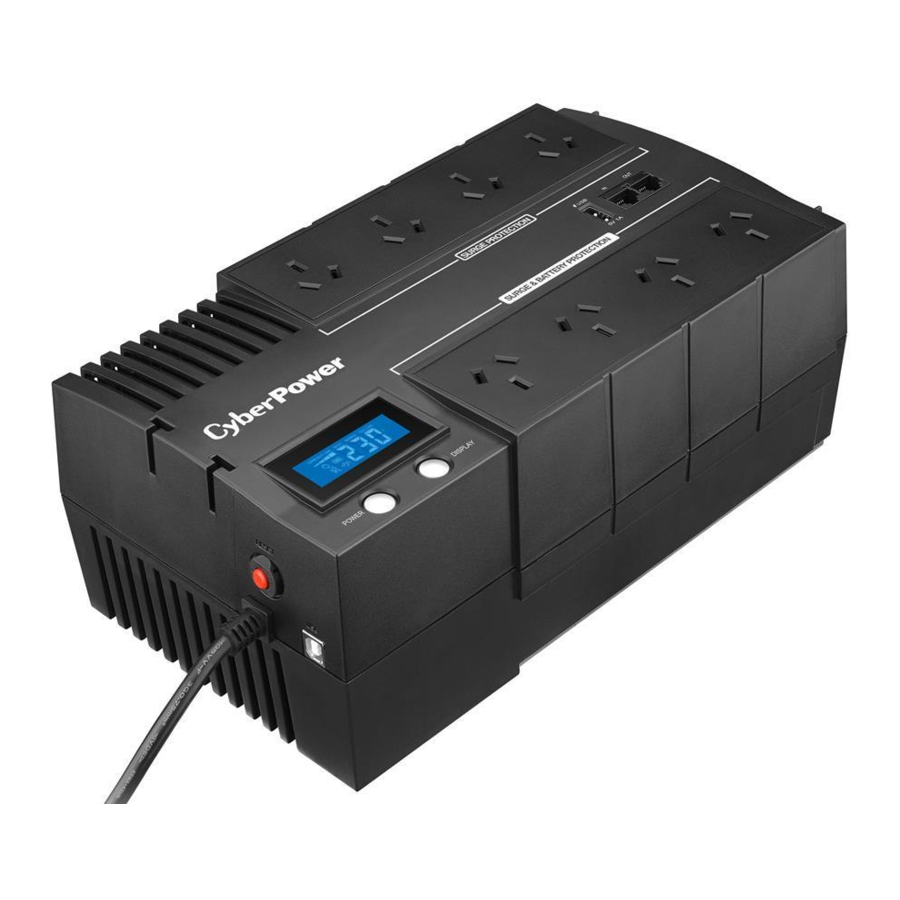

The BR700ELCD/ BR850ELCD/ BR1000ELCD/ BR1200ELCD provides automatic voltage regulation for inconsistent utility power. The BR700ELCD/ BR850ELCD/ BR1000ELCD/ BR1200ELCD features 125 Joules of surge protection, and provides battery backup during power outages. The BR700ELCD/ BR850ELCD/ BR1000ELCD/ BR1200ELCD ensures consistent power to your computer system and its included software will automatically save your open files and shutdown your computer system during a utility power loss.
Model | BR700ELCD-AU | BR850ELCD-AU | BR1000ELCD-AU | BR1200ELCD-AU |
Capacity (VA) | 700VA | 850VA | 1000VA | 1200VA |
Capacity (Watts) | 420W | 510W | 600W | 720W |
Input | ||||
Input Voltage Range | 170-290Vac | |||
Frequency Range | 47~63Hz (Auto Sensing) | |||
AVR Function | Boost @ 200+/-10V | |||
Output | ||||
On Battery Output Voltage | Simulated Sine Wave at 230Vac +/-10% | |||
On Battery Output Frequency | 50/60Hz +/-1% | |||
Transfer Time | 4ms Typical | |||
Overload Protection | On Utility: Circuit Breaker and Internal Current Limiting On Battery: Internal Current Limiting | |||
Surge Protection | ||||
Lightning / Surge Protection | Yes | |||
Network/ Phone/ Fax/ Modem Protection | RJ11/RJ45 (One In/ One Out) | |||
Operating Temperature | +32°F to 104°F ( 0°C to 40°C ) | |||
Physical | ||||
Total # of UPS outlets | 8 (4 for battery backup and surge, 4 for surge only) | |||
Dimensions (WxHxD) (mm) | 166x 118x288 | |||
Weight (kg) | 5.3 | 6.5 | 6.5 | 8.2 |
Wall-mounted Distance(mm) | 163 | |||
Battery | ||||
Sealed Maintenance Free Lead Acid Battery | RBP0083 x 1 | RBP0006x 1 | RBP0063 x 2 | |
Typical Recharge Time | 8 hours | |||
User Replaceable | Yes | |||
Status Indicators | ||||
Indicators | Power On, LCD Display | |||
Audible Alarms | On Battery, Low Battery, Overload | |||
Communication | ||||
PowerPanel ® Personal Edition Software | Windows 8/7/Vista/XP/2000,Server 2012/2008/2003, Linux | |||
Management | ||||
Auto-Charger | Yes | |||
Auto-Restart | Yes | |||
USB interface | Yes |
Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Service the battery under the supervision of personnel knowledgeable of batteries and their precautions.
Use only the specified type of battery. See your dealer for replacement batteries.
The battery may present the risk of electrical shock. Do not dispose of batteries in a fire, as they may explode. Follow all local ordinances regarding proper disposal of batteries.
Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes and may be toxic.
A battery can present a high risk of short circuit current and electrical shock. Take the following precautions before replacing the battery:
CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The likelihood of such shock will be reduced if such grounds are removed during installation and maintenance (applicable to a UPS and a remote battery supply not having a grounded circuit)
Line Mode
"V": Illuminated,
"X": Not Illuminated,
"--": Either
Battery Mode
"V": Illuminated,
"X": Not Illuminated,
"--": Either
CyberPower's Green Commitment
CyberPower is dedicated to the development of green products, and has adopted Green practices throughout its business, including: membership in Climate Savers Computing Initiative (CSCI), accordance with the Restriction on Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols, as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the advanced energy solution for the environment and become a leading eco-friendly organization in the UPS industry.
Reduce Energy Cost with GreenPower UPSTM Technology
CyberPower's goal is not only to provide eco-friendly products but also to bring the best value for consumers. The advanced energy-saving design improves the operating efficiency and eliminates waste energy consumption. As a result, consumers will enjoy significant energy cost savings with the adoption of GreenPower UPSTM technology.
Problem | Possible Cause | Solution |
Full-time surge protection outlets stop providing power to equipment. Circuit breaker button is projecting from the side of the unit. | Circuit breaker has tripped due to an overload. | Turn the UPS off and unplug at least one piece of equipment. Wait 10 seconds, reset the circuit breaker by depressing the button, and then turn the UPS on. |
The UPS does not perform expected runtime. | Battery not fully charged. | Recharge the battery by leaving the UPS plugged in. |
Battery is slightly worn out. | Contact CyberPower Systems about replacement batteries. | |
The UPS will not turn on. | The on/off switch is designed to prevent damage by rapidly turning it off and on. | Turn the UPS off. Wait 10 seconds and then turn the UPS on. |
The battery is worn out. | Contact CyberPower Systems about replacement batteries | |
Mechanical problem. | Contact CyberPower Systems at www.cyberpower.com | |
PowerPanel® Personal Edition is inactive. | The USB cable is not connected. | Connect the USB cable to the UPS unit and an open serial port on the back of the computer. You must use the cable that came with the unit. |
The unit is not providing battery power. | Shutdown your computer and turn the UPS off. Wait 10 seconds and turn the UPS back on. This should reset the unit |
Additional troubleshooting information can be found at www.cyberpower.com
