MANUAL REGISTER WRITE TAB

The Manual Register Write tab (see Figure 18) allows manual
writes to the ADAR1000 registers, either individually (Values to
write) or grouped (Load and Write). Under Load and Write,
click Choose Input File to load a list of register writes from a
file or paste into the field directly. Click Write All to send the
list to the ADAR1000-EVALZ evaluation board.
When the device is initially powered up, enter 00099 into
Values to write. Entering 00099 performs a full register reset
and enables the 4-wire SPI SDO function.
User Guide

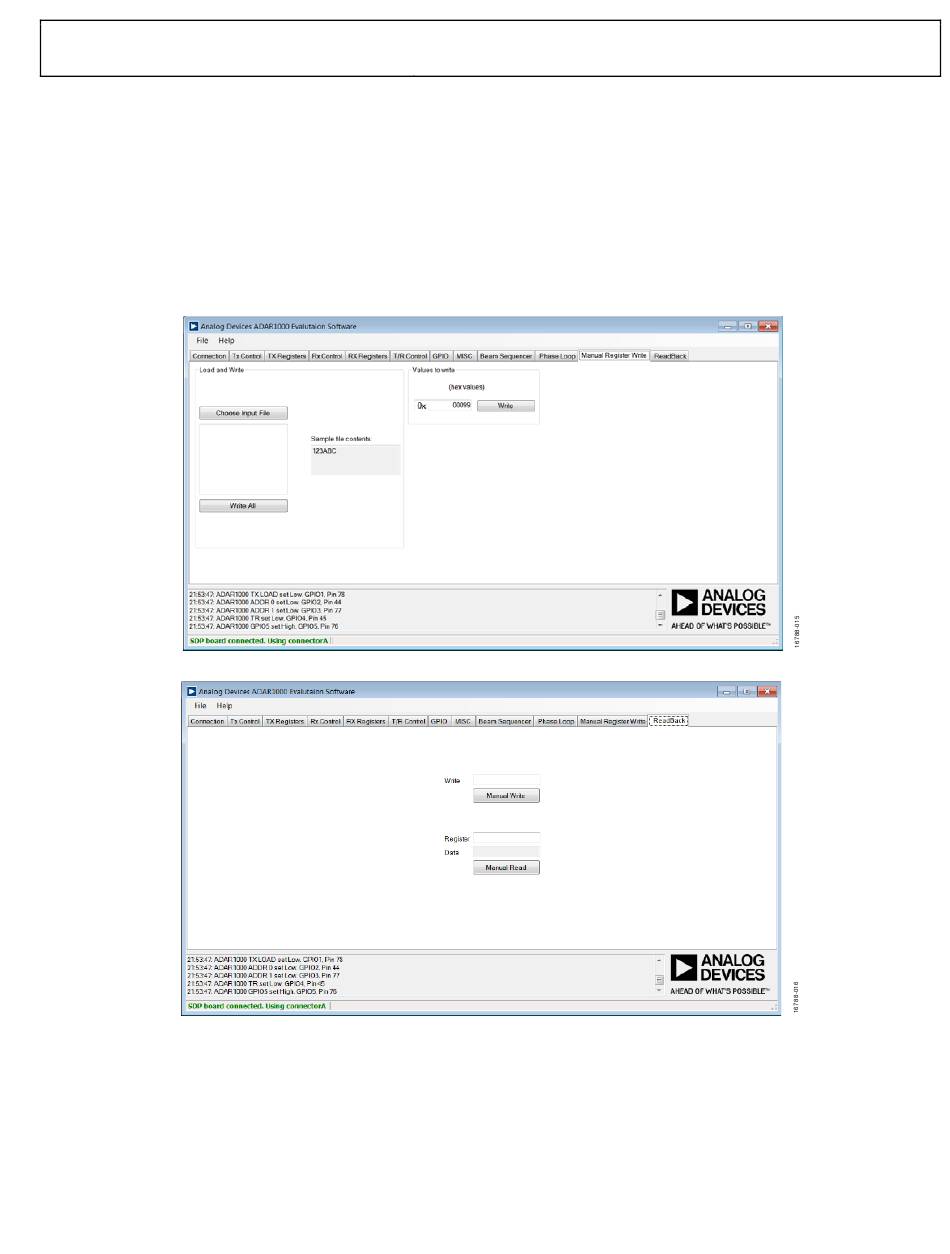

Figure 18. Manual Register Write Tab

READBACK TAB

The ReadBack tab allows direct writing and reading of the
content of a register (see Figure 19).
Click Manual Write to write a string of hexadecimal digits
containing the address and data of a register into the register.
Enter the register address in the Register field and click Manual
Read for the content of the register to display in the Data field.
Figure 19. ReadBack Tab
