T/R CONTROL TAB

The T/R Control tab controls the enabling of the transmit and
receive channels (see Figure 13).
If the TX EN check box (under Switch Control) is selected, the
TX Enable functions are enabled, and RX Enable functions are
disabled.
If the RX EN check box (under Switch Control) is selected, the
RX Enable functions are enabled, and TX Enable functions are
disabled.
After selecting or clearing the check boxes, click Write Enable
Values or Write Switch Values in each section to write the
register settings to the ADAR1000-EVALZ evaluation board.

GPIO TAB

In the GPIO tab (see Figure 14), select check boxes to set the
corresponding digital control signals on the ADAR1000-EVALZ
evaluation board to Logic 1 (selected) or Logic 0 (cleared).

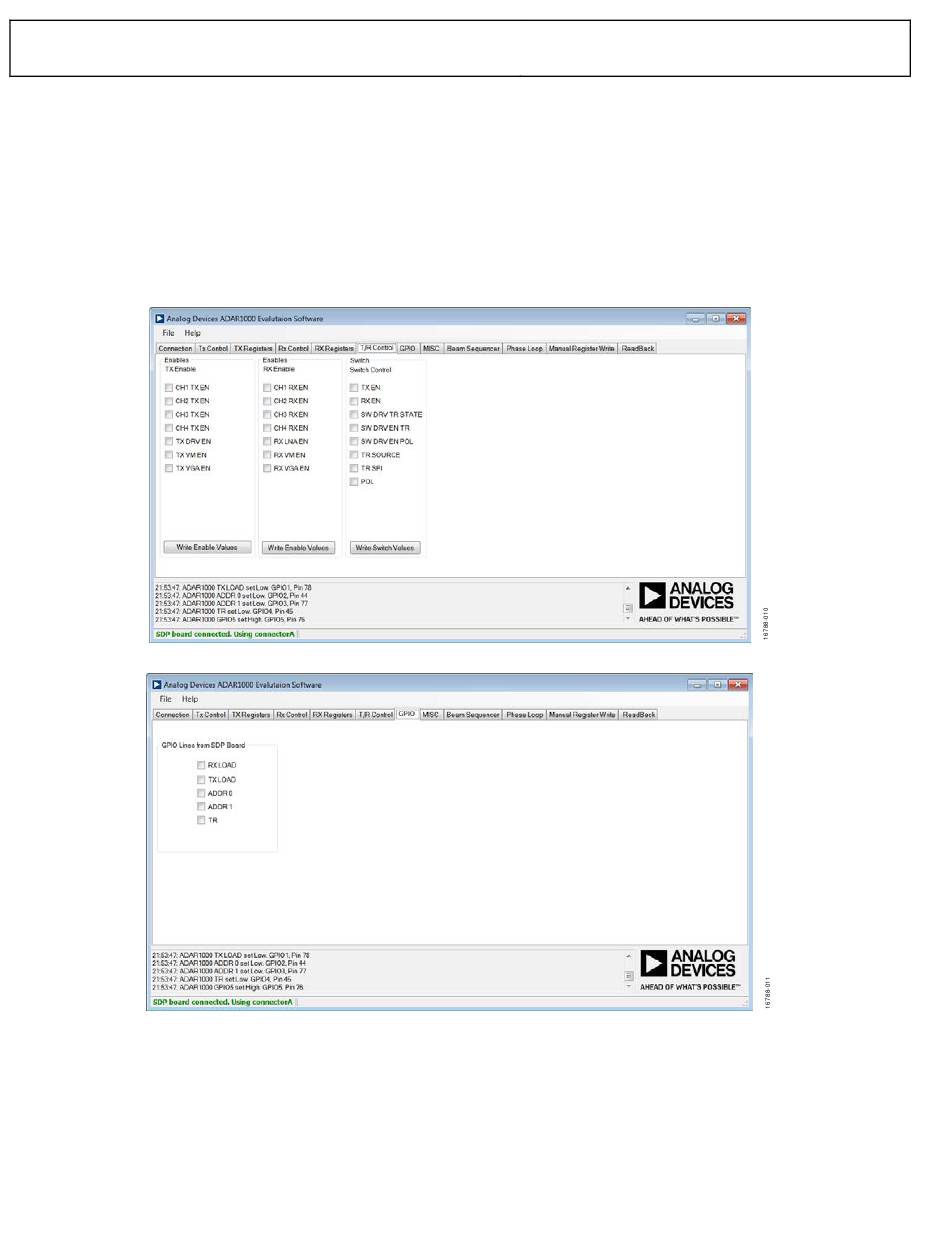

Figure 13. T/R Control Tab
Figure 14. GPIO Tab
