Getting Started with X900U+
2.5 Connecting to Controller with LandStar 7
This section uses Smartphone as the example to show how to connect the receiver to
the controller using LandStar 7 via Bluetooth.
Turn on the receiver → Launch LandStar 7 → press config on the bottom of the screen
→ choose Connect.
In the Connect screen, set Manufacturer as CHC, Device Type as X900U+, Connection
Type as Bluetooth.
Tap Bluetooth icon at the end of Bluetooth row, press Bluetooth Manager and connect
to the receiver's Bluetooth whose name is the GNSS-XXXXXXX (the SN of the current
receiver).
One step back, choose paired Bluetooth device with the receiver's SN. Set Antenna
Type as CHCX900U+ and press Connect on the lower right of the screen.

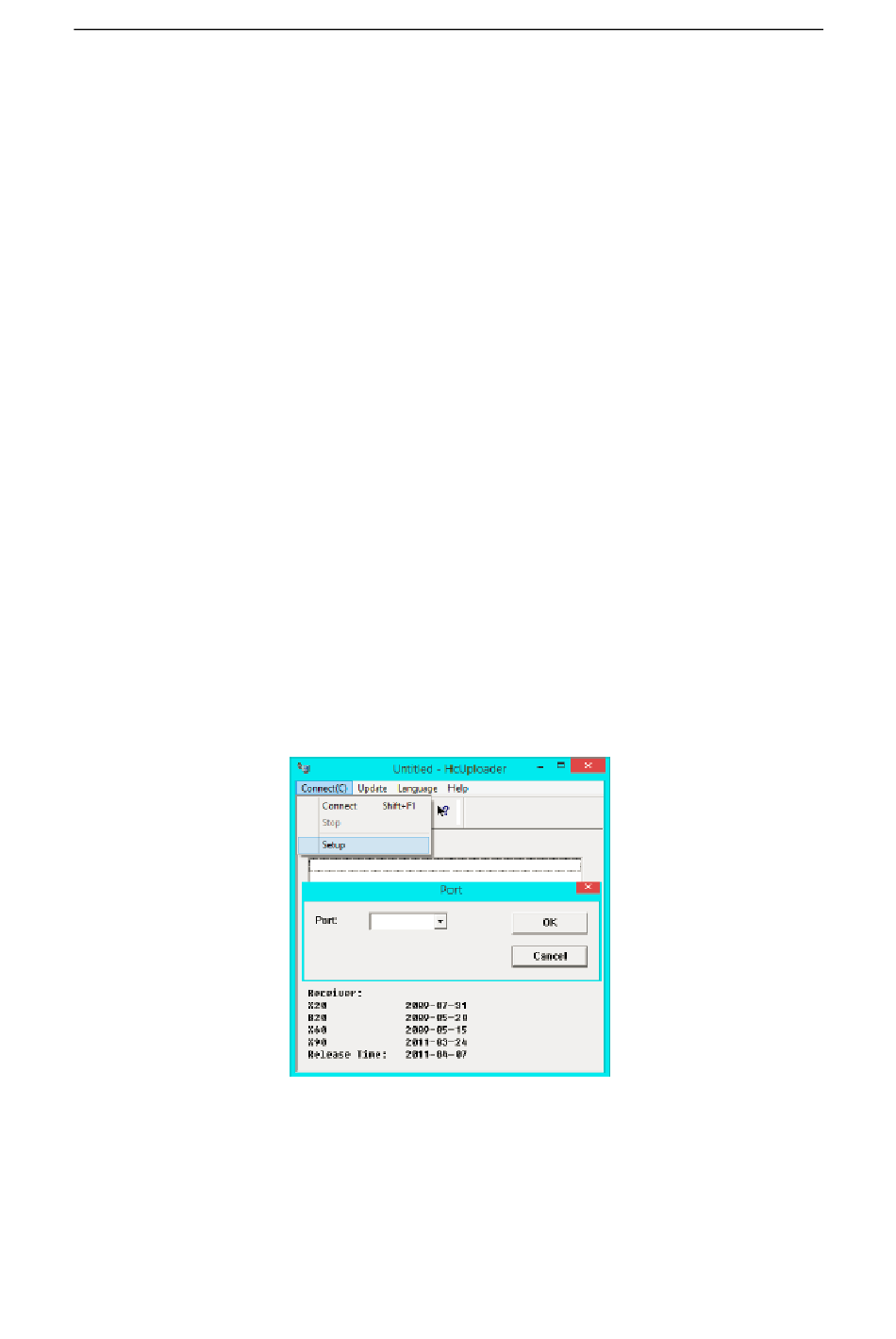

2.6 Firmware Upgrade
(1) Connect the receiver to PC with data cable. Please keep the receiver power off.
(2) Double click the proper firmware file (.exe), go to Connect → Setup, choose the
correct port and click OK. Sometimes you need to run the firmware as
administrator. Find the firmware in PC and double-click on it.
(3) Click Link and then Update. Then please power on the receiver and the uploading
will start automatically.
16
