USER MANUAL: LPC185x – Xplorer++

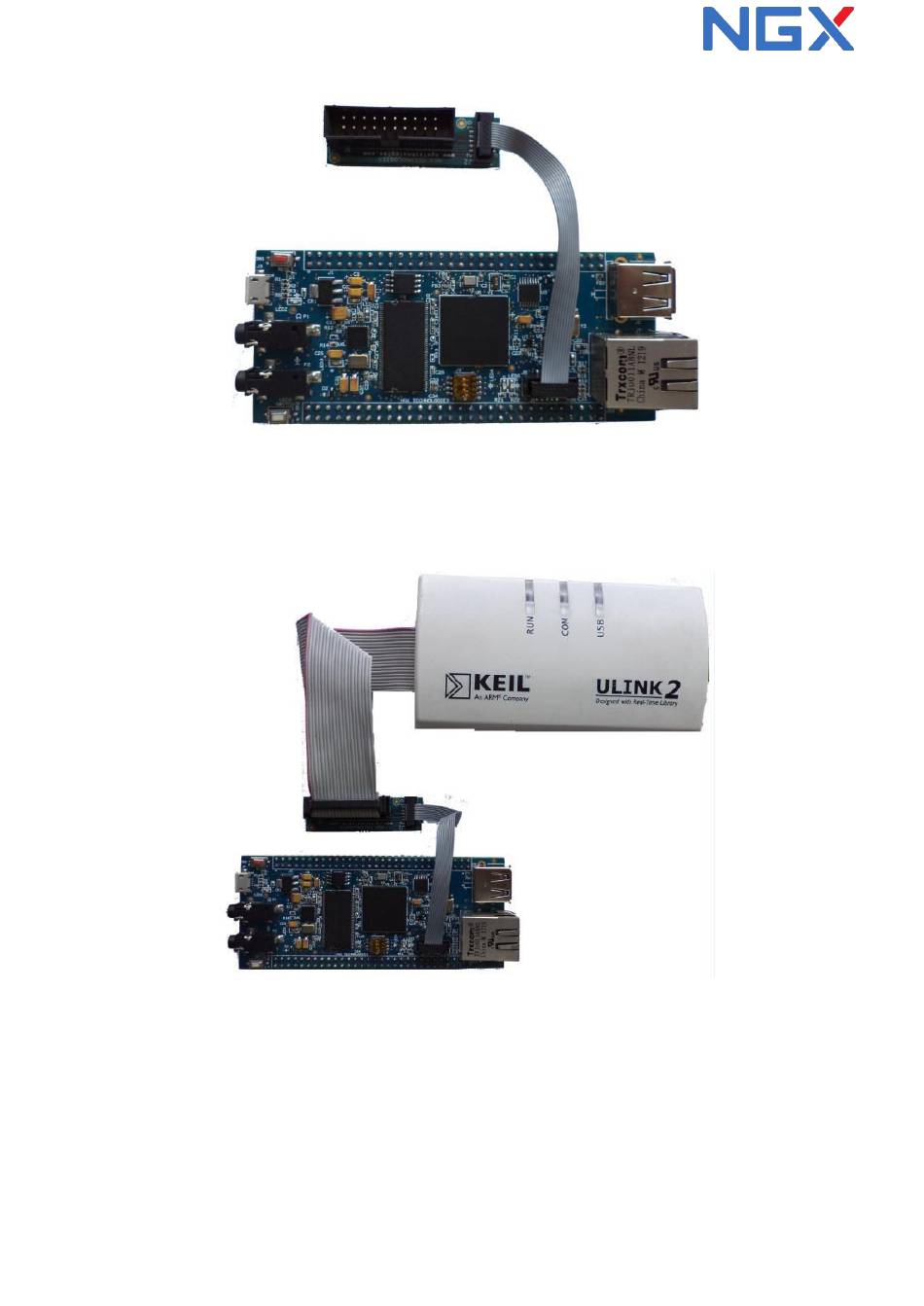

Step 3: Now connect the 'ULINK2 20-pin' cable to '20-pin to 10-pin adapter' as shown in the following
image.
Step 4: Connect one end of 'USB AM to Micro B' cable to LPC185X-Xplorer++ board and other end to
computer, connect one end of 'USB type B' to ULINK2 and other end to computer as shown in the
following image.
Page | 17
Fig.20
Fig.21
