USER MANUAL: LPC185x – Xplorer++

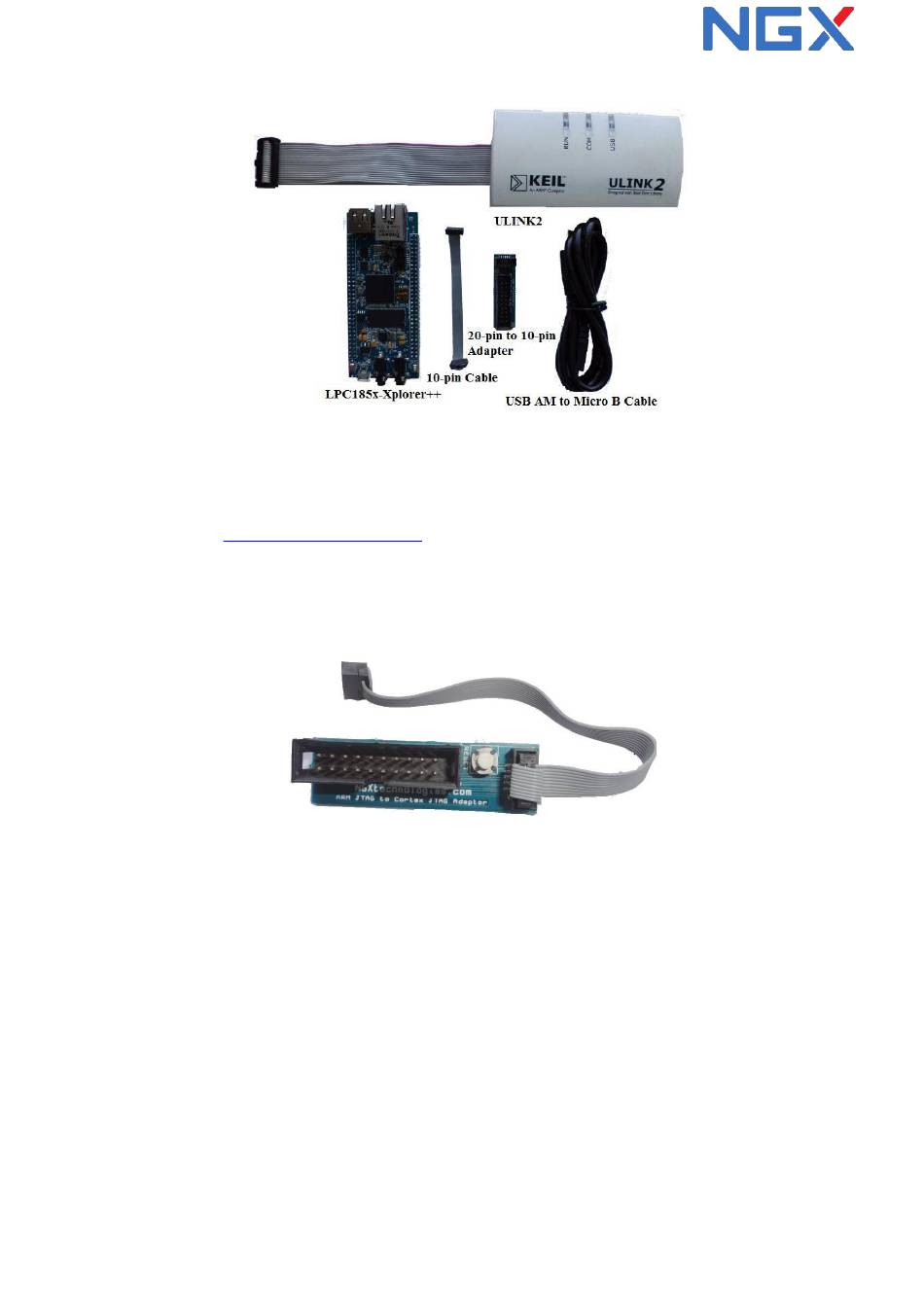

Steps to setup the ULINK2 and LPC185X-Xplorer++ Board:
(Note: Please refer keil knowledgebase article for connecting ULINK2/ME 10-pin ribbon cable to NGX
Xplorer++)
Step 1: Connect the one end of 10-pin ribbon cable to '20-pin to 10-pin adapter' as shown in the following
image.
Step 2: Connect other end of 10-pin ribbon cable to '10-pin box header' of the LPC185X-Xplorer++ board
as shown in the following image.
Page | 16
Fig.18
Fig.19
