OPERATING PROCEDURE

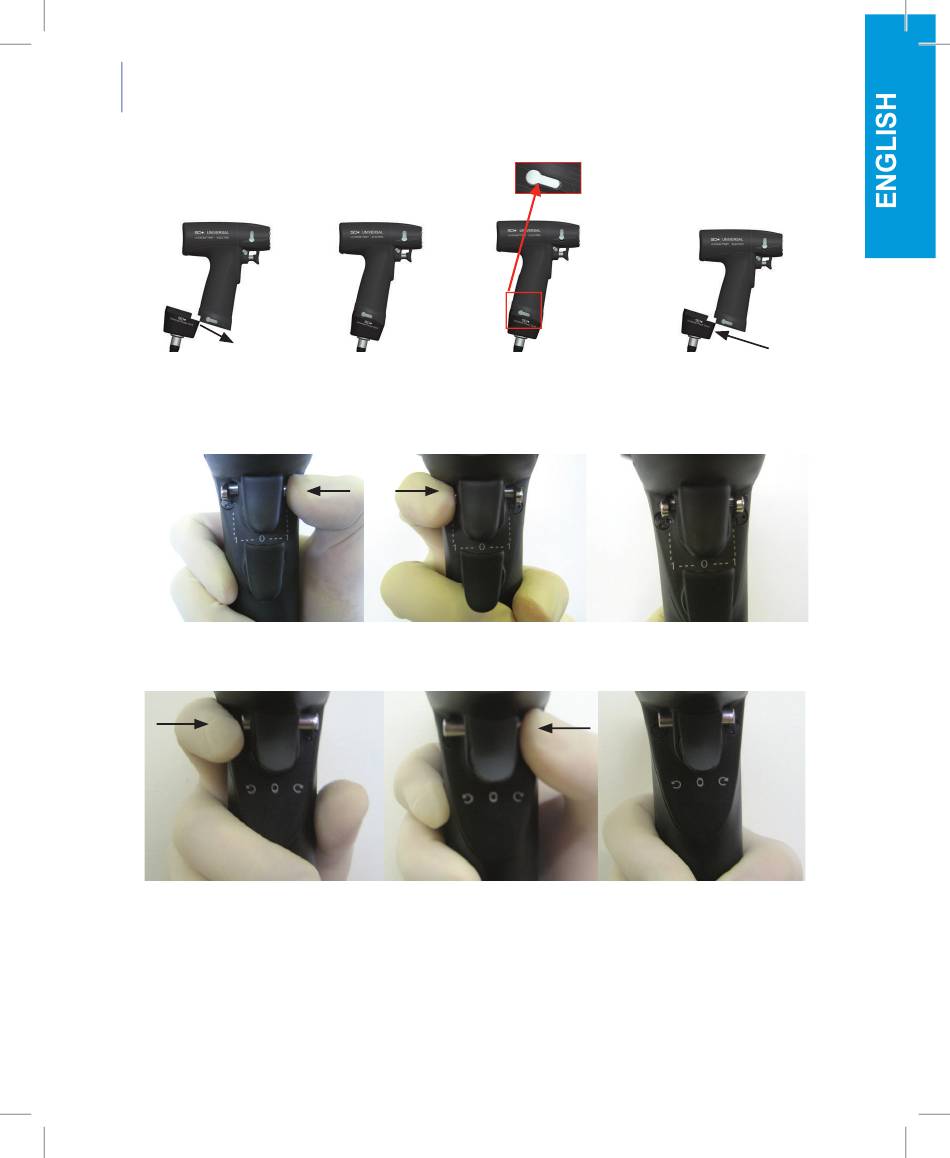

TO CONNECT AND DISCONNECT THE POWER CORD

Assemble until "click" is
heard

TO TURN ON AND OFF THE HANDPIECE

UNIVERSAL Double trigger handpiece (REF 89-8507-400-00)
Position switch to either side
UNIVERSAL Single trigger handpiece (REF 89-8507-400-10)
P
: On (Forward)
Position switch to left
Disconnect pressing both buttons simultaneously
Assembled
1: On
Q
: On (Reverse)
Position switch to right
9
0: Safety position - off Position switch
in center
0: Safety position - off
Position switch in center
