Operation

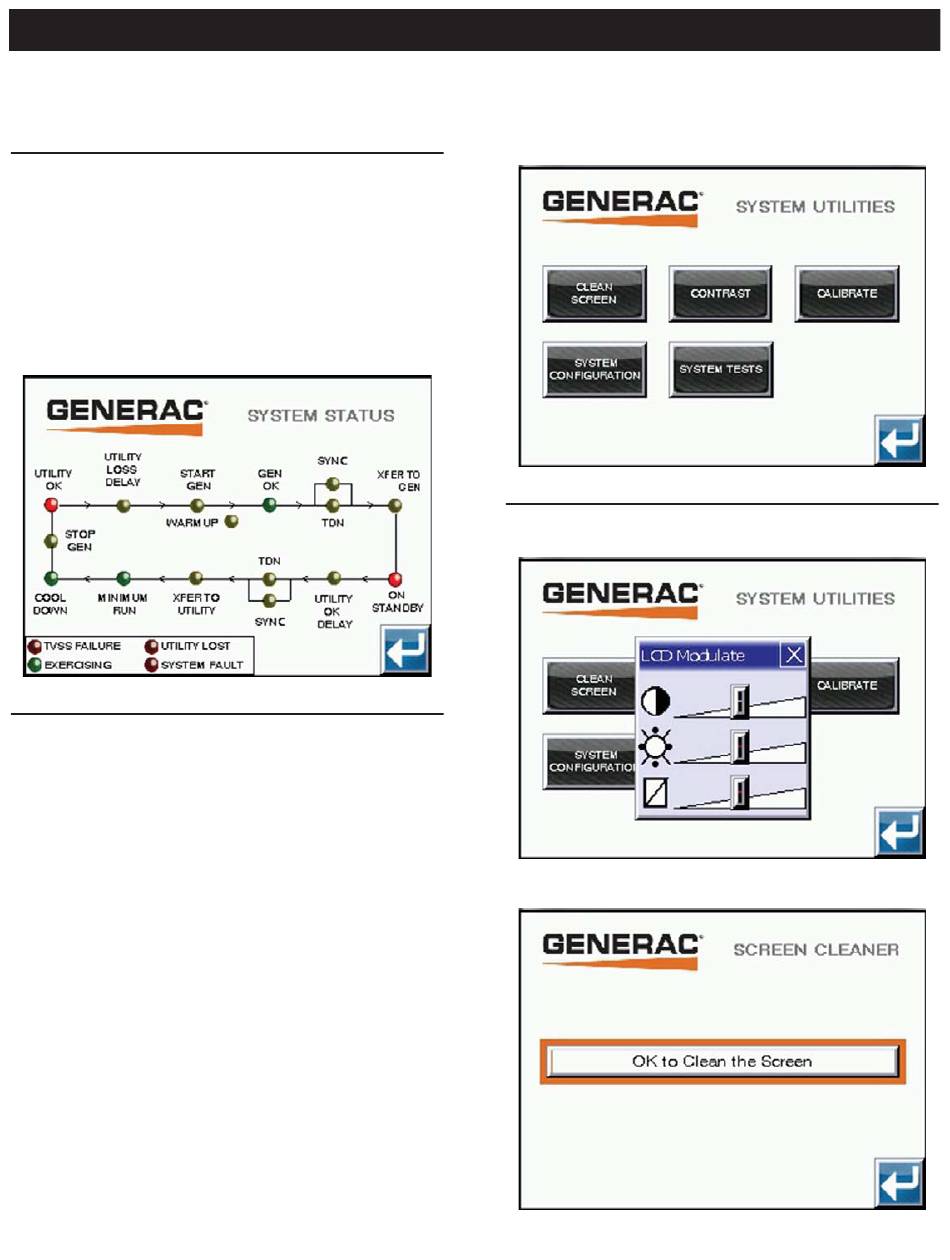

3.10.12 SYSTEM STATUS
Figure 23 - System Utility Menu
The SYSTEM STATUS screen is used to convey what step of the
sequence the transfer switch controller is currently in. This screen
can be used for operation and troubleshooting (Figure 22).
The indicators will change colors to indicate whether the function
they represent is active or inactive. Green or Red for active. Black
for inactive.
To return to the System Configuration menu screen press the
return arrow.
Figure 22 - System Status
3.10.14 SYSTEM UTILITY MENU #2
Figure 24 - System Utility Menu (Contrast Adjust Popup)
3.10.13 SYSTEM UTILITY MENU #1
The SYSTEM UTILITY MENU screen is used to perform the indicat-
ed system functions (Figure 23). Press the the button to perform
the indicated functions.
Clean Screen - Pressing this button will disable the touch screen
for a period of time so that the screen can be wiped off without the
concern of making an unintentional input (Figure 25).
Contrast - Pressing this button will allow the adjustment of the HMI
display screen contrast, brightness and LED gamma. (Figure 24).
Figure 25 - Screen Cleaner
Calibrate - Pressing this button will allow the adjustment of the
HMI display screen contact position to ensure the "touch" initiates
the desired function (Figure 26).
System Configuration - This function is not a customer accessible
function.
System Tests - This function is not a customer accessible func-
tion.
To return to the System Configuration menu screen press the
return arrow. If the HMI is left idle for more than 30 minutes, the
screen saver will be displayed. (Figures 27 and 28).
