Generac Power Systems TTS series Owner's Manual page 15

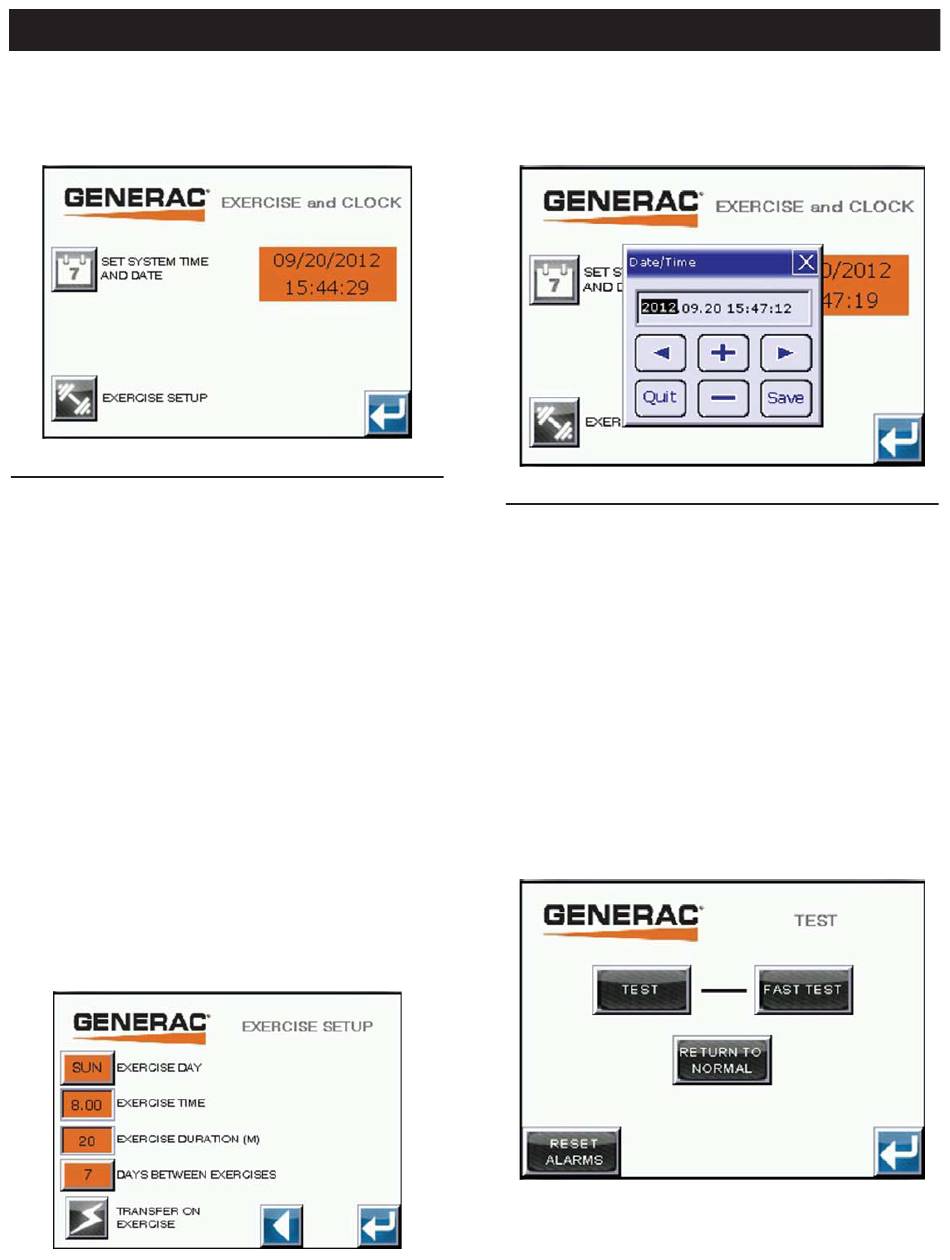

Figure 15 - Exercise and Clock Setup
3.10.7 EXERCISE SETUP
This is the screen to set the exercise function (Figure 16). To
return to the Exercise and Clock setup menu screen press the left
arrow. To return to the System Configuration menu screen press
the return arrow.
Exercise Day - To set the exercise day, press the screen button
to the left of the text. The days of the week will increment one at
a time.
Exercise Time - To set this value, press the screen button to the
left of the text (Figure 17). Using the pop-up box, enter a 24 hour
clock value between 0.00 and 23.59. Press enter to update the
setting.
Exercise Duration - To set this value, press the screen button to
the left of the text. Using the pop-up box, enter the exercise dura-
tion in minutes. Press enter to change the setting.
Days Between Exercises - The choices are 7, 14, or 28 days
between exercise periods. To set the days between exercise
cycles, press the screen button to the left of the text. The value will
toggle between 7, 14 and 28 days.
Transfer on Exercise - The choices are to transfer on exercise or
to not transfer on exercise. To set the transfer on exercise function,
press the screen button to the left of the text. The setting will toggle
between transfer on exercise or to not transfer on exercise.
Figure 16 - Exercise Setup
Figure 17 - Exercise Time
3.10.8 MANUAL TESTS
This screen is used to access the Test functions of the Transfer
Switch controller (Figure 18). To return to the System Configuration
menu screen press the return arrow.
Test Function - To select the normal test function, press the TEST
button. This will initiate the test function with the normal timer
settings (similar to a Utility Fail and restore sequence). The engine
generator will start and warm-up. The transfer switch will transfer
to connect the load to the generator supply. Press it again to return
to normal operation or press the RETURN TO NORMAL button.
Fast Test Function - To select the fast test function, press the FAST
TEST button. This will initiate the test function with all timer set-
tings sped up to less than 2 seconds. The generator will start and
warm-up. The transfer switch will transfer to connect the load to
the generator supply. Five seconds after transferring to the genera-
tor, the transfer switch will transfer back to Utility. The generator
will then shut down.
Figure 18 - Manual Tests
Operation
13
