CHIEF Thinstall TA502 Installation Instructions Manual

In-wall enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

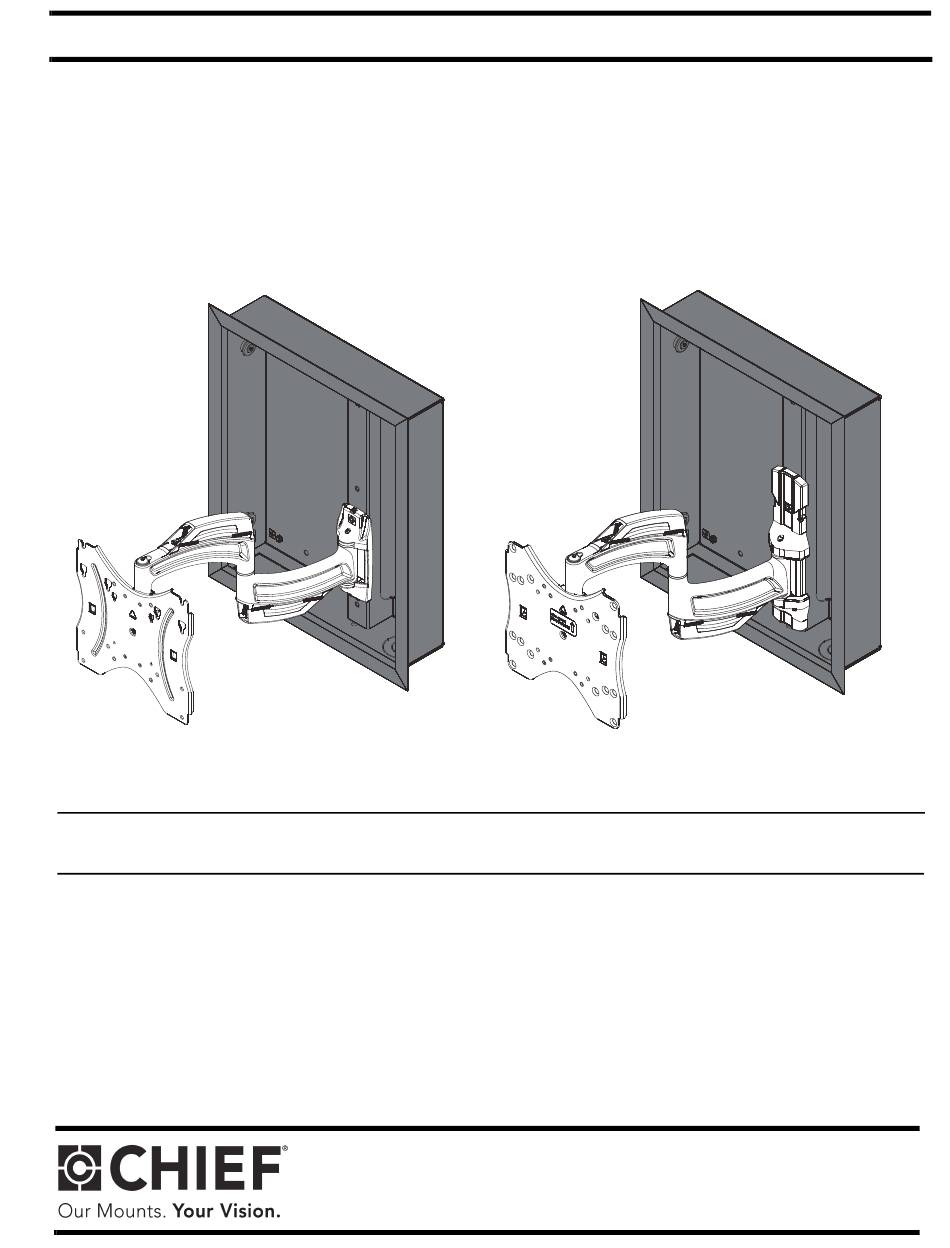

I N S T A L L A T I O N I N S T R U C T I O N S
WITH TS218
WITH TS118
THINSTALL™ IN-WALL ENCLOSURE
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TA502

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thinstall TA502 and is the answer not in the manual?

Questions and answers

Related Manuals for CHIEF Thinstall TA502

Summary of Contents for CHIEF Thinstall TA502

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S WITH TS218 WITH TS118 THINSTALL™ IN-WALL ENCLOSURE Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description...

  • Page 2: Important Safety Instructions

    WARNING: Do not use this product outdoors. no responsibility for accuracy, completeness or sufficiency of the information contained in this document. Chief® is a trademark of Milestone AV Technologies. NOTES: All rights reserved. • It is the installer’s responsibility to ensure that the...
  • Page 3 Installation Instructions TA502 DIMENSIONS GROUNDING 18.85 478.8 GROUNDING TRIM NOT SHOWN (USE THESE DIMENSIONS FOR CUTOUT) NOTES: ELECTRICAL KNOCK OUTS: • SINGLE GANG RACO 590. STEEL CITY CY 1/2, OR SIMILAR STYLE ELECTRICAL BOX. • 1" AND 2" TRADE PIPE CONDUIT. PRODUCT WORKS WITH TS118 AND TS218.

  • Page 4: Dimensions: Inches

    TA502 Installation Instructions DIMENSIONS (continued) 14.25 362.0 SWING ARM SMALL BOX WITH TS118 FULLY RETRACTED MONITOR WILL BE FLUSH WITH WALL FULLY EXTENDED MONITOR WILL BE 16.55 FROM WALL MAX TILT IS 12 DEGREES 14.25 362.0 SWING ARM SMALL BOX WITH TS218 FULLY RETRACTED MONITOR WILL BE FLUSH WITH WALL FULLY EXTENDED MONITOR WILL BE 16.55 FROM WALL MAX TILT IS 12 DEGREES...
  • Page 5 Installation Instructions TA502 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...

  • Page 6: Tools Required For Installation

    TA502 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16" PARTS Grounding screw and washer installed at factory Earthing symbol IEC 60417 No. 5019 affixed adjacent to grounding terminal. B (4) [Mounting spacers] C (4) E (6) M7 x 40mm 08 x 1/2" [Extras if needed for installing electrical box] D (4)

  • Page 7: Installation

    Installation Instructions TA502 INSTALLATION TA502 WARNING: IMPROPER INSTALLATION CAN RESULT CUTOUT AREA DEATH OR SERIOUS PERSONAL INJURY! This accessory should be installed by qualified personnel. Site Preparation Locate and Prepare Mounting Site Identify a suitable wall location for the in-wall enclosure. IMPORTANT ! : The TA502 is designed for in-wall installation between two wood studs, 16"...
  • Page 8 TA502 Installation Instructions In-Wall Enclosure Installation Drill four 3/16" diameter pilot holes in horizontal framing at mounting holes. Install PAC-GB1 Listed electrical box accessory (not included) into the TA502 (A) following instructions included Attach the TA502 (A) to horizontal framing using four M7 x with the PAC-GB1.
  • Page 9 Installation Instructions TA502 TS118/218SU Installation IMPORTANT ! : The TA502 was designed specifically for (TS218SU the TS118SU and TS218SU wall mounts. Do not attempt 1/4" install) to install any other wall mounts with the TA502! Use four 5/16-18 x 1/2" button head cap screws (M) to attach bracket (P) to the TA502 (A).

  • Page 10: Cable Management

    TA502 Installation Instructions Cable Management Attach all cables to display. (TS218SU install) If necessary, use cable tie mounts (H) and cable ties (J) to secure cables within TA502. (N) x 2 TS218SU Figure 11 Complete TS118/218SU installation according to corresponding installation instructions. Trim Kit (Optional) Remove paper covering adhesive and affix three tape squares (K) to inside lower flange of each trim piece (G).
  • Page 11 Installation Instructions TA502...
  • Page 12 A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 / 952.225.6000 F 877.894.6918 / 952.894.6918 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands Chief, a products division of P +31 (0) 495 580 852 Milestone AV Technologies F +31 (0) 495 580 845 Asia Pacific A Office No.
