Summary of Contents for Northern IP4WIR30

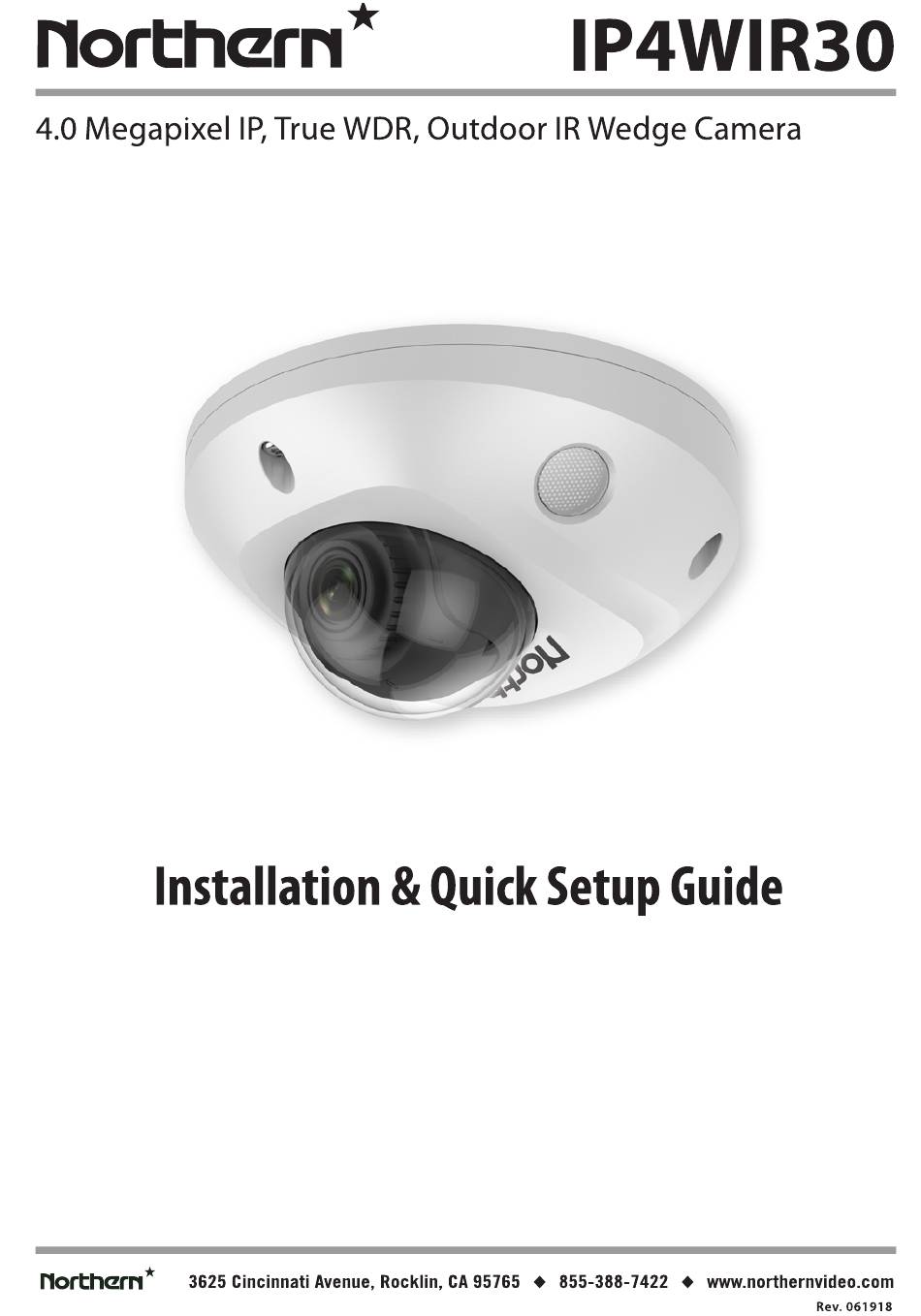

- Page 2 IP4WIR30 IP Mini Dome Camera · Quick Start Guide About this Manual This Manual is applicable to IP4WIR30 Network Cameras. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 IP4WIR30 IP Mini Dome Camera · Quick Start Guide 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply...
- Page 5 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 6 IP4WIR30 IP Mini Dome Camera · Quick Start Guide according to the IEC60950-1 standard. Please refer to technical specifications for detailed information. ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.
- Page 7 IP4WIR30 IP Mini Dome Camera · Quick Start Guide ● The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
-
Page 8: Table Of Contents
IP4WIR30 IP Mini Dome Camera · Quick Start Guide Table of Contents 1 Appearance Description ..............8 Overview of IP4WIR30 Mini Dome Camera ..... 8 2 Installation ..................11 IP4WIR30 Mini Dome Camera Installation..... 12 2.1.1 Ceiling Mounting ..........12 2.1.2 Install the Micro SD Card ........ -
Page 9: Appearance Description

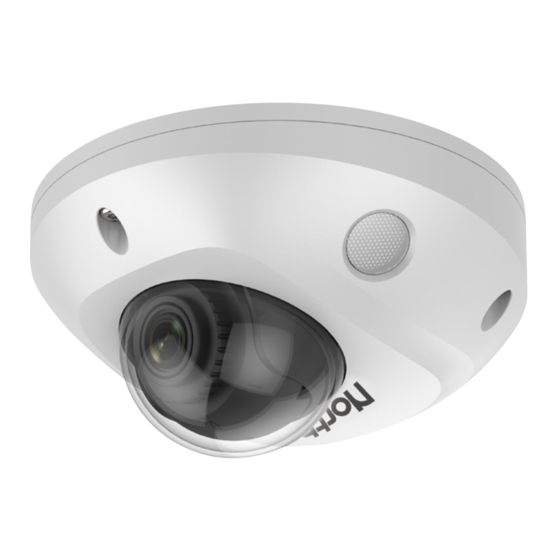

IP4WIR30 IP Mini Dome Camera · Quick Start Guide 1 Appearance Description Overview of IP4WIR30 Mini Dome Camera Figure 1-1 Overview of IP4WIR30 Mini Dome Camera... - Page 10 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Table 1-1 Description of IP4WIR30 Mini Dome Camera Description Front Cover Lens Sphere Microphone Reset SD Card Slot Audio Cables Alarm Cables Power Ethernet Port IR LED To reset the camera to default status you first need to remove power from the camera.
- Page 11 Audio Connector on the camera. To insure both audio and video are recorded when connecting to a Northern NVR, make sure to select “Video & Audio” as the Stream Type in the Recording Parameter Menu on...
-
Page 12: Installation
IP4WIR30 IP Mini Dome Camera · Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● If not using POE, the standard power supply is 12V DC, please make sure your power supply matches with your camera. -
Page 13: Ip4Wir30 Mini Dome Camera Installation
IP4WIR30 IP Mini Dome Camera · Quick Start Guide IP4WIR30 Mini Dome Camera Installation 2.1.1 Ceiling Mounting Steps: 1. Drill the screw holes and the cable hole in the ceiling according to the supplied drill template. Drill Template Hole A:for cables routed through the ceiling... - Page 14 IP4WIR30 IP Mini Dome Camera · Quick Start Guide 2. Loosen the set screw on the front cover to disassemble the camera with the supplied Allen key. Figure 2-2 Disassemble the Camera 3. Hammer the plugs of the expansion screws to the screw holes.
- Page 15 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Figure 2-4 Fix the Camera Body 7. View the image via the web browser. 8. Slightly loosen the screw beside the WPS/RESET button to adjust the surveillance angle. 9. Adjust the pan [±30°], tilt [0~80°], and rotation direction [0~360°].
- Page 16 IP4WIR30 IP Mini Dome Camera · Quick Start Guide 10. Tighten the hex screw to fix the well-adjusted surveillance angle. 11. Align the front cover to the dome drive and tighten the set screws on the front cover. Figure 2-6 Install the Front Cover 12.
-
Page 17: Install The Micro Sd Card
IP4WIR30 IP Mini Dome Camera · Quick Start Guide 2.1.2 Install the Micro SD Card This series of camera supports local storage, please refer to the following steps to install the micro SD card. Steps: 1. Remove the front cover by loosening the set screws on it. -
Page 18: Install The Water-Proof Jacket
IP4WIR30 IP Mini Dome Camera · Quick Start Guide Install the Water-proof Jacket It is recommended to adopt the water-proof jacket (supplied) for the network interface when the camera is installed outdoor. Steps: 1. If the network cable has been settled down, cut off the plug of the network cable first. -
Page 19: Setting The Network Camera Over The Lan
IP4WIR30 IP Mini Dome Camera · Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 20: Activating The Camera
IP4WIR30 IP Mini Dome Camera · Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. -
Page 21: Activation Via Sadp Software
IP4WIR30 IP Mini Dome Camera · Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including... - Page 22 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera, please refer to the User Manual of Network Camera for other two activation methods.
-
Page 23: Modifying The Ip Address
IP4WIR30 IP Mini Dome Camera · Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 24 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Steps: 1. Run the SADP software. 2. Select an activate device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.
- Page 25 IP4WIR30 IP Mini Dome Camera · Quick Start Guide Note: You can enable the Guarding Vision service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification.
-
Page 26: Accessing Via Web Browser
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 27 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 28: Operating Via Guarding Vision App
5 Operating via Guarding Vision App Purpose: Guarding Vision is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so on. Note: Guarding Vision service is not supported by certain camera models. Enable Guarding Vision on Camera Purpose: Guarding Vision service should be enabled on your camera before... -
Page 29: Enable Guarding Vision Via Web Browser
Service” “Privacy Policy” Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Guarding Vision app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 5.1.2 Enable Guarding Vision via Web Browser Before you start: You need to activate the camera before enabling the service. - Page 30 Steps: 1. Access the camera through web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Guarding Vision dev.guardingvision.com Figure 5-2 Platform Access Configuration (Web) 3. Select Platform Access Mode as Guarding Vision. 4.
-
Page 31: Guarding Vision Setup
Guarding Vision Setup Steps: 1. Download and install the Guarding Vision app by searching “Guarding Vision” in App Store or Google Play 2. Launch the app and register for a Guarding Vision user account. 3. Log in Guarding Vision app after registration. Adding Camera to Guarding Vision Before you start: You need to enable the Guarding Vision service on camera before... - Page 32 You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
-
Page 33: Initializing The Memory Card
Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
