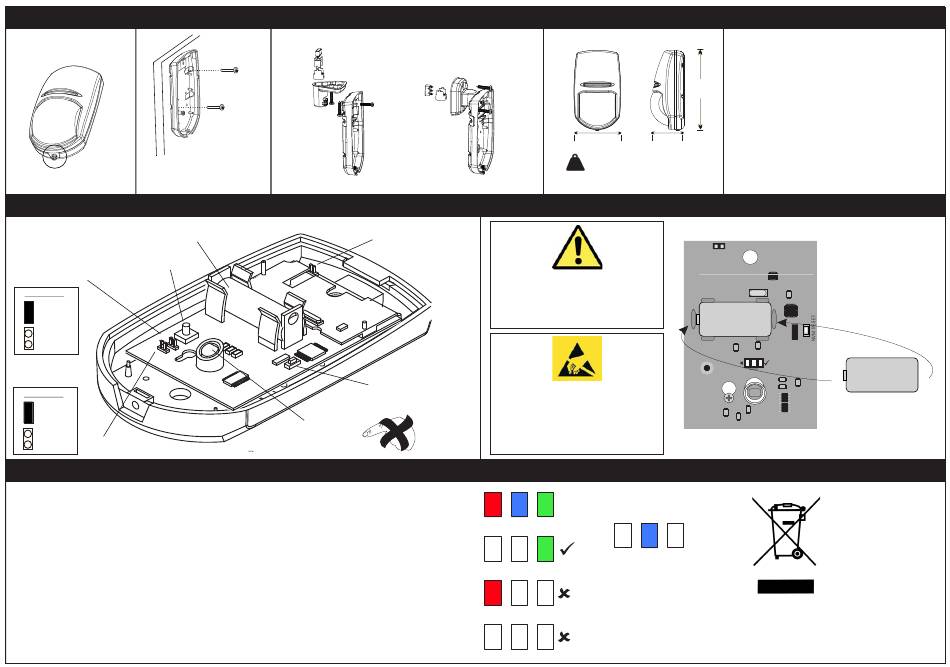

Pyronix KX15DC-WE Manual page 2

Installation Wall Mounting
CASE LID
SCREW FITTING
NOTE: When mounting the
detector, ensure that it is
not tilting backwards.
The KX15DC-WE Printed Circuit Board
Battery
Tamper Spring
Alarm LED ON/OFF
ALARM LED
Header On
LED ON
Header Off
LED OFF
DIGITAL SIGNAL
PROCESSING SELECT
SENSITIVITY
Header On
= HIGH)
Header Off
Sensitivity Settings
= LOW
Learning the KX15DC-WE onto the Enforcer 32-WE Control Panel
When you are ready to learn the device to the
control panel receiving equipment, and when the
equipment is in the learn mode follow the
procedure below:
1. Make sure the battery is installed correctly
and the plastic wrapping removed.
2. Press and Hold the Learn button until the
3 LEDs start cycling through the different
colours, then release the Learn button.
3. The device is correctly learnt when the
Green LED flashes.
Optional Bracket Fitting
Ceiling
Part number: FPKXBRACKET
Header for Rear Tamper
+
-
Learn Button
Piro Sensor
DO NOT TOUCH
The three coloured LEDs give a
visual indication of the signal
strength.
Green indicates good signal strength
and is a good location to install.
Red indicates poor signal
strength and the device should not
be installed in that position.
If no LED illuminates then the device
is completely out of range.
Dimensions
Wall
3mm
(0.12")
69mm
(2.72")
Kg = 105g (3.4 oz) without bracket
The batteries supplied have been chosen to
provide long service life whilst, for safety
reasons, having limited output current.
Replace only with approved batteries.
To prevent possible damage to components,
any static charge on your body needs to be
eliminated before touching the inside of the
unit. This can be accomplished by touching
some grounded/earthed metallic conductor
such as a radiator/pipework immediately
before replacing the batteries.
The blue LED will illuminate when
the device is activated.
RED BLUE GREEN
RED
RED BLUE GREEN
RED BLUE GREEN
Please see the Enforcer 32-WE user, programming and quick set
up manuals for further information
RED BLUE GREEN
Avoiding False Alarms
1. Avoid placing the detector in direct sunlight.
2. Do not let pets and other animals wander
freely whilst the alarm system is armed.
117mm
3. Do not mount the detector near heaters or
(4.61")
radiators.
4. Do not mount the detector near open
windows or air vents.
5. Mount the detector on a stable surface.
50mm
(2.2")
6. Do not partially or completely obscure the
detectors field of vision with large objects.
Changing The Battery
REAR TAMPER
CR123A
-
+
LITHIUM
BATTERY
BLUE GREEN
When disposing of the
product, the battery must be
removed and disposed of
separately in accordance
with the local regulations
CR123A
-
+
LITHIUM
BATTERY
For electrical products sold
within the European
Community. At the end of the
electrical products life, it
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your Local
Authority or retailer for
recycling advice in your
country.
RINS1586-2
