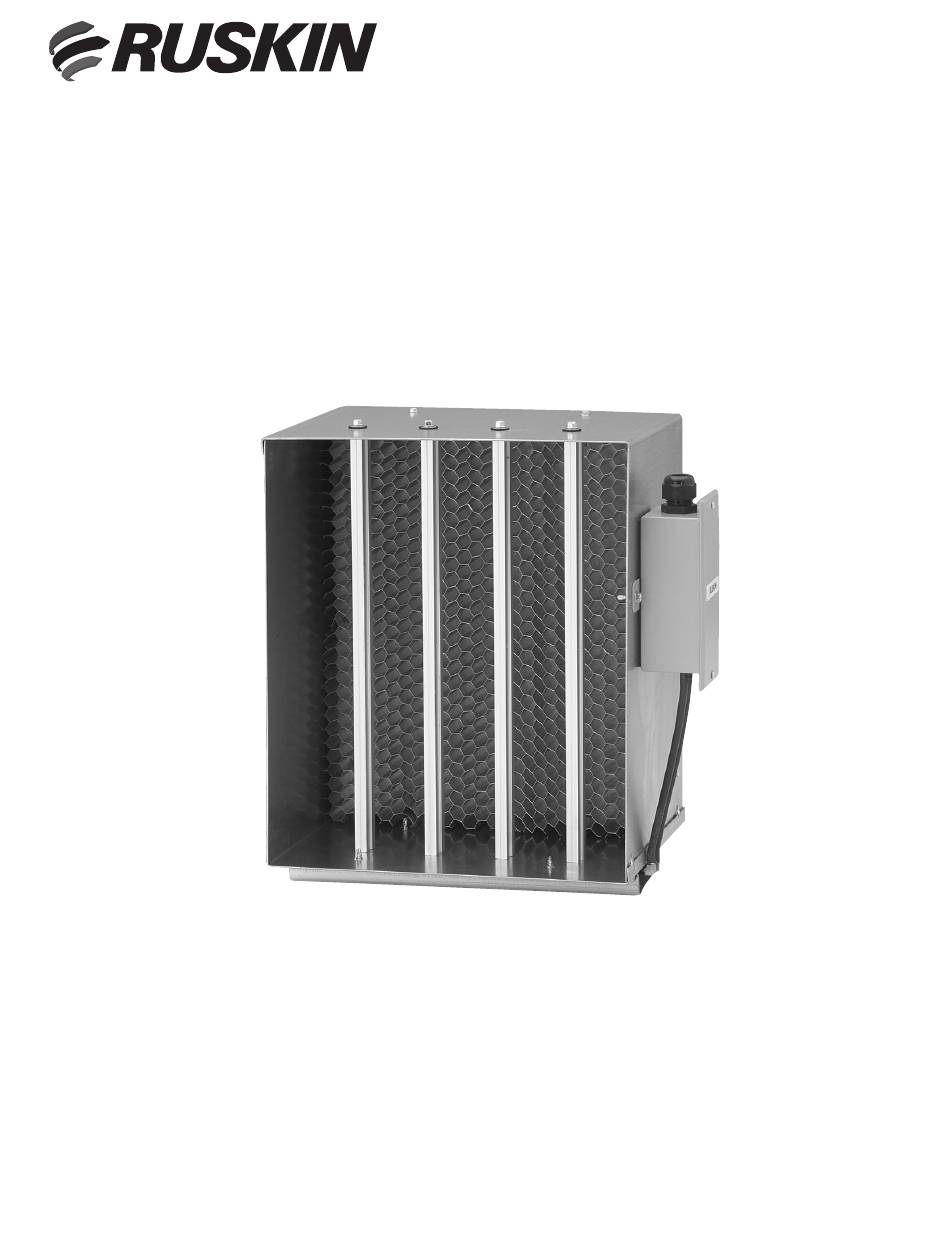

- Page 1 Air Quality Solutions Installation & Maintenance Manual Model: AMS Air Measuring Station II-AMS-818/New © Ruskin August 2018 ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE OR OBLIGATION...

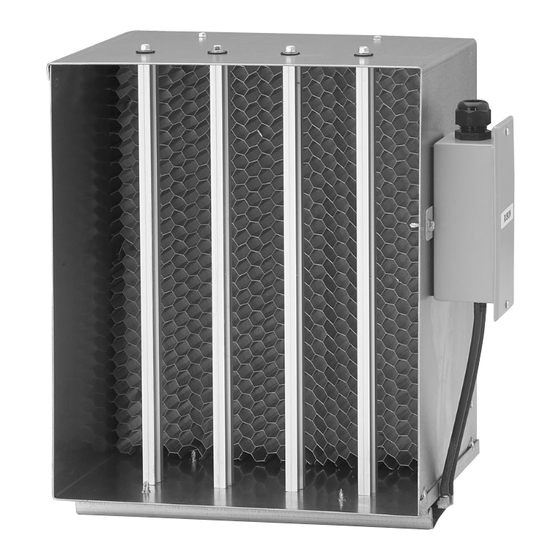

- Page 2 Product Application The Air Measuring Station (AMS) is designed to be used in any application that requires accurate airflow measurement at velocities between 300 and 5,000 feet per minute (1.5 and 25 m/s). Unit may be installed in the duct or in an air handling unit and can be used to measure outside air, return air, discharge air or exhaust air flows into or out of a building or air handling unit.
- Page 3 Remove the AMS from its shipping container and inspect for damage, rust or corrosion. Care must be taken in NOTE: Pressure transducer may be removed and relocated during handling the unit. Always handle the AMS by its frame. Do not drop, drag, step on or apply excessive bending, installation. Orientation is critical. Refer to Installation Instructions.
- Page 5 To determine the placement of an air measuring station that is located down stream of a 90º vaned elbow (as shown in the detail E1 above); follow the duct width down to the duct height. The number at this intersection represents distance in inches (1D).
-
Page 6: Sequence Of Operation
CFM value. Each unit is provided with a PAMS chart developed specifically for that unit. Applying other formulas may result in greater air measurement error and unacceptable results. CfM=(AReA * Ka) * PAMS (l/m) SOLD TO: Ruskin Customer CONTROL NO: 1234567 TAG: Unit 1 MODEL: AMS Actual Damper Size (inches) 3047.4... - Page 7 Standard RU-274-R2-VDC Transducer Dip Switch Settings and Wiring Details Standard RU-274-R2-VDC Transducer Dip Switch Settings and Wiring Details Standard RU-274-R2-VDC Transducer Dip Switch Settings and Wiring The Default Settings for S1, S2, and S3 are, 1-ON, 2-OFF The Default Settings for S1, S2, and S3 are, 1-ON, 2-OFF The Default Settings for S1, S2, and S3 are, 1-ON, 2-OFF For other settings and pressure ranges see table below, or consult transducer product data sheet For other settings and pressure ranges consult transducer product data sheet...
-
Page 8: Specifications
Disconnect the sensing tubes between the damper and the pressure transducer. Apply a clean pressurized air source, less than 10 PSI, to the air piping connections at the AMS frame in order to blow out any condensation or dirt accumulation plugging the sensing ports. Do noT connect this air source to the pressure transducer.
