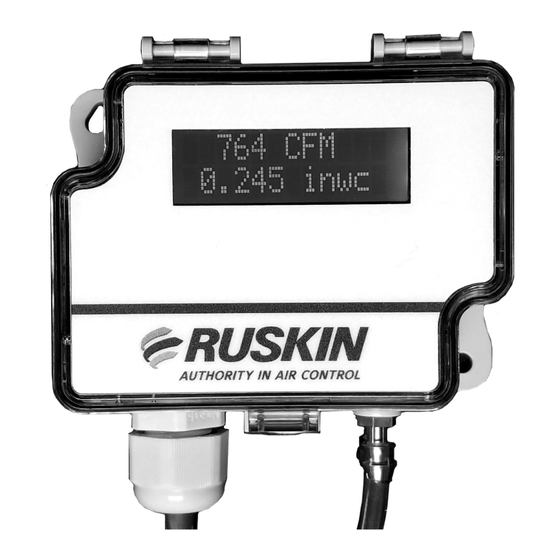

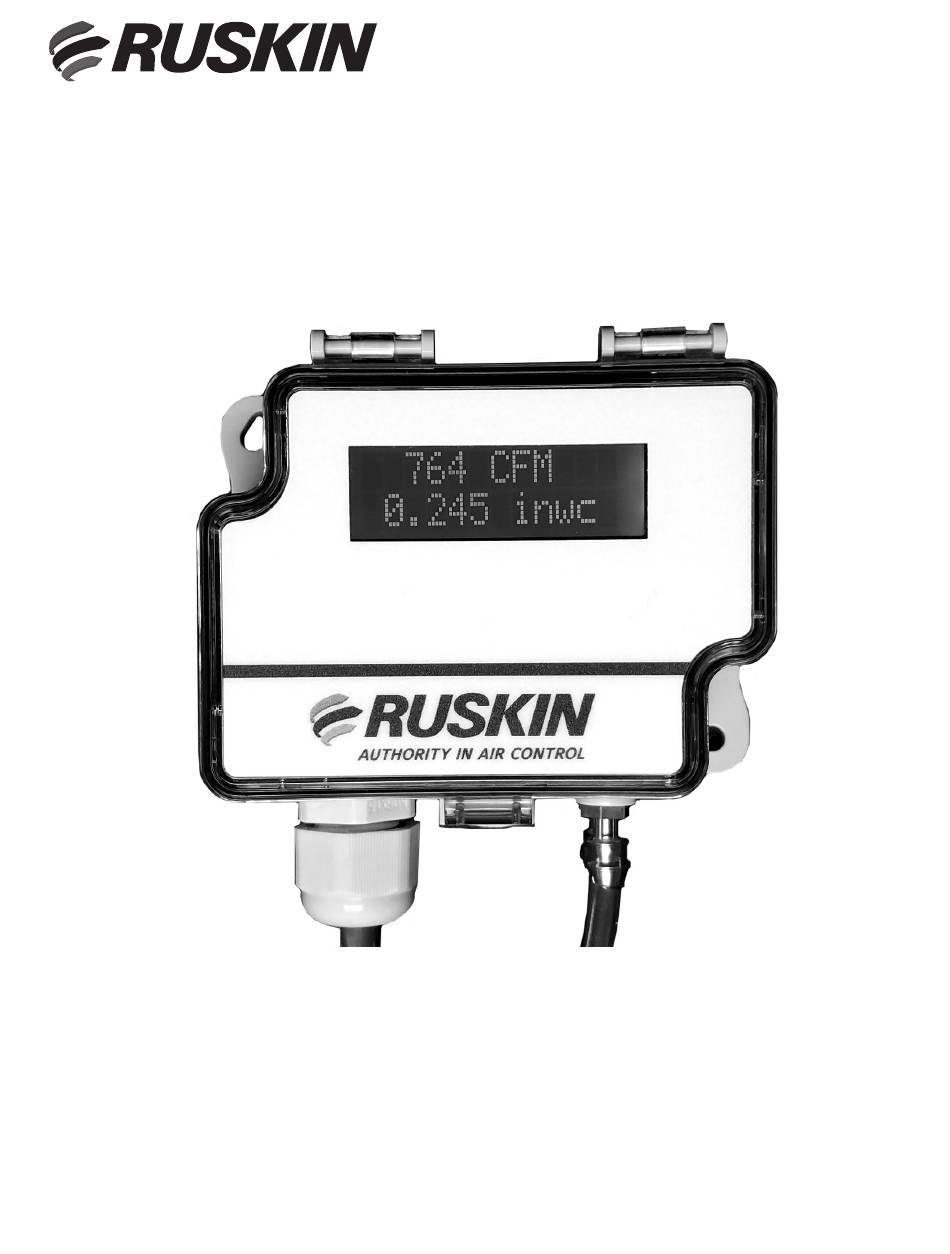

- Page 1 Air Quality Solutions Installation & Maintenance Manual Model: DPT-IQ Flow Meter with Backlit Display II-DPT-IQ-818/Replaces II-DPT-IQ-315 ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE OR OBLIGATION © Ruskin August 2018...
- Page 2 AND/OR EXPLOSION DO NOT USE IN POTENTIALLY FLAMMABLE OR EXPLOSIVE ATMOSPHERES. Primary application The Flow Meter (DPT-IQ) measures airflow, velocity and differential pressure. It is designed to be used in combination with any Ruskin velocity pressure air measuring probe (AMP series), air measuring louver (AML series), or air measuring station (AMS series &...
-
Page 3: Installation Instructions
2) Use the device as a template and mark the screw holes, then drill holes. WARNING! Apply power after the device is properly 3) Mount with appropriate screws (not included) wired. Figure 3a - surface Mounting Figure 3B strain Relief RUsKIn DPT-IQ FloW MeTeR WITH BaCKlIT DIsPlaY InsTallaTIon InsTRUCTIons... - Page 4 ConFIGURaTIon MenU. selection convention used to input information into DPT-IQ Entering information into the DPT-IQ is accomplished with three (3) Menu buttons (see Figure 3B). The Menu buttons are labeled as follows: Button 1: SELECT. Pressing down or tilting button 1 serves two functions: A.
-
Page 5: Configuration 4
100Pa Min to 1000Pa Max - 50Pa increments EXAMPLE: The DPT-IQ has a capable range of 0 – 4.0 inwc. If pressure readings are expected below 1.00 inwc, adjust the Pressure Output Maximum to 1.00 inwc, to improve resolution. The DPT-IQ can have the Pressure Output Maximum set between 0.1 –... -
Page 6: Operation
1) The device requires 24VDC/VAC power at terminals 24V & GND. 2) With no air flowing through the AMS and power applied to the controller, the DPT-IQ will generate a Vout 0V or 0mA signal between Vout and GND. -
Page 7: Specifications
Digit LCD 1.81" x 0.57" (46 x 14.5mm) MeDIa CoMPaTIBIlITY enClosURe Dry air or non-aggressive gases ABS (UL94 V-1) NEMA 3 3.54" x 3.74" x 1.4" (90.0 x 95.0 x 36.0 mm) RUsKIn DPT-IQ FloW MeTeR WITH BaCKlIT DIsPlaY InsTallaTIon InsTRUCTIons... - Page 8 3900 Dr. Greaves Rd. 3900 Dr. Greaves Rd. ® ® Kansas City, MO 64030 Kansas City, MO 64030 (816) 761-7476 (816) 761-7476 FAX (816) 765-8955 FAX (816) 765-8955 www.ruskin.com www.ruskin.com...
