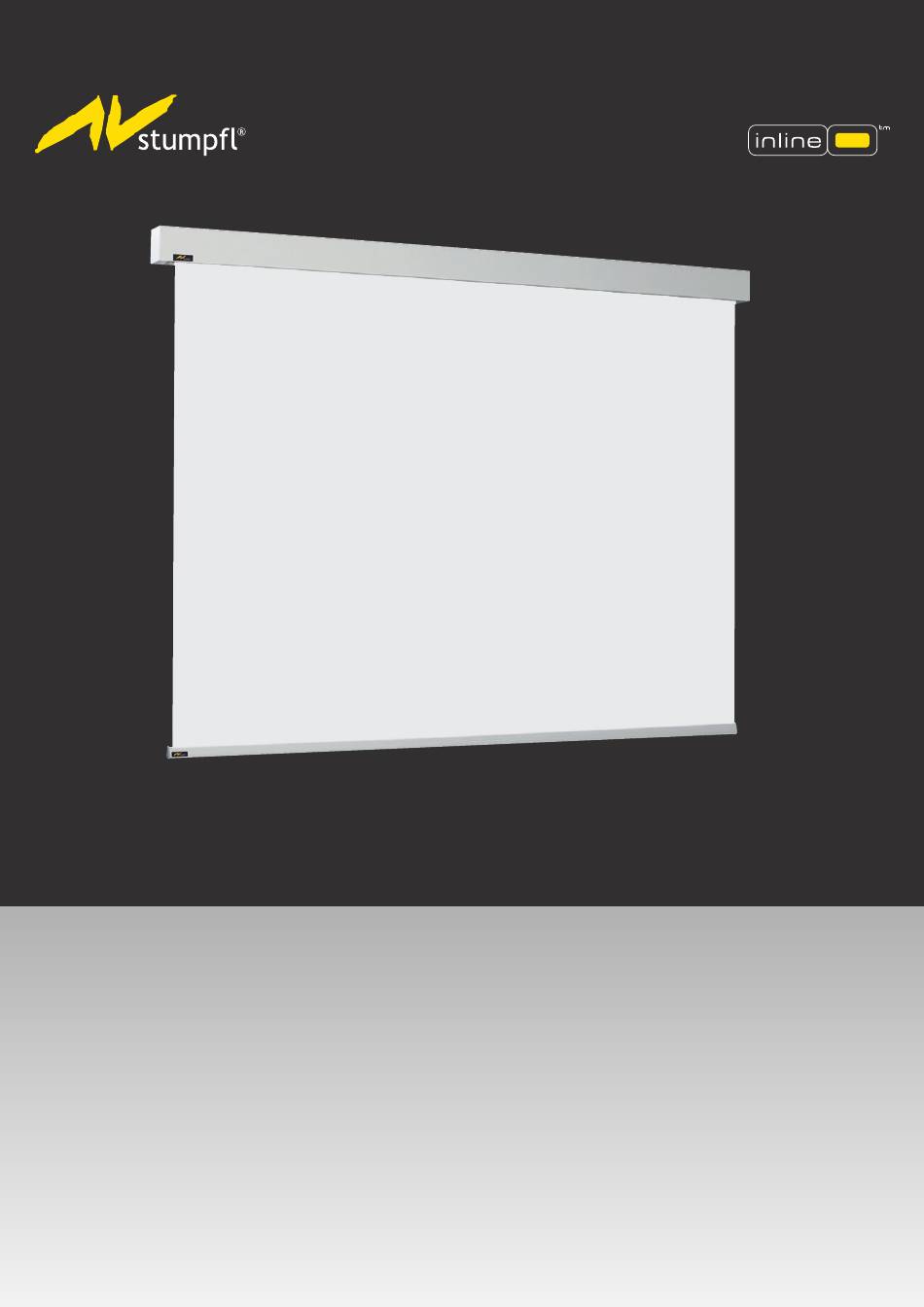

- Page 1 inline high functionality attractive optical appearance fixed installation seminar room hotel museum theater home cinema show room ENGLISH...
- Page 2 customization noiseless motor-drive high precision roll-up tubing premium quality casings surfaces for the high theatrical and environmental standards sizes up to 500x400 cm possible Inline High functionality, attractive optical appearance as standard size or tailor-made A top-quality, stationary projection screen must meet a number of criteria. The projected images must be large, brilliant and effective. Out of use, the screen should be invisible.
- Page 3 Mounting solutions Wall- or ceiling mounting for Standard mounting bracket QuickMount QuickMount bracket for wall - or ceiling Standard mounting bracket for wall- or ceiling for INLINE 90, INLINE 125 mounting for INLINE 160. mounting. Locking and securing easily accessible from bottom side. Ceiling integration casing for The recessed box can be pre-installed Service-assembly of roll-up screen at the...
- Page 4 Video masking according customers request. All casings available with special RAL vernish. www.AVstumpfl.com/INLINE AV Stumpfl GmbH I A 4702 Wallern I Mitterweg 46 AVstu I www.AVstumpfl.com tel.: +43 (0) 7249 / 42811 I fax: +43 (0) 7249 / 42811-4 Edition 2012-01 We reserve the right to make modifications in the interest of technical progress.
- Page 5 Surface group PLANA: example PLANA ECO JM * non-warping base material * surface density: ~ 280 g/m² * thickness: ~ 0,31 mm * gain: 1,00 * light proof: 100% * fire resistance: B1 Casing motor drive crank drive spring roller dimensions gross Art.-Nr.
- Page 6 Surface group STRATO: example STRATO CF * fibre glass non-woven * non-warping base material * surface density: ~ 1400 g/m² * thickness: ~ 0,95 mm * gain: 1,02 * light proof: 100% Casing motor drive crank drive dimension gross Art.-Nr. Art.-Nr.
