AV Stumpfl INLINE 90 Manual

Roll up screens. inline series
Hide thumbs Also See for INLINE 90:
Table of Contents

Advertisement

Quick Links

Download this manual

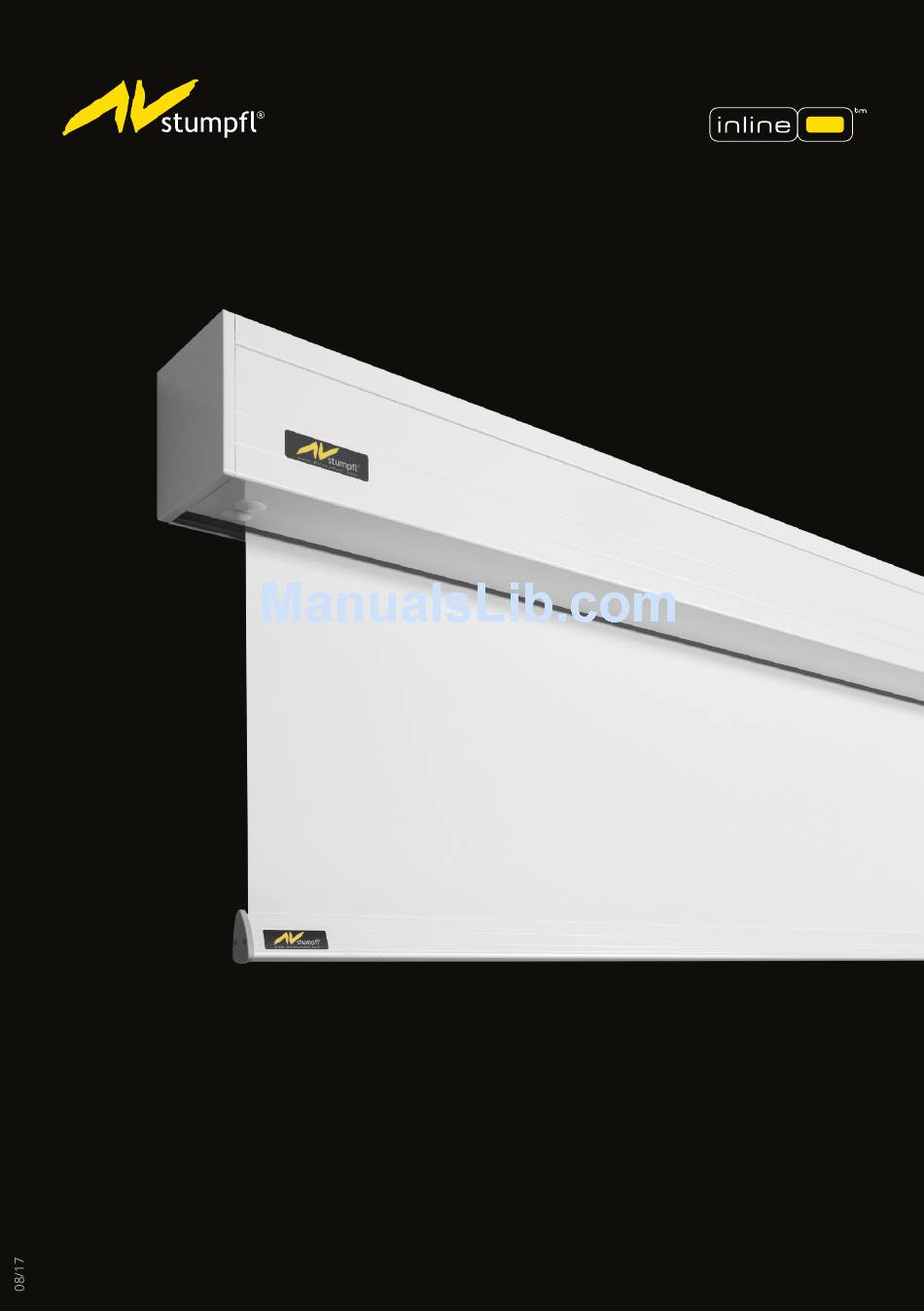

INLINE
MANUAL FOR ROLL UP SCREENS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INLINE 90 and is the answer not in the manual?

Questions and answers

Related Manuals for AV Stumpfl INLINE 90

Summary of Contents for AV Stumpfl INLINE 90

  • Page 1 INLINE MANUAL FOR ROLL UP SCREENS...
  • Page 2 DIRECTORY GENERAL INFORMATION SAFETY INSTRUCTIONS METHODS OF INSTALLATION QuickMount-Brackets Mounting Plate Universal-Mounting Brackets Wall/Ceiling Brackets Wall Brackets Ceiling Brackets CEILING CASE for ceiling integration CEILING CASE with mounting set Projection screen for ceiling Integration Mounting set for suspended ceiling ELECTRICAL INSTALLATION STOP POSITION ADJUSTMENT Motor left/ fabric back and motor right/fabric front Motor left/ fabric front and motor right/fabric back...
  • Page 3 GENERAL ROLL-UP PROJECTION SCREEN INLINE Roll-up screen INLINE is a permanently installed projection screen consisting of a roll-up tube that is attached to a drive system (asynchronous tube motor) on one side and pivoted on the opposite. The drive and the bearing are mounted on lateral metal plates, which are mechanically connected to a two-part screen casing made of aluminum sheet (protective casing).

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS TRANSPORT - MOUNTING The roll-up screen must be secured during transport and assembly in accordance with the total weight. During lifting work, no person must remain in the danger zone below the suspended load (roll-up screen)! The load must be distributed evenly and secured against falling! The total weight is displayed on the roll-up screen type plate or on the packaging.
  • Page 5 FIRST-TIME OPERATION When starting the roll-up screen for the first time secure the immediate area of the screen and its movement range. During first-time operation the screen should be moved in steps only. When there are signs of danger or danger situations roll-up screen operation must be stopped immediately. During the test run the operator must always have full and direct sight of the roll-up screen.
  • Page 6 MAINTENANCE Drives, bearings and other rotating parts of the roll-up screen are permanently lubricated and are maintenance-free. The roll-up screen must be protected from soiling. Maintenance and repair work must only be carried out be authorized experts. SAFETY INSPECTION INLINE roll-up screens must undergo annual visual inspection and control run. An annual safety inspection is not mandatory In case of visible damage or unusual noises during the operation the roll-up screen must immediately be taken out of service.

  • Page 7: Quickmount-Brackets

    QUICKMOUNT-BRACKETS INLINE 090 and INLINE 125 come with QuickMount brackets, as a standard. The two QuickMount brackets can be attached either to the wall or to the ceiling. Use four screws which are appropriate to the weight of the screen and the quality of the wall.
  • Page 8 SYSTEM COMPONENTS The QuickMount bracket consists of following main components: • QuickMount bracket (grey) • Hook profi le (red) • Locking screw (yellow) (sketch showing hook profi le in locking position) FUNCTIONAL PRINCIPLE The screen casing is hooked onto the hook profi le (red), which can be moved upwards by the locking screw (yellow) to secure the mounting.
  • Page 9 The screen casing (blue) has to be hang up at the rear recess onto the hook profile (red). QuickMount bracket (white) QuickMount sliding hookprofile (red) Screen casing (blue) Locking screw (yellow) The casing must be lifted towards the upper horizontal part of the QuickMount bracket by turning the locking screw clockwise, until the safety wedge of the bracket fits into the upper T-slot in the casing.

  • Page 10: Mounting Plate

    MOUNTING PLATE INLINE 090 and INLINE 125 can be optionally delivered with mounting plates for ceiling mounting The two mounting plates and the distance elements have to be attached at either sides of the screencasing with the 2 enclosed countersunk screws and the square nuts M5. (see sketches below) If necessary, the distance element can be rotated 180 °...

  • Page 11: Universal-Mounting Brackets

    UNIVERSAL MOUNTING BRACKETS INLINE 160 is delivered with universal mounting brackets, as a standard. (optional for INLINE 090 and INLINE 125) The two mounting brackets have to be attached at either sides of the screen casing with the 4 en- closed Phillips screws.

  • Page 12: Wall/Ceiling Brackets

    WALL / CEILING BRACKETS The INLINE-wall/ceiling bracket can be used for wall or ceiling mounting because of its horizontal and vertical mounting option. Available for INLINE 160 (optional for INLINE 090 and INLINE 125) The two wall/ceiling brackets have to be attached at either sides of the screen casing with the 4 en- closed Phillips screws.

  • Page 13: Wall Brackets

    WALL BRACKETS The INLINE-WALL BRACKETS can be placed at any point on the case. Continuous T-slots on the top provide maximum flexibility of mounting. Available for INLINE 090 and INLINE 125. WALL MOUNTING Each of the two INLINE-WALL BRACKETS have to be attached at the screen casing with the 2 enclosed Phillips screws and 2 square nuts M5 for the T-slots.

  • Page 14: Ceiling Brackets

    CEILING BRACKETS The INLINE-CEILING BRACKETS can be placed at any point on the case. Continuous T-slots on the top provide maximum flexibility of mounting. Available for INLINE 090 and INLINE 125. CEILING MOUNTING Each of the two INLINE-CEILING BRACKETS have to be attached at the screen casing with the 4 enclosed Phillips screws and 4 square nuts M5 for the T-slots.

  • Page 15: Ceiling Case For Ceiling Integration

    CEILING CASE FOR CEILING INTEGRATION CEILING CASE without MOUNTING SET The CEILING CASE can be pre-installed during building works and the screen installation can be done after building works are completed. Mounting without thread rods, the case is screwed directly to the concrete ceiling at the connecting plates (red). (see figure) The installation height is only 92mm! CEILING CASE with MOUNTING SET...
  • Page 16 CEILING CASE with MOUNTING SET 1-2: Parallel and aligned mounting of the two ceiling plates with four screws each. (maximum distance = fabric width) Please choose screws which are suitable for the weight of the CEILING CASE with the roll-up screen and for the wall characteristics.
  • Page 17 6-8: The CEILING CASE is to be adjusted to the intended level of the suspended ceiling by four safety nuts M5. Therefor make use of the delivered tubular spanner. Important information for the installation of the suspended ceiling: It must be ensured that the CEILING CASE is not compressed, to allow the subsequent installation of the roll-up screen.
  • Page 18 Roll-Up screens in Quick-Mount version have to be adapted to fit into the CEILING CASE.(10-12). 1.Detach the lateral case covers (10). 2. Attach the mounting brackets on both side panels as shown on picture (11). 3.Two flat head screws have to be screwed to each side panel acccording to the sketch, to enable the attachment of the lateral clip brackets (11).

  • Page 19: Projection Screen For Ceiling Integration

    PROJECTION SCREEN FOR CEILING INTEGRATION No additional access for servicing needed! The projection screen can be easily dismount- mounting bracket ed by taking off the clip covers and detaching the connection at the mounting brackets. clip bracket MOUNTING SET for SUSPENDED CEILING mounting plate counter nut thread rod...
  • Page 20 MOUNTING SET for SUSPENDED CEILING 1. MOUNTING PLATES The mounting plates have to be fixed according to the hole pattern of the projection screen´s mounting brackets. (see sketch) Lochabstand Montagewinkel Spacing of the mounting brackets 2. THREAD RODS Screw in the thread rods and shorten them according to the sketch.
  • Page 21 5. CLIP BRACKET Final work will be to close the two lateral gaps with the clip brackets. Clipswinkel Clip bracket RECESS FOR SUSPENDED CEILINGS Gesamtlänge - Y overall length - Y INLINE 130mm 105mm 16mm Ausnehmung / recess 165mm 140mm 24mm 220mm 180mm 30mm...

  • Page 22: Electrical Installation

    ELECTRICAL INSTALLATION ELECTRIC SUPPLY 230VAC 50Hz. Line circuit breaker 10 A. Motor cable 4x0,75mm² The electrical installation has to be done by an authorized electrical enterprise. Please hand over this information and the wiring regulati- ons, enclosed to each motor and switch or control unit, to the respon- sible electrician.
  • Page 23 STOP POSITION ADJUSTMENT LOSS of WARRANTY The projection screen is properly adjusted at factory and the adjusting screws are sealed. Changing of the minimum or maximum final position is not necessary. Important: Any damage caused by the adjustment of final positions is not covered by warranty. Note: Should it be necessary to adjust the final positions by applicational reasons, only skilled per- sonnel is allowed to do so.

  • Page 24: Motor Left/ Fabric Back And Motor Right/Fabric Front

    STOP POSITION ADJUSTMENT MOTOR LEFT/ FABRIC BACK AND MOTOR RIGHT/FABRIC FRONT ADJUSTING THE LOWER STOP POINT MAX OF THE TUBE MOTOR Remove the round cover cap at the bottom of the screen casing (see Fig. MAX). IN ORDER TO MOVE THE STOP POINT MAX UP YOU NEED TO TURN THE WHITE SET SCREW TO THE RIGHT (CLOCKWISE) (SEE FIG.

  • Page 25: Motor Left/ Fabric Front And Motor Right/Fabric Back

    STOP POSITION ADJUSTMENT MOTOR LEFT/ FABRIC FRONT AND MOTOR RIGHT/FABRIC BACK ADJUSTMENT OF THE FINAL POSITION MAX: Remove the round cover cap at the bottom of the screen casing (see Fig. MAX). IN ORDER TO MOVE THE STOP POINT MAX UP YOU NEED TO TURN THE YELLOW SET SCREW TO THE RIGHT (CLOCKWISE) (SEE FIG.

  • Page 26: Accessories

    ACCESSORIES CONTROL OF ONE MOTOR BRZ-S-SW-INIS-UNO: Wall switch, for controlling a motor drive; Surface mounted and flush mounted (UP-STOP-DOWN) BRZ-S-SW-KEY-UPAP Key switch, for controlling a motor drive; Surface mounted and flush mounted (UP-STOP-DOWN) MEDIA CONTROL (DRY CONTACT) BRZ-S-MC-SMO-UNO-IB: Motor control unit for flush mounting with integrated switch, 2 intermediate positions programmable BRZ-S-MC-CD1X1N: Motor control unit, with dry contacts and with safety insert to...
  • Page 27 ACCESSORIES RADIO CONTROL SOMFY RADIO CONTROL-SET (BRZ-S-RC-SET-SMO-ORI): consisting of radio receiver Centralis Indoor RTS for flush mounting and remote control Smoove 1 Origin RTS for wall mounting. SOMFY RADIO CONTROL-SET (BRZ-S-RC-SET-TELIS1): Consisting of radio receiver Centralis Indoor RTS for flush mounting And remote control Telis 1.

  • Page 28: Crank Mechanism

    MANUAL ROLL-UP SCREENS CRANK MECHANISM Do not unwind beyond the STOP-limit! Do not pull the bottom bar into the casing ! AUF / UP AB / DOWN SPRING-ROLLER MECHANISM WITH SOFT-REWIND Do not pull down the fabric beyond the STOP-mark! There is a risk of the projection screen material is ripped off the winding tube or the soft rewind mechanism being locked permanently and irreparable damage being caused.

  • Page 29: Tensioning Unit

    1 Unscrew the two Phillips screws and remove the end caps. Behind these end caps you will find the central set-screw. 2 Turning this screw clockwise increases the tensile stress. 3 Turning the screw counter-clockwise reduces the tensile stress.. AV Stumpfl GmbH | Mitterweg 46 | 4702 Wallern AVstumpfl@AVstumpfl.com | www.AVstumpfl.com | +43 7249 42811...
