AV Stumpfl VARIOCLIP Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
VARIOCLIP
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the VARIOCLIP and is the answer not in the manual?

Questions and answers

Related Manuals for AV Stumpfl VARIOCLIP

Summary of Contents for AV Stumpfl VARIOCLIP

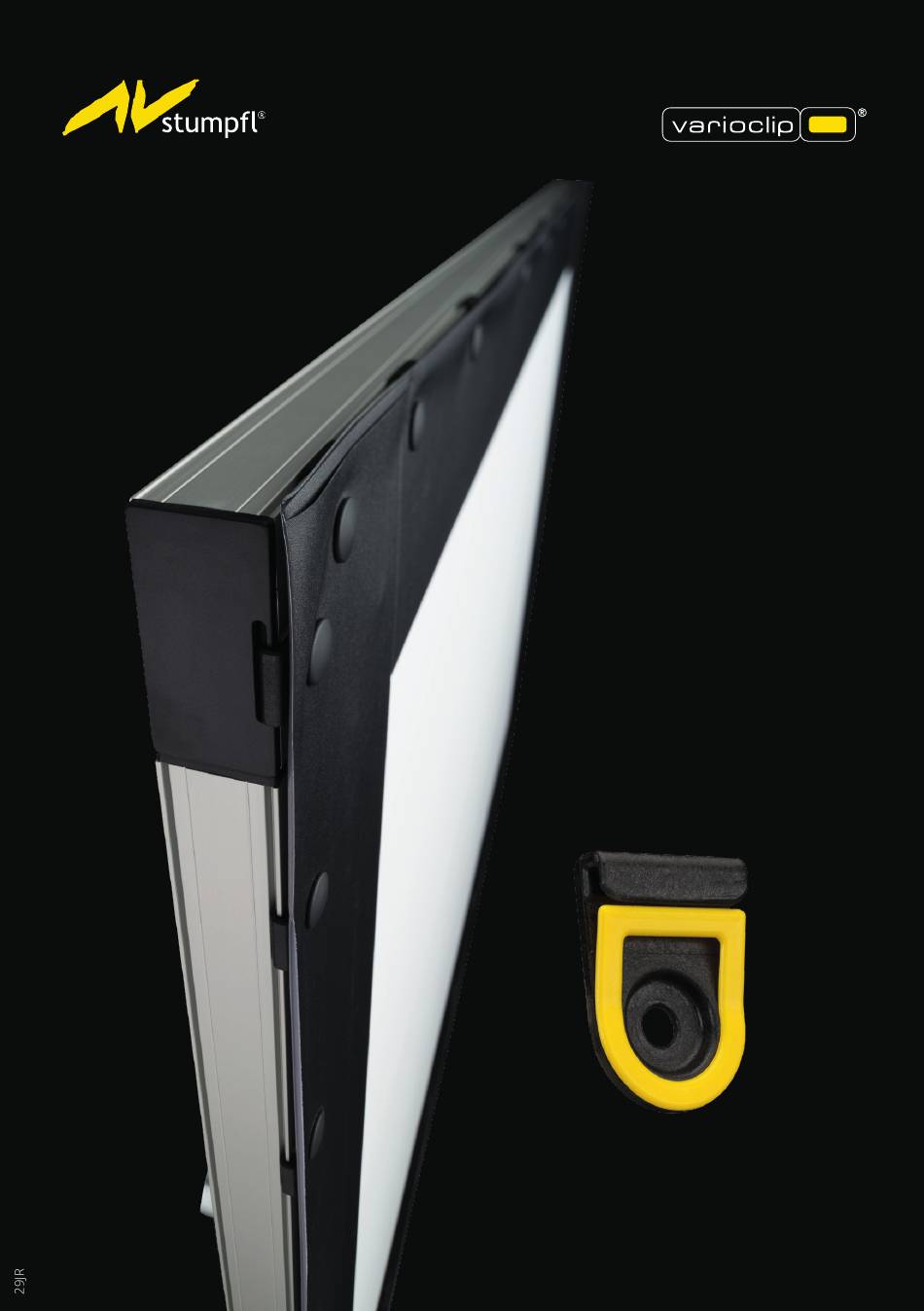

  • Page 1 VARIOCLIP MANUAL...
  • Page 2 CENTRE SUPPORT Consists of plug in elements with interlocking and safety bolts. Adaptable to any frame size. FOLDABLE LEGS Standard delivery AT32/64. According to the size of the projection screen five different leg types are available. WING SCREWS Yellow bag for wing screws and leg connectors. PROJECTION SCREEN BAG Lined storage bag for projection screen...
  • Page 3 SOFTBAG WITH WHEELS padded , tearproof nylonbag with wheels and carrying straps small 128x25x30 cm big 133x31x35 cm FRAME VARIOCLIP Modular plug-in frame system Basic frame (4 corners 210x210 cm or 210x160 cm) folded, standard and supplementary frame components Hardened aluminum alloy guarantees highest stability at lowest product weight.
  • Page 4 GENERAL QUALITY AND SAFETY: This projection screen is in accordance with the safety regulations in DIN standard 19045 and DIN 56950- 40. Thescreen fabric is comply with DIN 4102 part 1 and the specifications of the according data sheet. For the technical details and projection-specific material parameters please refer to the corresponding product data sheet.

  • Page 5: Frame Set Up

    VARIOCLIP FRAME COMPONENTS FRAME SET UP All components of the mobile projection screen are labeled. For assembly, start with the basic frame. Unfold the corner elements 1 to 4. Do not engage the shear joints now and lay out the components according to their labeling. The standard elements 5 (110cm) and supplementary frame components 6 (below 110cm) have to be inserted according to their labeling (see sketch above).

  • Page 6: Connection Types

    CONNECTION TYPES Depending on the application and screen size three different connection types are available for VARIOCLIP VARIOCLIP The quick and easy plug-in connection for small to medium sizes when installed with legs. VARIOCLIP LOCK The plug-in connection with additional locking for larger screens and/or “flying- screen“ mounting.
  • Page 7 VARIOCLIP and VARIOCLIP LOCK are supplied with one middle strut and middle leg from a width of 700cm. At very high projection screens in addition to the center supports a horizontal strut is fitted. Please...
  • Page 8 FOLDABLE LEGS FOR VERTICAL ADJUSTMENT The legs are foldable for compact transport volume. All profile elements are connected with snap joints or hinges inseparable. MOUNTING 1 First open the vertical elements of the legs (with holes) 2-3 The snap joints engage automatically. 4 To secure the legs by a single person, we recommend the use of set up supports.

  • Page 9: Leg Types

    LEG TYPES T 32 AT 32 AT 32/64 AT 48 AT 64 220 cm 320 cm 430 cm 415 cm 550 cm min: 6cm min: 6cm min: 9cm min: 9cm min: 9cm max: 82cm max: 113cm max: 146cm max: 161cm max: 176cm Please mind the maximum set-up height of the legs: min: minimum height of the bottom edge of the frame...
  • Page 10 PROJECTION SURFACE In projection system VARIOCLIP the projection surface is equipped with the patented QUICKCLIP instead of snap fasteners. (see picture right). SURFACE MOUNTING 1 Lay out the surface on the frame with the label „OBEN-TOP“ corresponding with the upper frame bar.
  • Page 11 SET UP 1 Lift the projection screen with one person at each of the top corners and put it up by supporting the screen along the vertical frame elements. To avoid mechanical overload and damage of the screen elements and legs with large screens or high set-up height, the screen has to be raised with an appropriate number of persons or rather by using hoisting devices.
  • Page 12 BREAK DOWN Open the shear joints and telescopic leg supports with one person next to each of the foldable legs. Bring down the screen by supporting the screen along the legs and vertical frame elements towards the top corner edges. BREAK DOWN NOTE 1 To detach the projection surface you have to remove the QUICKCLIP on one vertical and one...
  • Page 13 EASYFLY SUSPENSION CLAMP WITH EYEBOLT This adapters for Varioclip can be attached quickly and easily at any point. The eyebolt fixes the adapter to the profile, offering professional hanging possibilities. Available for profile sizes 32x32mm...

  • Page 14: Flight Case

    SET UP SUPPORT The optional available, set up support allows an easy mounting of the legs. By means of the 4 round bar holders the wings screws can be bolted by one person only without holding the frame and leg in position. FLIGHT CASE As an option we offer sturdy, stackable transport cases with rollers for all mobile projection screens.
