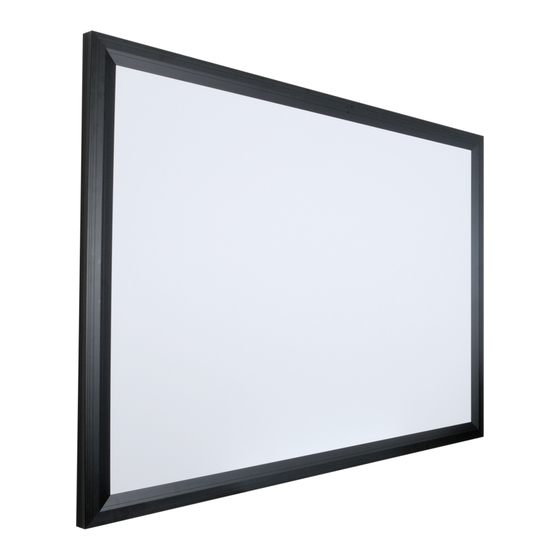

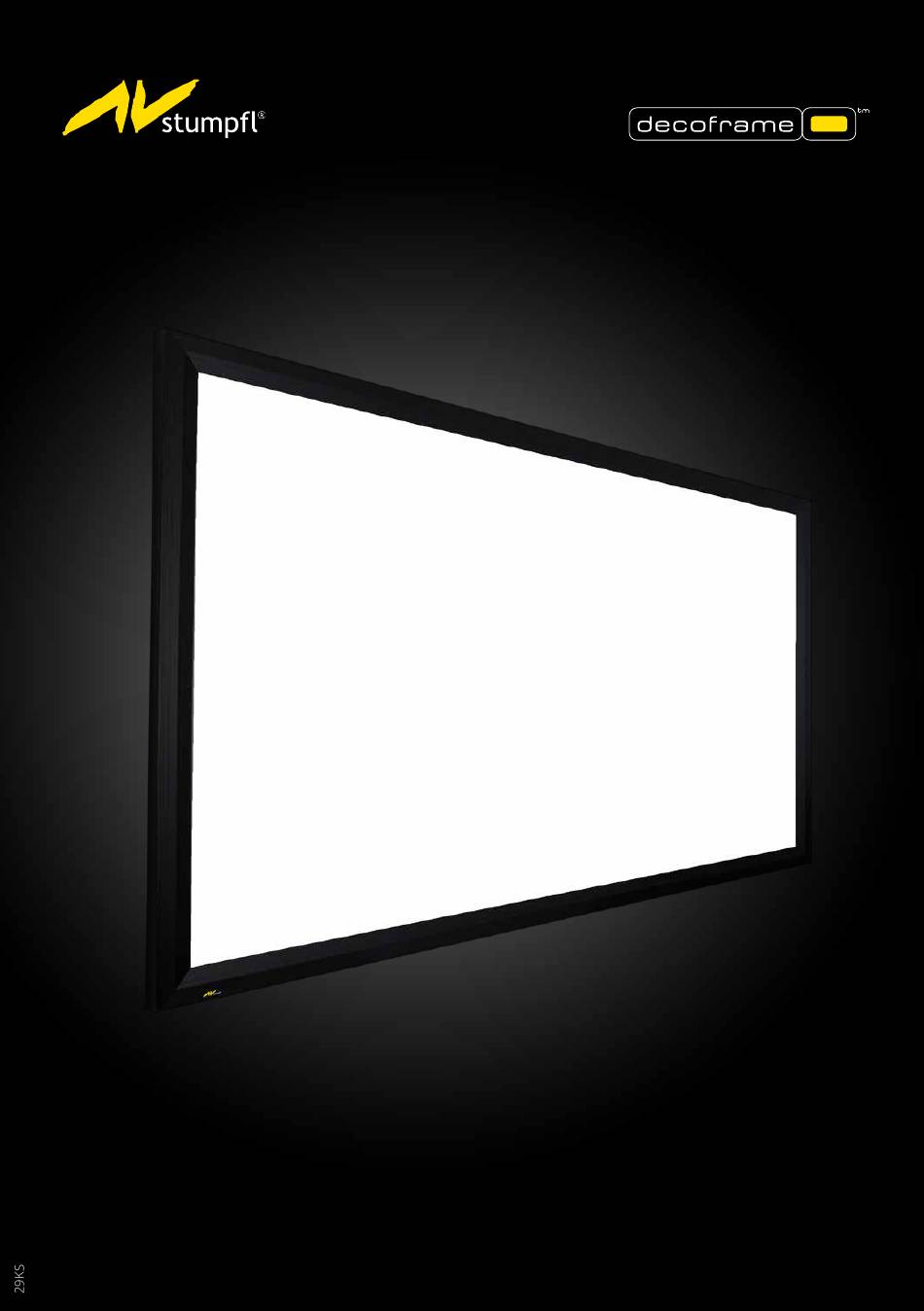

- Page 1 DECOFRAME MANUAL...
-
Page 2: Table Of Contents
INDEX GENERAL STANDARDS, REGULATIONS AND TECHNICAL SPECIFICATION SAFETY OPERATION, MAINTENANCE and SERVICE WARRANTY FRAME SET UP MOUNTING CENTRE SUPPORT AND HORIZONTAL STRUT AV Stumpfl GmbH | Mitterweg 46 | 4702 Wallern AVstumpfl@AVstumpfl.com | www.AVstumpfl.com | +43 7249 42811... -
Page 3: General
GENERAL STANDARDS, REGULATIONS and TECHNICAL SPECIFICATION This projection screen is in accordance with the safety regulations in DIN standard 19045 and DIN 56950. The screen fabric is comply with DIN 4102 part 1 and the specifications of the according data sheet. For the technical details and projection-specific material parameters please refer to the corresponding product data sheet: www.AVstumpfl.com/projectionmaterials Detailed data of frame components and projection surface can be found on the type labels on each component and on the labeled soft bags, roller bags or flight cases. - Page 4 SET UP-ASSEMBLY MECHANICAL HAZARDS Danger of injury due to improper assembly. Make sure all frame parts assembled correctly and all hinges and joints are locked before raising screen to standing position. Falling parts can cause severe injury or death! Projection surface damage in case of faulty assembly or set up. Make sure all frame parts assembled correctly and all hinges and joints are locked before one unfold and attach the projection surface.
- Page 5 WARNING DECOFRAME systems are developed for indoor use only. Failure to follow warning may result in personal injury due to unforeseen acts of nature. Any damage and consequential damage caused by outdoor use is not covered by warranty. BASIC SAFETY REQUIREMENTS Basic safety requirements for „flying“...
-
Page 6: Operation, Maintenance And Service
DISASSEMBLY For disassembly the same safety instructions apply as for assembly and set up. Bring down a projection screen with the appropriate number of people to avoid falling over of the screen. Falling parts can cause severe injury or death! OPERATION, MAINTENANCE and SERVICE FRAME ELEMENTS and ACCESSORIES: The frame elements and additional elements are maintenance-free. -
Page 7: Warranty
The warranty period for production deficiencies is 5 years for the frame elements and 24 months for the projection surface. DECOFRAME is developed for indoor use only. Any damage and consequential damage caused by outdoor use is not covered by warranty. -
Page 8: Frame Set Up
FRAME SET UP Frame elements and projection surface are In case of more than four frame elements or delivered in two seperate cardboard boxes. center supports and horizontal strut elements Please mind the warnings on the packaging. Please follow the instructions under point 13-23. The corners are each connected with one big Lay out the frame elements according to the and two small angle brackets. -
Page 9: Mounting
Take care that the ground is absolutely clean! struts or other support elements are mounted afterwards. See point 16 to 22. The Decoframe is mounted to the wall with its WARNING Falling parts! preinstalled keyhole brackets, which can be... -
Page 10: Centre Support And Horizontal Strut
Center supports are mounted at the preinstalled connectors. Take off the screws and place the center support according to the pictures in the Decoframe and secure it with the three philips head countersunk screws. Horizontal struts are mounted at the preinstalled connectors on the frame side and on the center supports at the M6 thread inserts with countersunk screws.
