LevelOne IEC-1420 Installation Manual

IEC-1420
10/100 Industrial Media Converter w/ PoE PD
SC SM 20KM -10 to 60C
Quick Installation Guide
Features
 Provides 1-port 10/100Base-TX plus 1-port 100Base-FX
 100Base-FX Single-mode fibre for the link up to 20 kilometres
 IEEE802.3af PoE PD that can be powered PoE PSE or external
power supply
 10/100Mbps Full/Half duplex, Auto-negotiation, Auto-MDI/MDIX
 Complies with IEC61000-6-2 EMC Generic standard immunity for
industrial environment
 228K bits buffer memory
 -100C to 600C (-140F to 1400F) operating temperature
 Supports DIN-rail mounting installation

Package Contents

 IEC-1420
 Quick Installation Guide
IEC-1420
Overview

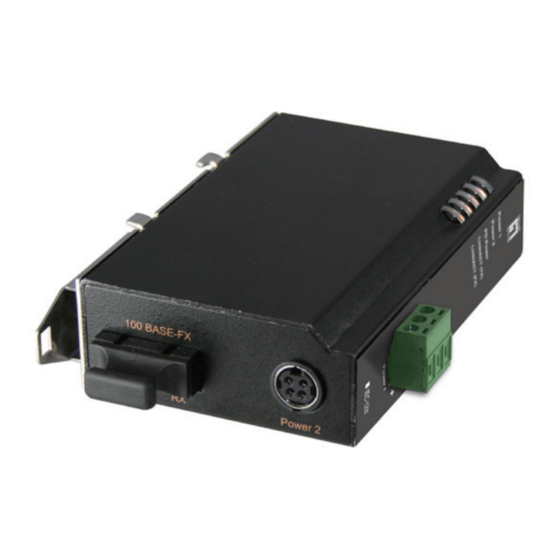

LevelOne IEC-1420 is an industrial Fast Ethernet media converter
with IP30 ingress protection case. This converter is designed to be
mounted on an industrial standard DIN-rail, plus the clearly visible
status LEDs provide simple monitoring of port link activity.
Power over Ethernet
This converter is PoE Powered Device (PD), which is supplied with
current by PoE PSE, and it is fully complied with IEEE 802.3af PoE
standard. It helps to save infrastructure wiring costs dramatically by
eliminating electric wiring and no power adapter needed.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that offers optimal suitability for industrial
applications at low cost while maintaining all components built to
withstand harsh environment applications without compromise
reliability and stability.
Plug & Play
This Industrial Media Converter is designed for the demanding
industrial environments at businesses in need of instant
connectivity with no setup or configure required, truly plug and
play.
v1.00 ‐ 1209
IEC-1420
LED Status
Page 2 IEC-1420
LED Status
Steady Power On
Power 1, 2
Off Power Off
Steady Powered Source Equipment (PSE) is connected
PD Power
Off Powered Source Equipment (PSE) is disconnected
Steady Network connection is established
Link/ACT Flashing Transmitting or Receiving data
Off No connection occurred
Page 1
Description
Page 3
