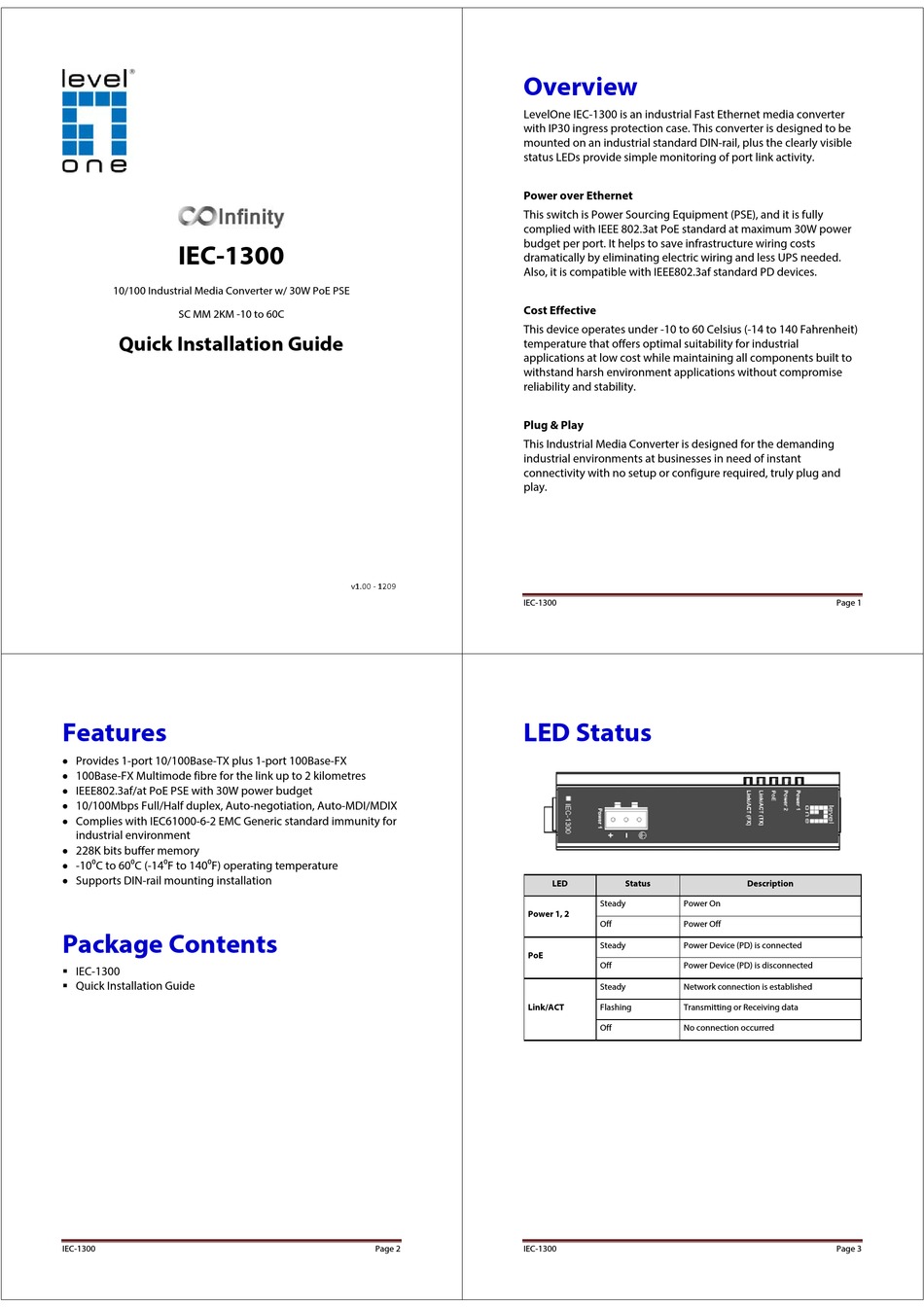

LevelOne IEC-1300 Quick Installation Manual
LevelOne IEC-1300 Quick Installation Manual

LevelOne IEC-1300 Quick Installation Manual

10/100 industrial media converter w/ 30w poe pse sc mm 2km -10 to 60c

Advertisement

Quick Links

IEC-1300
10/100 Industrial Media Converter w/ 30W PoE PSE
SC MM 2KM -10 to 60C
Quick Installation Guide
Features
 Provides 1-port 10/100Base-TX plus 1-port 100Base-FX
 100Base-FX Multimode fibre for the link up to 2 kilometres
 IEEE802.3af/at PoE PSE with 30W power budget
 10/100Mbps Full/Half duplex, Auto-negotiation, Auto-MDI/MDIX
 Complies with IEC61000-6-2 EMC Generic standard immunity for
industrial environment
 228K bits buffer memory
 -100C to 600C (-140F to 1400F) operating temperature
 Supports DIN-rail mounting installation
Package Contents
 IEC-1300
 Quick Installation Guide
IEC-1300
Overview
LevelOne IEC-1300 is an industrial Fast Ethernet media converter
with IP30 ingress protection case. This converter is designed to be
mounted on an industrial standard DIN-rail, plus the clearly visible
status LEDs provide simple monitoring of port link activity.
Power over Ethernet
This switch is Power Sourcing Equipment (PSE), and it is fully
complied with IEEE 802.3at PoE standard at maximum 30W power
budget per port. It helps to save infrastructure wiring costs
dramatically by eliminating electric wiring and less UPS needed.
Also, it is compatible with IEEE802.3af standard PD devices.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that offers optimal suitability for industrial
applications at low cost while maintaining all components built to
withstand harsh environment applications without compromise
reliability and stability.
Plug & Play
This Industrial Media Converter is designed for the demanding
industrial environments at businesses in need of instant
connectivity with no setup or configure required, truly plug and
play.
v1.00 ‐ 1209
IEC-1300
LED Status
Page 2
IEC-1300
LED
Status
Steady
Power On
Power 1, 2
Off
Power Off
Steady
Power Device (PD) is connected
PoE
Off
Power Device (PD) is disconnected
Steady
Network connection is established
Link/ACT
Flashing
Transmitting or Receiving data
Off
No connection occurred
Page 1
Description
Page 3
