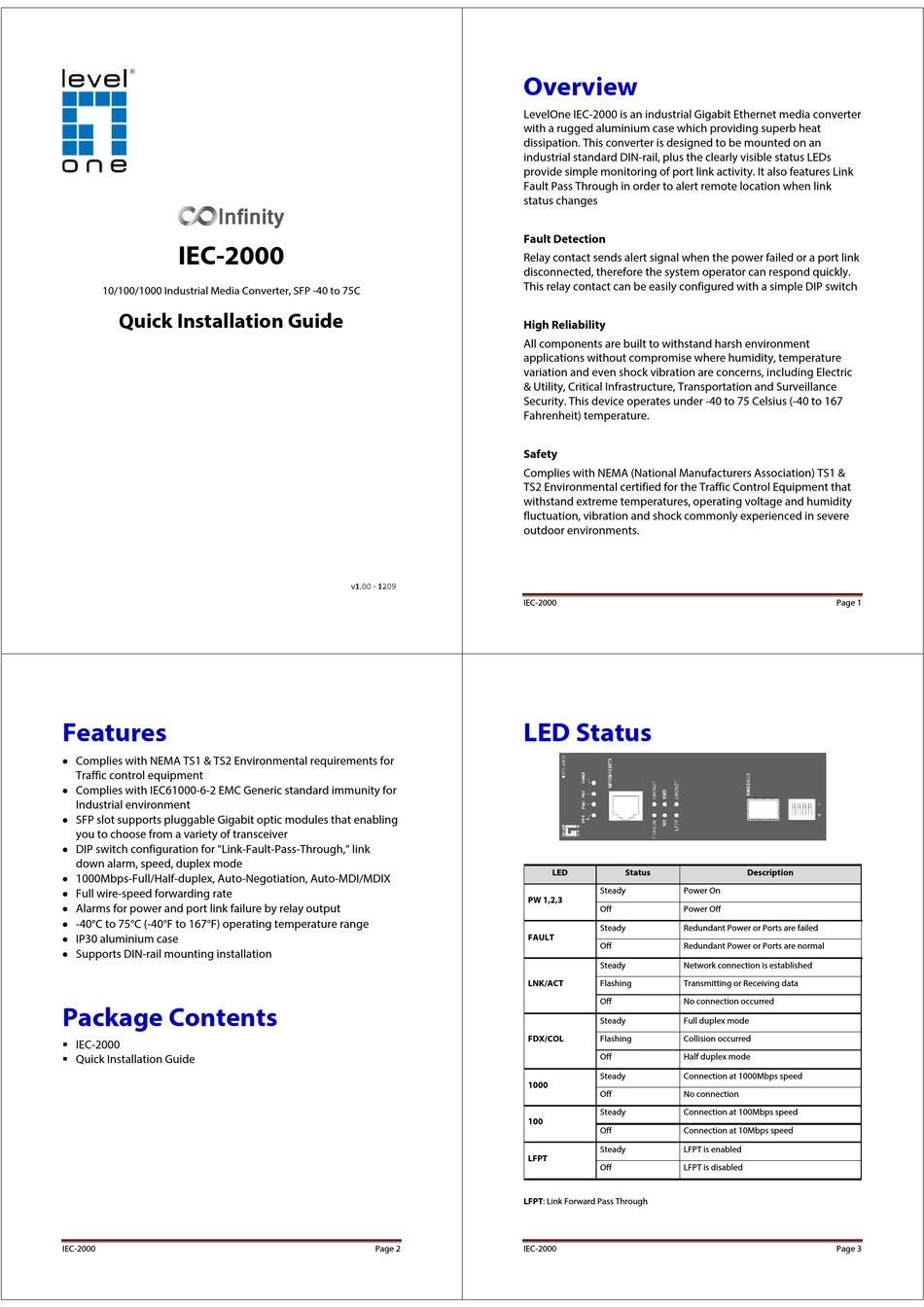

LevelOne Infinity IEC-2000 Quick Installation Manual

IEC-2000
10/100/1000 Industrial Media Converter, SFP -40 to 75C
Quick Installation Guide
Features
 Complies with NEMA TS1 & TS2 Environmental requirements for
Traffic control equipment
 Complies with IEC61000-6-2 EMC Generic standard immunity for
Industrial environment
 SFP slot supports pluggable Gigabit optic modules that enabling
you to choose from a variety of transceiver
 DIP switch configuration for "Link-Fault-Pass-Through," link
down alarm, speed, duplex mode
 1000Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
 Full wire-speed forwarding rate
 Alarms for power and port link failure by relay output
 -40°C to 75°C (-40°F to 167°F) operating temperature range
 IP30 aluminium case
 Supports DIN-rail mounting installation
Package Contents
 IEC-2000
 Quick Installation Guide
IEC-2000
Overview
LevelOne IEC-2000 is an industrial Gigabit Ethernet media converter
with a rugged aluminium case which providing superb heat
dissipation. This converter is designed to be mounted on an
industrial standard DIN-rail, plus the clearly visible status LEDs
provide simple monitoring of port link activity. It also features Link
Fault Pass Through in order to alert remote location when link
status changes
Fault Detection
Relay contact sends alert signal when the power failed or a port link
disconnected, therefore the system operator can respond quickly.
This relay contact can be easily configured with a simple DIP switch
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including Electric
& Utility, Critical Infrastructure, Transportation and Surveillance
Security. This device operates under -40 to 75 Celsius (-40 to 167
Fahrenheit) temperature.
Safety
Complies with NEMA (National Manufacturers Association) TS1 &
TS2 Environmental certified for the Traffic Control Equipment that
withstand extreme temperatures, operating voltage and humidity
fluctuation, vibration and shock commonly experienced in severe
outdoor environments.
v1.00 ‐ 1209
IEC-2000
LED Status
LFPT: Link Forward Pass Through
Page 2 IEC-2000
LED Status
Steady Power On
PW 1,2,3
Off Power Off
Steady Redundant Power or Ports are failed
FAULT
Off Redundant Power or Ports are normal
Steady Network connection is established
Flashing Transmitting or Receiving data
LNK/ACT
Off No connection occurred
Steady Full duplex mode
FDX/COL Flashing Collision occurred
Off Half duplex mode
Steady Connection at 1000Mbps speed
1000
Off No connection
Steady Connection at 100Mbps speed
100
Off Connection at 10Mbps speed
Steady LFPT is enabled
LFPT
Off LFPT is disabled
Page 1
Description
Page 3
