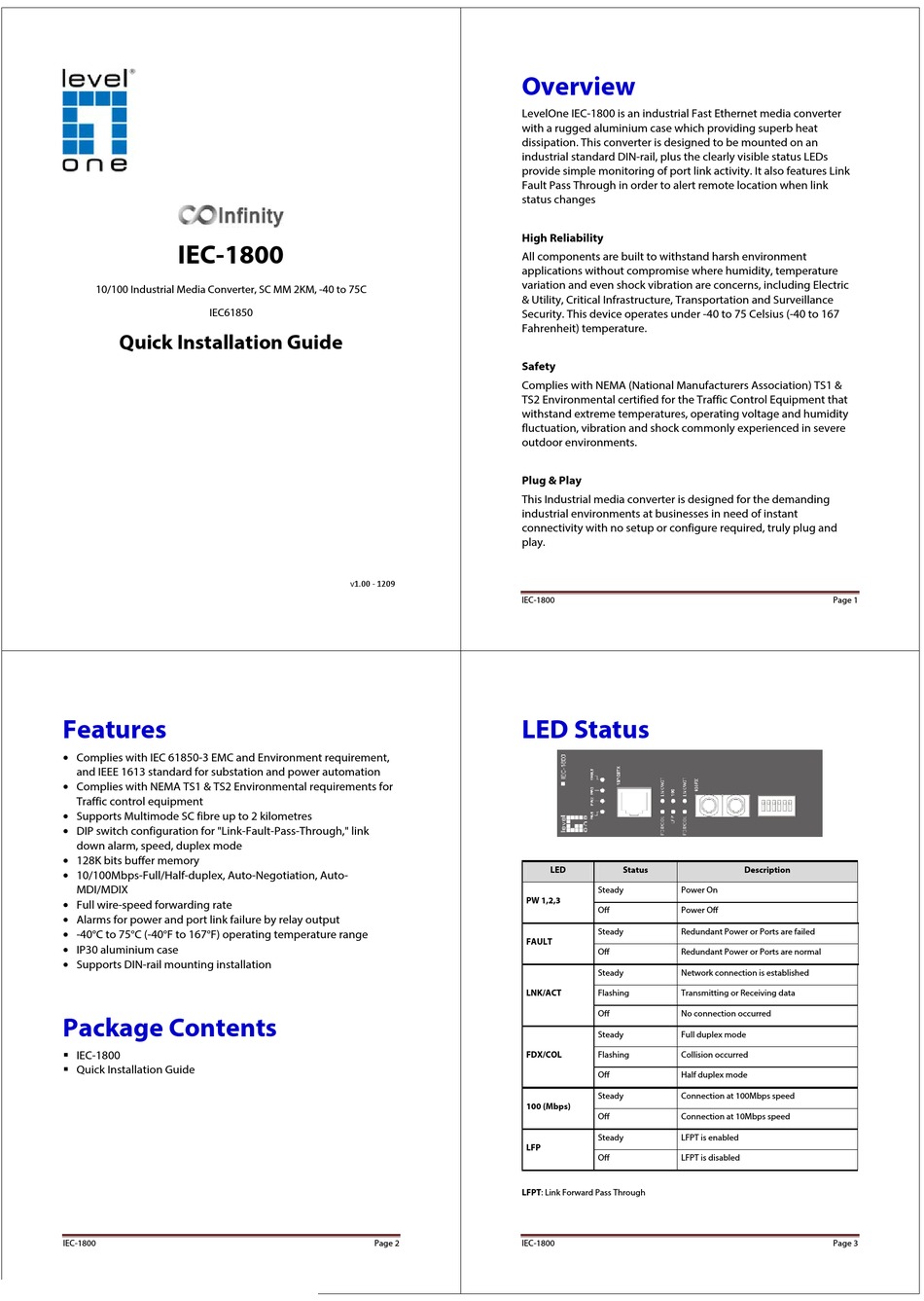

LevelOne IEC-1800 Quick Installation Manual

IEC-1800
10/100 Industrial Media Converter, SC MM 2KM, -40 to 75C
IEC61850
Quick Installation Guide

Features

 Complies with IEC 61850-3 EMC and Environment requirement,
and IEEE 1613 standard for substation and power automation
 Complies with NEMA TS1 & TS2 Environmental requirements for
Traffic control equipment
 Supports Multimode SC fibre up to 2 kilometres
 DIP switch configuration for "Link-Fault-Pass-Through," link
down alarm, speed, duplex mode
 128K bits buffer memory
 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-
MDI/MDIX
 Full wire-speed forwarding rate
 Alarms for power and port link failure by relay output
 -40°C to 75°C (-40°F to 167°F) operating temperature range
 IP30 aluminium case
 Supports DIN-rail mounting installation

Package Contents

 IEC-1800
 Quick Installation Guide
IEC-1800

Overview

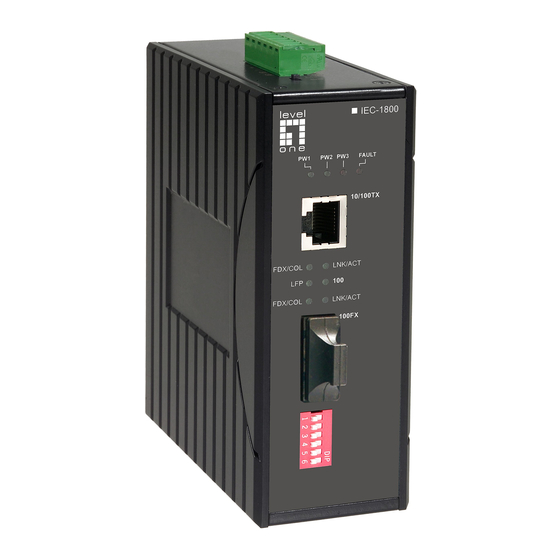

LevelOne IEC-1800 is an industrial Fast Ethernet media converter
with a rugged aluminium case which providing superb heat
dissipation. This converter is designed to be mounted on an
industrial standard DIN-rail, plus the clearly visible status LEDs
provide simple monitoring of port link activity. It also features Link
Fault Pass Through in order to alert remote location when link
status changes
High Reliability
All components are built to withstand harsh environment
applications without compromise where humidity, temperature
variation and even shock vibration are concerns, including Electric
& Utility, Critical Infrastructure, Transportation and Surveillance
Security. This device operates under -40 to 75 Celsius (-40 to 167
Fahrenheit) temperature.
Safety
Complies with NEMA (National Manufacturers Association) TS1 &
TS2 Environmental certified for the Traffic Control Equipment that
withstand extreme temperatures, operating voltage and humidity
fluctuation, vibration and shock commonly experienced in severe
outdoor environments.
Plug & Play
This Industrial media converter is designed for the demanding
industrial environments at businesses in need of instant
connectivity with no setup or configure required, truly plug and
play.
v1.00 ‐ 1209
IEC-1800

LED Status

LFPT: Link Forward Pass Through
Page 2 IEC-1800
LED Status
Steady Power On
PW 1,2,3
Off Power Off
Steady Redundant Power or Ports are failed
FAULT
Off Redundant Power or Ports are normal
Steady Network connection is established
LNK/ACT Flashing Transmitting or Receiving data
Off No connection occurred
Steady Full duplex mode
FDX/COL Flashing Collision occurred
Off Half duplex mode
Steady Connection at 100Mbps speed
100 (Mbps)
Off Connection at 10Mbps speed
Steady LFPT is enabled
LFP
Off LFPT is disabled
Page 1
Description
Page 3
