Related Manuals for Sense SE-350-WT-HAND
Summary of Contents for Sense SE-350-WT-HAND
- Page 1 Wireless Microphones SE-350-WT-HAND SE-350-WT-BODY Wireless Receiver SE-350-WR-1CHD...
- Page 2 PG 2 www.snapav.com...
-
Page 3: Table Of Contents
1-Year Limited Warranty This Sense™ Product has a One-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. -
Page 4: Before You Get Started
(see below for full list of accessories). The SE-350-WR-1CHD receives transmissions up to 500 feet, then outputs into a distributed audio system. There are just a few steps to take in order to have a proper setup with your Sense microphones. Step 1. -
Page 5: Compatible Accessories
Body-Pack Transmitter Pair the SE-350-WT-BODY (sold separately) with any of the following three Sense microphones to wirelessly transmit excellent sound reproduction back to the wireless receiver. The hands-free body-pack transmitter includes batteries and a lavalier microphone. Single Ear Headset Microphone... -
Page 6: Rack Mounting
PG 6 Antenna Booster Raise your signal strength by 10dB with the SE-ANT-BM. Mount the antennas to a wall or ceiling for an even greater signal pickup. Extend it further with the B-ANT-EXT-20M (also sold separately). Single Rack Mount The single rack mount is included with Wireless Receiver. -

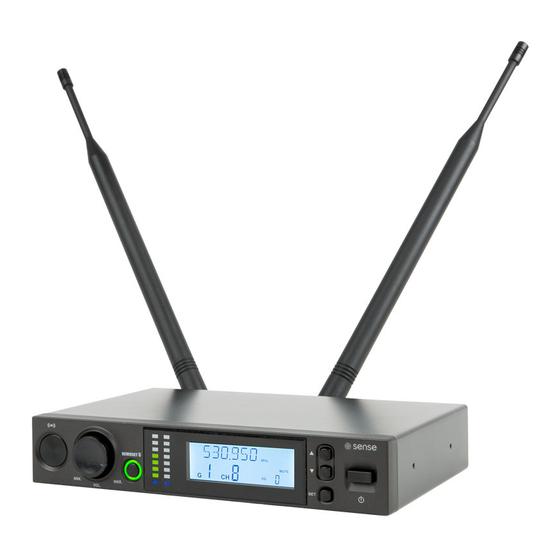

Page 7: Wireless Receiver
PG 7 MIN. MAX. DIVERSITY RECEIVER VOL. 5. Wireless Receiver Back Panel MIN. MAX. VOL. LCD Display Front Panel Annotations Back Panel Press once to turn on the 12. DC Power Socket: 12 VDC 500mA power supply. : (Frequency Adjustment) While in setting 13. -
Page 8: Body-Pack Transmitter (Sold Separately)
PG 8 6. Body-pack Transmitter (Sold Separately) The SE-350-WT-BODY transmits sound via wireless signal used for corporate presentations, houses of worship, audio/video conferencing, video, film and sound reinforcement, or other applications where low-profile, discreet placement is preferred. Features • Phase-locked Loop (PLL) synthesized tuner ensures reliable performance •... - Page 9 PG 9 Channel Scan Scan oF Function is deactivated SCAN on Function is activated. Scan to confirm if the channel is occupied. The program will skip this channel to prevent interference. NOTE: This function only works in preset mode. Audio Output Attenuation (XLR) ATT oF No Audio attenuation at output ATT on...
-
Page 10: Hand-Held Microphone (Sold Separately)
Only frequency and group settings will be synchronized All data settings will be synchronized 7. Hand-held Microphone (Sold Separately) The SE-350-WT-HAND transmits connected microphones via wireless signal and is typically used for corporate presentations, houses of worship, audio/video conferencing, video, film and sound reinforcement, etc. Features •... - Page 11 PG 11 Installation Tips & Guidelines To place or replace batteries inside the SE-350-WT-HAND by taking the following steps. Fig. 1 Fig. 2 Fig. 3 Fig. 4a Fig. 4b Figure 1: Unscrew the outer tube of the microphone 2. Figure 2: Insert 2 AA batteries in the battery holder, + to + and – to –.
-
Page 12: Wireless Transmitter And Receiver Adjustments
• Push SET again to save the setting. Using REMOSET U Automatic Pairing • To pair the SE-350-WT-HAND, remove the bottom sleeve to expose the controls and battery bay. • Turn on both the receiver and transmitter. • Press and hold the REMOSET button on the receiver and ensure the pairing window on the ultrasonic sensor faces the pairing window on the receiver. -
Page 13: Headset Microphones
(10mW). • Push SET again to save the setting. 9. Headset Microphones Sense attachable headset microphones have an intuitive installation and work great for corporate presentations, houses of worship, audio/video conferencing, and other applications where low-profile, discreet placement is preferred. -
Page 14: Lavalier Microphone (Included With Body-Pack)
fit. Lavalier Microphone (included with Body-Pack) Sense lavalier microphones have an intuitive installation and work great for corporate presentations, houses of worship, audio/video conferencing, video, film and sound reinforcement, and other applications where low-profile, discreet placement is preferred. -
Page 15: Specifications
212.3mm(W) * 38.3mm(H) * 144mm(D) Antennas Dual Half-wave REMOSET Technology Ultrasonic Included Accessories 1U Rack Ears w/ Antenna Mounts, 12VDC 2.5A Power Supply included SE-350-WT-BODY SE-350-WT-HAND Frequency Preparation PLL Synthesized Control PLL Synthesized Control Carrier Frequency Range 506-542 MHz 506-542 MHz RF Outputs... - Page 16 Rev: 180803-1700...
