Fein MSf 649-1a Operating Instructions

To be handed to the workshop!
l
I

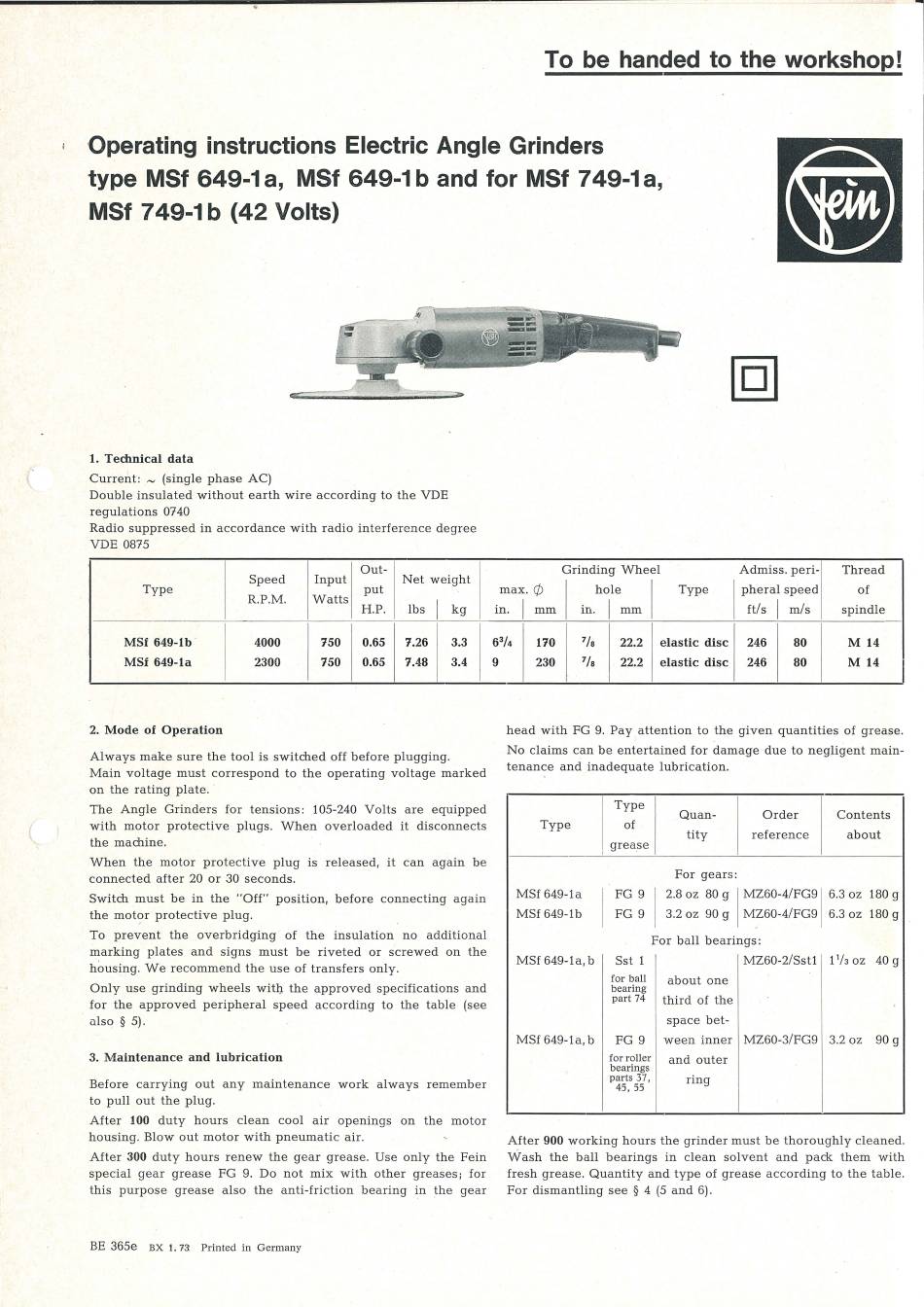

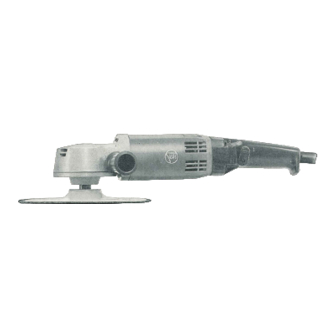

· O perating instructions Electric Angle Grinders
type MSf 649-1 a, MSf 649-1 band for MSf 749-1 a,
MSf 749-1 b {42 Volts)
1. Technical data
Current: ~ (single phase AC)
Double insulated without earth wire according to the VDE
regulations 0740
Radio suppressed in accordance with radio interference degree
VDE 0875
Out-
Type
Speed Input
put
Net weight
R.P.M. Watts
I H .P. lbs kg
MSf 649-1b .
4000 750
0.65 7.26 3.3
l
MSf 649-la 2300 750 0.65 7.48 3.4
2. Mode of Operation
Always make sure the tool is switched off before plugging.
Main voltage must correspond to the operating voltage marked
on the rating plate.
The Angle Grinders for tensions: 105-240 Volts are equipped
with motor protective plugs. When overloaded it disconnects
the machine.
When the motor protective plug is released, it can again be
connected after 20 or 30 seconds .
Switch must be in the "Off" position, before connecting again
the motor protective plug.
To prevent the overbridging of the insulation no additional
marking plates and signs must be riveted or screwed on the
housing. We recommend the use of transfers only.
Only use grinding wheels wit]]. the approved specifications and
for the approved peripheral speed according to the table (see
ulso
§
5).
3. Maintenance and lubrication
Before carrying out any maintenance work always remember
to pull out the plug.
After 100 duty hours clean cool air openings on the motor
housing. Blow out motor with pneumatic air.
After 300 duty hours renew the gear grease. Use only the Fein
special gear grease FG 9. Do not mix with other greases; for
this purpose grease also the anti-friction bearing in the gear
BE 365e
BX 1. 73: Printed in Germany
Grinding Wheel Admiss. peri-
Thread
max.
C/J
hole Type of
in.
I
mm
I
in.
I
mm
I
I
pheral speed
ft/s
I
m/s
spindle
6 3 /4 170
7
/s
22.2 elastic disc 246 80 M 14
9 230
7
/s
22.2 elastic disc 246 80 M 14
I
head with FG 9. Pay attention to the given quantities of grease.
No claims can be entertained for damage due to negligent main-
tenance and inadequate lubrication.
Type
Quan- Order Contents
Type of
tity reference about
grease
For gears:
MSf 649-la
I
FG 9
I
2.8 oz 80 g
I
MZ60-4/FG9 1
6.3 oz 180 g
MSf 649-1b FG 9 3.2 oz 90 g MZ60-4/FG9 6.3 oz 180 g
For ball bearings:
MSf 649-la, b Sst 1 MZ60-2/Sstl 1
1
h
oz 40 g
for ball
bearing
about one
part 74
third of the
space bet-
MSf 649-1a, b FG 9 ween inner MZ60-3/FG9 3.2 oz 90 g
for roller
bearings
and outer
parts 37,
ring
45 , 55
After 900 working hours the grinder must be thoroughly cleaned.
Wash the ball bearings in clean solvent and pack them with
fresh grease. Quantity and type of grease according to the table .
For dismantling see § 4 (5 and 6).
