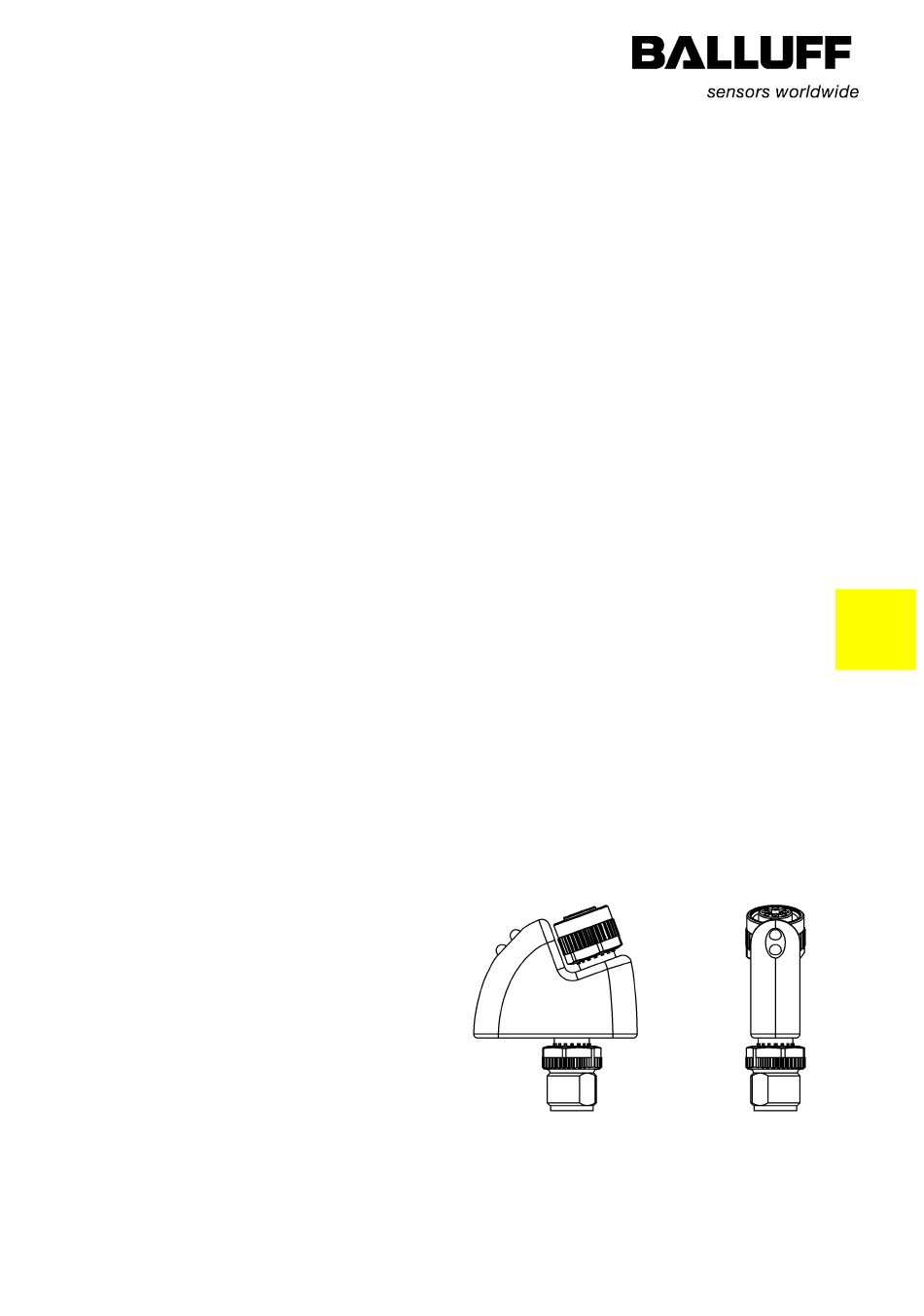

  • Page 1 BNI IOL-712-000-K023 BNI IOL-714-000-K023 User´s Guide...
  • Page 2: Table Of Contents

    3.4. IO-Link interface Connecting the module Module versions 3.5. Sensor interface IO-Link interface 4.1. IO-Link data 4.2. Process data / input data BNI IOL-712-000-K023 BNI IOL-714-000-K023 4.3. Parameter datat / Request data 4.4. Errors 4.5. Events Technical data 5.1. Dimensions 5.2.
  • Page 3: Notes

    Balluff Network Interface / IO-Link BNI IOL-712/714-000-K023 Notes 1.1. About this This guide describes the Balluff Network Interface BNI IOL-712/714-000-K023 for the guide application as peripheral input module to connect analogue sensors. Hereby it is about an IO-Link device which communicates by means of IO-Link protocol with the superordinate IO- Link master assembly.
  • Page 4: Safety

    Note voltage Disconnect all power before servicing equipment. Note In the interest of product improvement, the Balluff GmbH reserves the right to change the specifications of the product and the contents of this manual at any time without notice. www.balluff.com...
  • Page 5: Getting Started

    Balluff Network Interface / IO-Link BNI IOL-712/714-000-K023 Getting started 3.1. Connection overview Figure 3-1: BNI IOL-…-K023 1 Status LED: Supply, Communication 2 Label 3 IO-Link interface 4 Analogue input port 3.2. Mechanical To avoid long, shielded analogue cables, the BNI IOL-712/714-000-K023 modules should connection be attached to the analogue unit which has to be connected.
  • Page 6: Module Versions

    3.5. Sensor interface Analogue input port (M12, A-coded, female) Signal +24V, mA* Current input 4-20mA Voltage input 0-10V 1) Only in case of BNI IOL-712-000-K023 2) Only in case of BNI IOL-714-000-K023 * Depending on the IO-Link master, but max. 2A. www.balluff.com...
  • Page 7: Io-Link Interface

    Byte 1 K023 Analogue Input Voltage Value Note The measuring range from 4 - 20 mAmp (for BNI IOL-712-000-K023) will be shown in 16384 steps. Note The measuring range from 0 - 10 Volt (for BNI IOL-714-000-K023) will be shown in 16384 steps.
  • Page 8: Parameter Datat / Request Data

    3 Byte 0x050801 0x0B 0x10 Vendor name 7 Byte BALLUFF read only 0x11 Vendor text 15 Byte www.balluff.com BNI IOL-712-000-K023 0x12 Product name 20 Byte BNI IOL-714-000-K023 BNI 0041 0x13 Product ID 7 Byte BNI 0042 Hobbit current input 0x14...
  • Page 9: Technical Data

    Balluff Network Interface / IO-Link BNI IOL-712/714-000-K023 Technical data 5.1. Dimensions Figure 5-1: Dimensions BNI IOL-...-K023 5.2. Mechanical Housing materials Plastic, Macromelt 6208 data IO-Link port M12, A-coded, male I-port M12, A-coded, female Enclosure rating per IEC 60529 IP 67 (only when plugged in and threaded in) Dimensions (W x H x D in mm) 40 x 50.4 x 14.2...
  • Page 10: Led Indicators

    LED 1: Communication LED 2: Supply Figure 5-2: LED indicators Status LED BNI IOL-71x-000-K023 Indicator Function LED 1 Green / Green flashing Communication error / Communication ok LED 2 Green / Green flashing Supply sensor & module ok / Undervoltage www.balluff.com...
  • Page 11: Appendix

    Appendix 6.1. Product BNI IOL-71x-000-K023 ordering code Balluff Network Interface IO-Link interface Functions 712 = Current input 4-20mA 714 = Voltage input 0-10V Versions 000 = Standard design Mechanical design K023 = Plastic housing, Hotmelt Bus connection and voltage supply 1xM12 male, 4-poles, external thread Analogue port: 1xM12, female, 4-poles, internal thread 6.2.
  • Page 12 Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Deutschland Tel. +49 7158 173-0 Fax +49 7158 5010 www.balluff.com balluff@balluff.de...
