Proxxon LBS/E Manual
Hide thumbs
Also See for LBS/E:
- Original operating instructions (39 pages) ,
- Manual (39 pages) ,
- Original operating instructions (91 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Proxxon LBS/E
Summary of Contents for Proxxon LBS/E

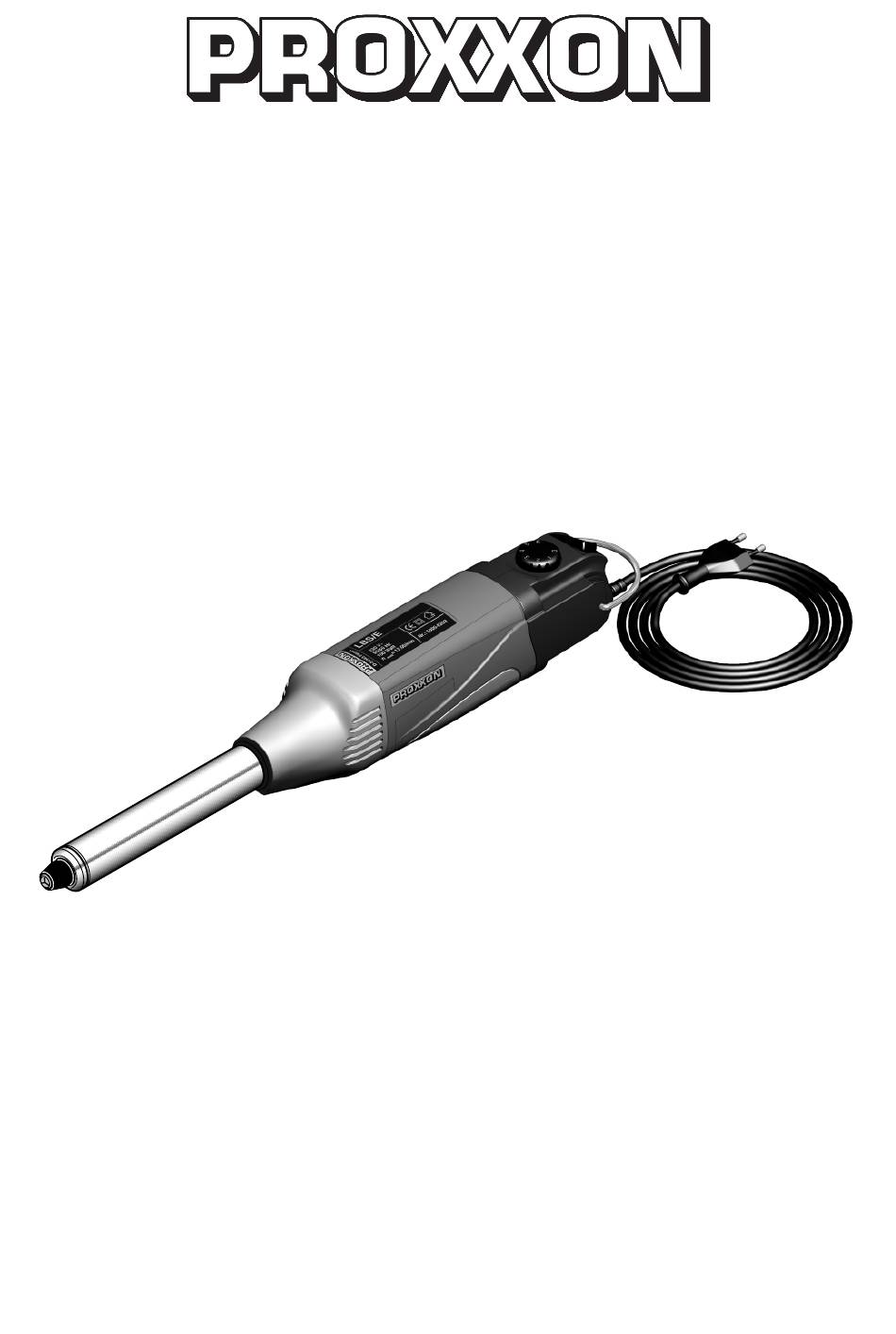

- Page 1 LBS/E Manual...
- Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 - 3 -...
- Page 3 Just because the accessory can be at- tached to your power tool, it does not assure safe op- Proxxon assumes no liability for the safe function of the eration. device in the case of: d) The rated speed of the grinding accessories must be at least equal to the maximum speed marked •...
- Page 4 speed for one minute. Damaged accessories will p) After changing the bits or making any adjust- normally break apart during this test time. ments, make sure the collet nut, chuck or any i) Wear personal protective equipment. Depending other adjustment devices are securely tightened. on application, use face shield, safety goggles or Loose adjustment devices can unexpectedly shift, safety glasses.
- Page 5 kickback forces. The operator can control kickback the wheel in the cut and the possibility of kickback forces, if proper precautions are taken. or wheel breakage. b) Use special care when working corners, sharp d) Do not position your hand in line with and behind edges etc.
-
Page 6: Technical Data

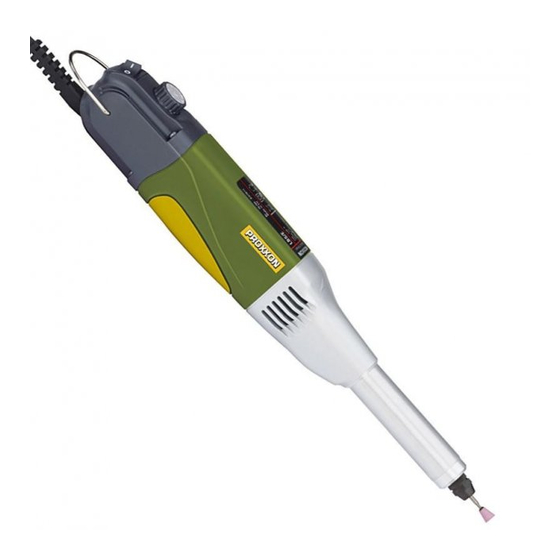

Description of the machine Voltage: 230 V, 50/60 Hz Rotary speed: 5,000 - 22,000 rpm The PROXXON LBS/E long-necked drill/grinder is the ideal Power consumption: max. 100 W device for micro drilling, milling, grinding, polishing, Noise development: 70 dB (A) -
Page 7: Maintenance, Cleaning And Care
Attention: The drill grinder LBS/E has an ergonomically design, so that it can be easily guided at the fitting collar. The thread Disconnect the mains plug prior to every adjustment,... - Page 8 PROXXON S.A. 6-10, Härebierg Please note in general: L-6868 Wecker Proxxon bits and cutters have been designed to work with our machines, which makes them optimal for their Product designation:LBS/E use. Article No.:...
- Page 9 - 84 -...
- Page 10 Spare Parts List PROXXON LBS/E - 85 -...
- Page 11 Service note All PROXXON products are thoroughly inspected after production. Should a defect occur nevertheless, please contact the dealer from whom you purchased the product. Only the dealer is responsible for handling all legal warranty claims which refer exclusively to material and manufacturer error.
