Apollo AlarmSense Manual

Advertisement

Quick Links

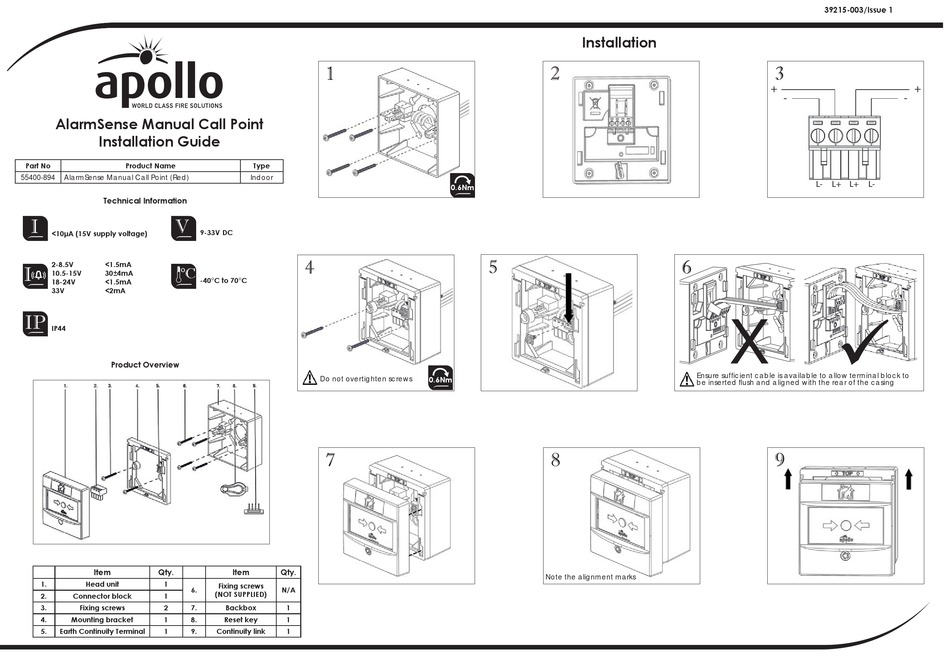

AlarmSense Manual Call Point

Installation Guide

Part No
Product Name
55400-894
AlarmSense Manual Call Point (Red)
Technical Information
I
V
<10μA (15V supply voltage)
2-8.5V
<1.5mA
I
o
C
10.5-15V
30±4mA
18-24V
<1.5mA
33V
<2mA
IP
IP44
Product Overview
Item
Qty.
1.
Head unit
1
6.
2.
Connector block
1
3.
Fixing screws
2
7.
4.
Mounting bracket
1
8.
5.
Earth Continuity Terminal
1
9.
1
Type
Indoor
9-33V DC
4
-40°C to 70°C
Do not overtighten screws
7
Item
Qty.
Fixing screws
N/A
(NOT SUPPLIED)
Backbox
1
Reset key
1
Continuity link
1
Installation
2
0.6Nm
5
0.6Nm
8
Note the alignment marks
39215-003/Issue 1
3
+
-
L-
L+ L+
6
X
Ensure suffi cient cable is available to allow terminal block to
be inserted fl ush and aligned with the rear of the casing
9
+
-
L-
