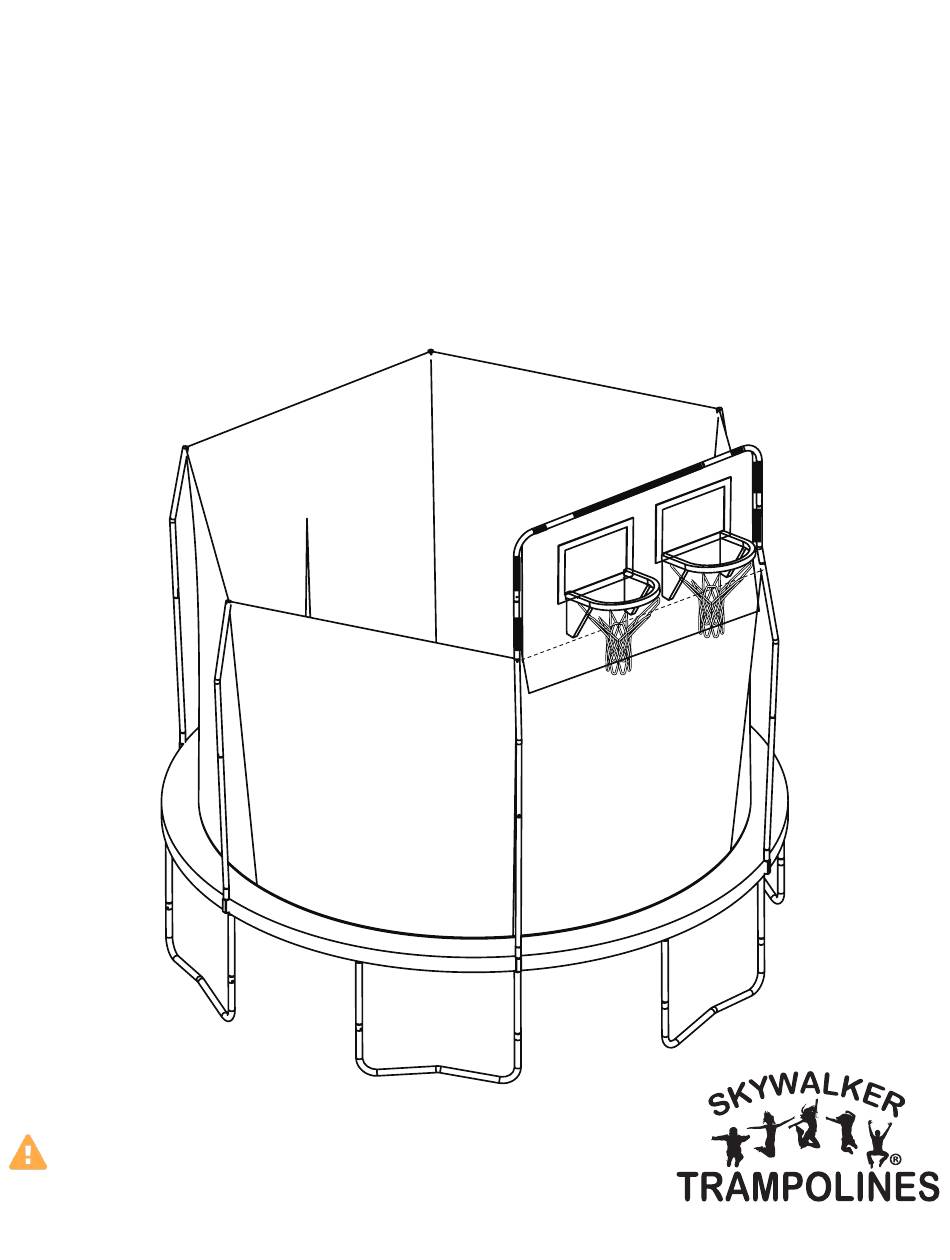

Page 1: User Manual
ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SWBB1200 / SWBB1500 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302... - Page 2 TABLE OF CONTENTS Part List.....................................3 Part Identification - Trampoline..........................4-5 Part Identification - Games............................6 Exploded Drawing................................7-11 Limited Warranty................................12 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...
- Page 3 BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
- Page 4 PART IDENTIFICATION - GAMES Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Middle Tube 1 Corner Tube Middle Tube 2...
- Page 5 Basketball (x2) M5 Washer (x4) M5 Nut (x2) String (0.5m) (x3) Wrench (x1) Screw Driver (x1)
- Page 6 EXPLODED DRAWING (10) (10) (10) (10) (10)
- Page 7 ASSEMBLY STEP 1 Next, insert the middle tube 1 with foam (1) into middle tube 2 with foam (2) as shown, and secure using one self-tapping screw (10). Middle Tube 1 Middle Tube 2 Self-tapping with Foam (x1) with Foam (x1) Screws (x1) (10) STEP 2...
- Page 8 ASSEMBLY STEP 3 Insert the corner tubes with foam (3) into the sleeve as shown, and secure on each side using two self-tapping screws (10). Note: One end of the corner tube has one hole, and the other end has two holes.
- Page 9 STEP 5 Take one end of the string (8) and tie a knot at the end. Begin threading the other end of the string through the left hole on the rim (6). Weave the string in and out of the holes on the rim and the net (7) to attach completely.
- Page 10 ASSEMBLY STEP 7 To attach the game to your trampoline you will need to lower the two enclosure poles you will be mounting to. (Additional poles may also need to be lowered in order to release some of the tension from the enclosure net.) Remove the pole caps from the two chosen enclosure poles.
- Page 11 STEP 9 Now with two people (one on each side of the game) raise the enclosure poles together and place them in their T-sockets. If you have any other enclosure poles down, place them back up now as well. Pull back End cap STEP 10 To secure the bottom of the game, slide the 3 pieces of string (0.5m) (15)
-
Page 12: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 13 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
