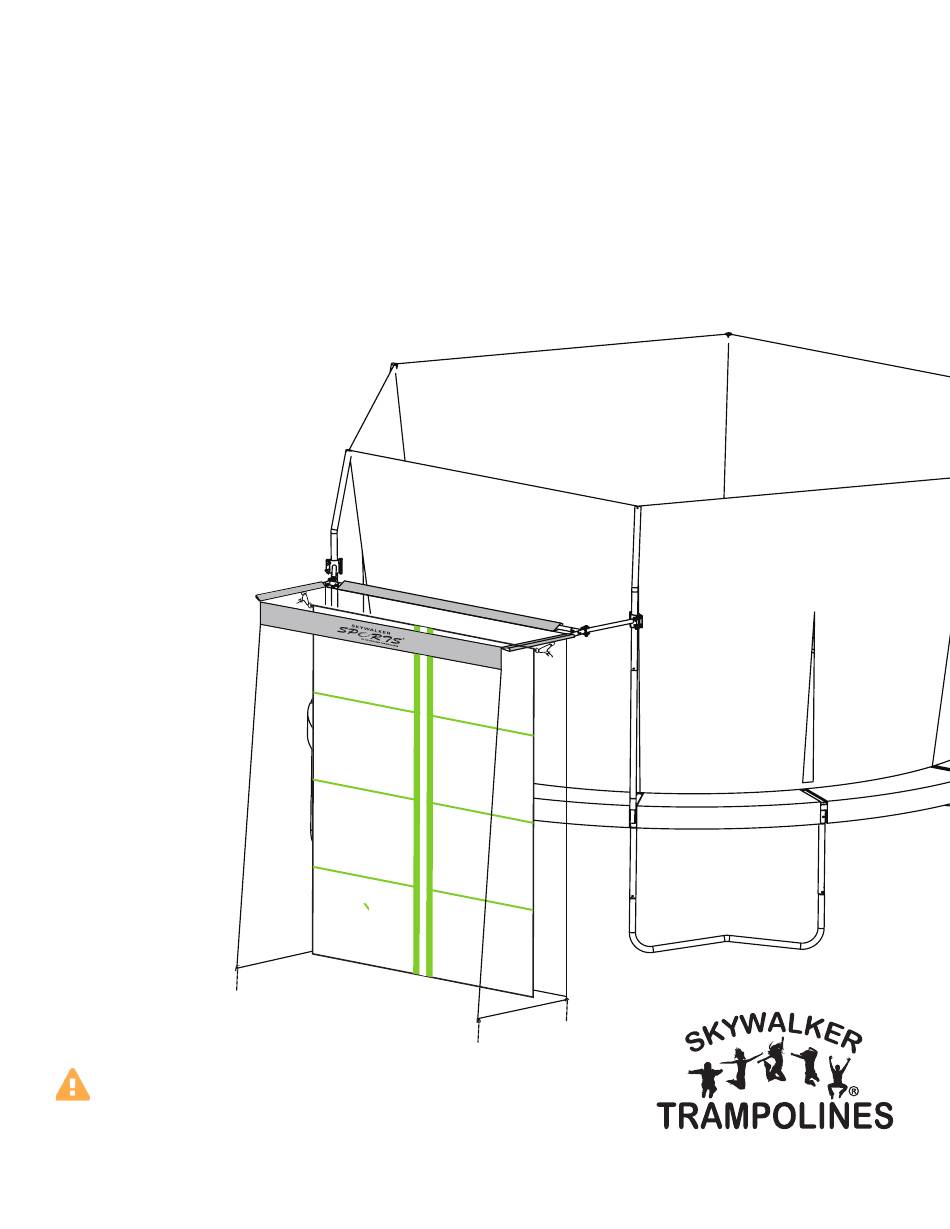

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #SSASN100
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Skywalker Holdings LLC
Save this manual for future reference.
P.O. Box 574, Brigham City, UT 84302
Skywalker Trampolines Patent: US RE45,182 E
US 7,481,740 B2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSASN100 and is the answer not in the manual?

Questions and answers

Related Manuals for Skywalker SSASN100

Summary of Contents for Skywalker SSASN100

  • Page 1 MODEL #SSASN100 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Skywalker Trampolines Patent: US RE45,182 E US 7,481,740 B2...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly...................................7-14 Limited Warranty................................15 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR PRODUCT Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: • Name • Email address •...

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Connect tube (x2) Front tube (x2) Corner socket (x2) Straight tube (x2)
  • Page 5 M8x50mm Bolt (x2) M8 Washer (x4) M8 Nut (x2) End cap (x2) Foam (x2) Metal stake (x6) Pre-installed Pre-installed Cap (x2) Wrench (x2) Screw Driver (x1) Pre-installed...

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (13) (14) (14) (1) (11) (10) (15) (12) (19) (16)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • We’ve provided a Phillip’s screw driver to help with assembly, but you’re more than welcome to use your own tools. • Use gloves to protect your hands from pinch points during assembly. Plus, it’s an up-and-coming fashion trend. •...

  • Page 8: Assembly

    ASSEMBLY STEP 3 Attach another connect tube (1) to the next enclosure pole, making the height 1900mm(6.2 ft) from the ground as well. Secure with two bolts (11), & M8 wing nuts (12). Then put the Bolt cap (13) onto the end M8x35mm M8 Wing Bolt cap...

  • Page 9: Straight Tube (X2)

    STEP 5 Insert the front tube (2) into cor- ner socket(3), secure with screw (9). Front tube (x1) Corner socket (x1) Screw (x1) STEP 6 Attach two Straight tubes (4) to the ends of the Middle tube (5) as shown, secure with screws (9).
  • Page 10 ASSEMBLY STEP 7 Insert the front tube (from step 5) into the side sleeve on net as shown. Net (x1) STEP 8 Insert the straight tube (from step 6) into the rear sleeve on net as shown, then secure the corner socket and straight tube with screw. Screw (x1)
  • Page 11 STEP 9 Place the remaining corner socket(3) onto opposite end and secure with screw (9). Corner socket (x1) Screw (x1) STEP 10 Now insert the other front tube into remaining side sleeve on net as shown, then secure the corner socket (3) and front tube (2) with screw (9).

  • Page 12: Target (X1)

    ASSEMBLY STEP 11 Attach the assembled net to the connect tube (from steps 3 & 4) with M8x50mm Bolt (13), M8 Washers (14) and M8 Nut (15). M8x50mm Bolt M8 Washer (x4) M8 Nut (x2) (x2) STEP 12 Identify the Target (7), there are two sides. Choose whichever side will work best for you! Target (x1) Side 1...

  • Page 13: Cinch With Cord

    STEP 13 Attach the Target (7) to Net (6) with the provided Cinch with cord (8) as shown. Note: Press the ends of the cinch to open the hole and slide the cord through. Cinch with cord (x2) STEP 14 Straighten the net, then insert Stakes (14) into the ground to secure.
  • Page 14 ASSEMBLY STEP 15 That’s it you’re done! Congratulations, your sports net has been fully assembled.

  • Page 15: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 16 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
