Page 1: User Manual

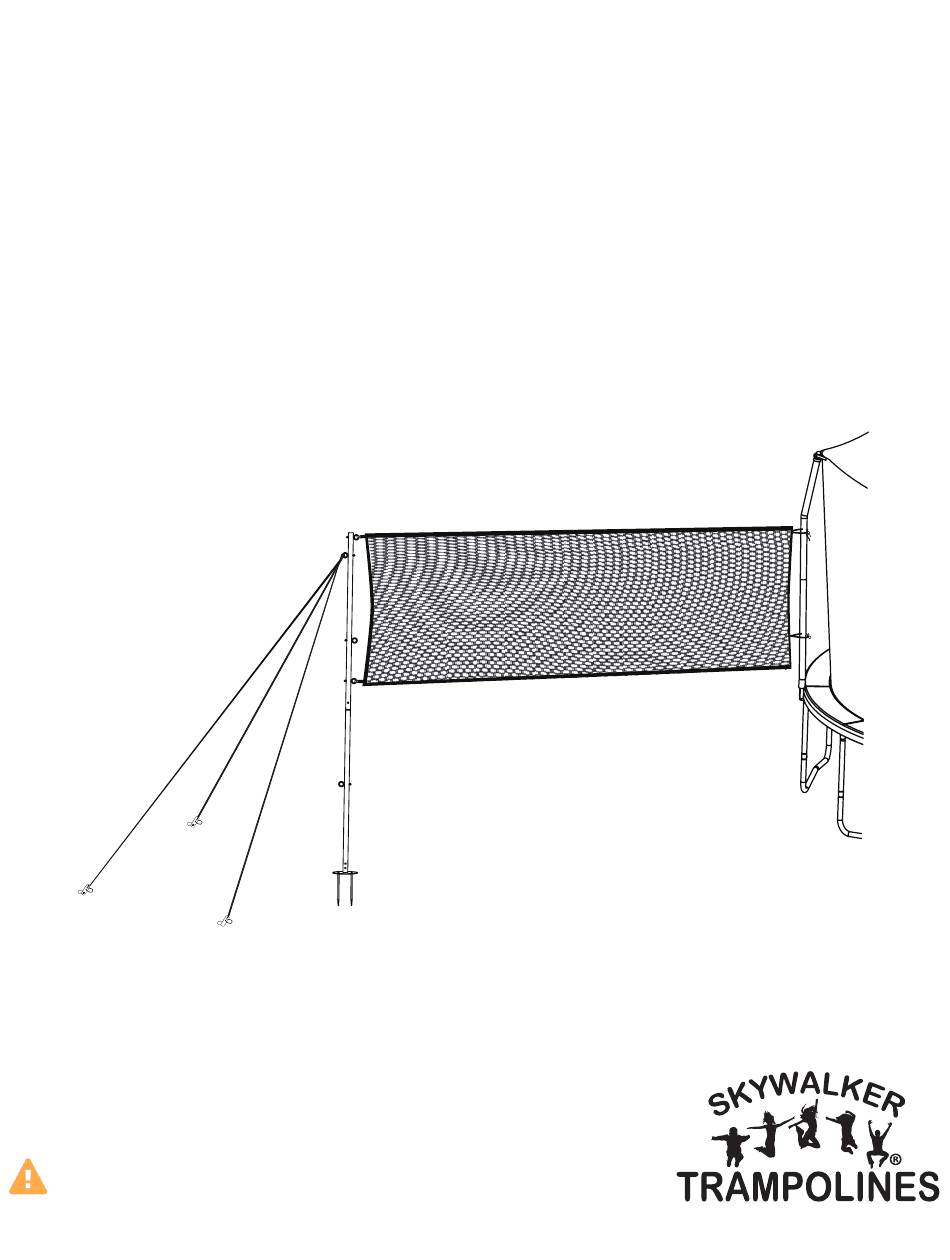

ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #RGM1941.2 WARNING Read all precautions and instructions in Skywalker Holdings LLC this manual before using this equipment. P.O. Box 574, Brigham City, UT 84302 Save this manual for future reference. - Page 2 BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
- Page 3 BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
- Page 4 PART IDENTIFICATION - GAMES Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Tensioning Rope (x2) M8x42mm Bolt (x3)
- Page 5 M8 Locknut (x3) M6 Locknut (x5) Wrench (x1)
- Page 6 EXPLODED DRAWING (11) (14) (14) (11) (11) (14) (11) (11) (10) (14) (11) (11) (13) (12) (14) (11) (11) (13) (12)
- Page 7 ASSEMBLY STEP 1 Attach the upper upright pole (7) to the lower upright pole (8) with one M8x42mm bolt (1), one M8 arc washer (12), and Upper Lower M8x42mm M8 Arc M8 Locknut Upright Pole Upright Pole one M8 locknut (13). Bolt (x1) Washer (x1) (x1)
- Page 8 ASSEMBLY STEP 3 Attach the volleyball net (6) to the upper upright pole (7) at the height you’d like using the plastic clips. Then, attach the opposite end of the volleyball net to a straight tube of the trampoline with two straps. Stretch out the volleyball net away from the Volleyball Net (x1) trampoline until the volleyball net is tight.
- Page 9 STEP 5 Tie the ends of the three guide line cords (10) to the upper upright pole (9) and pull to secure the upright pole. Thread the opposite end of one guide line through the 3 first holes of one tensioning device (2). Guide Line Tensioning Cords (x3)
-
Page 10: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 11 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
