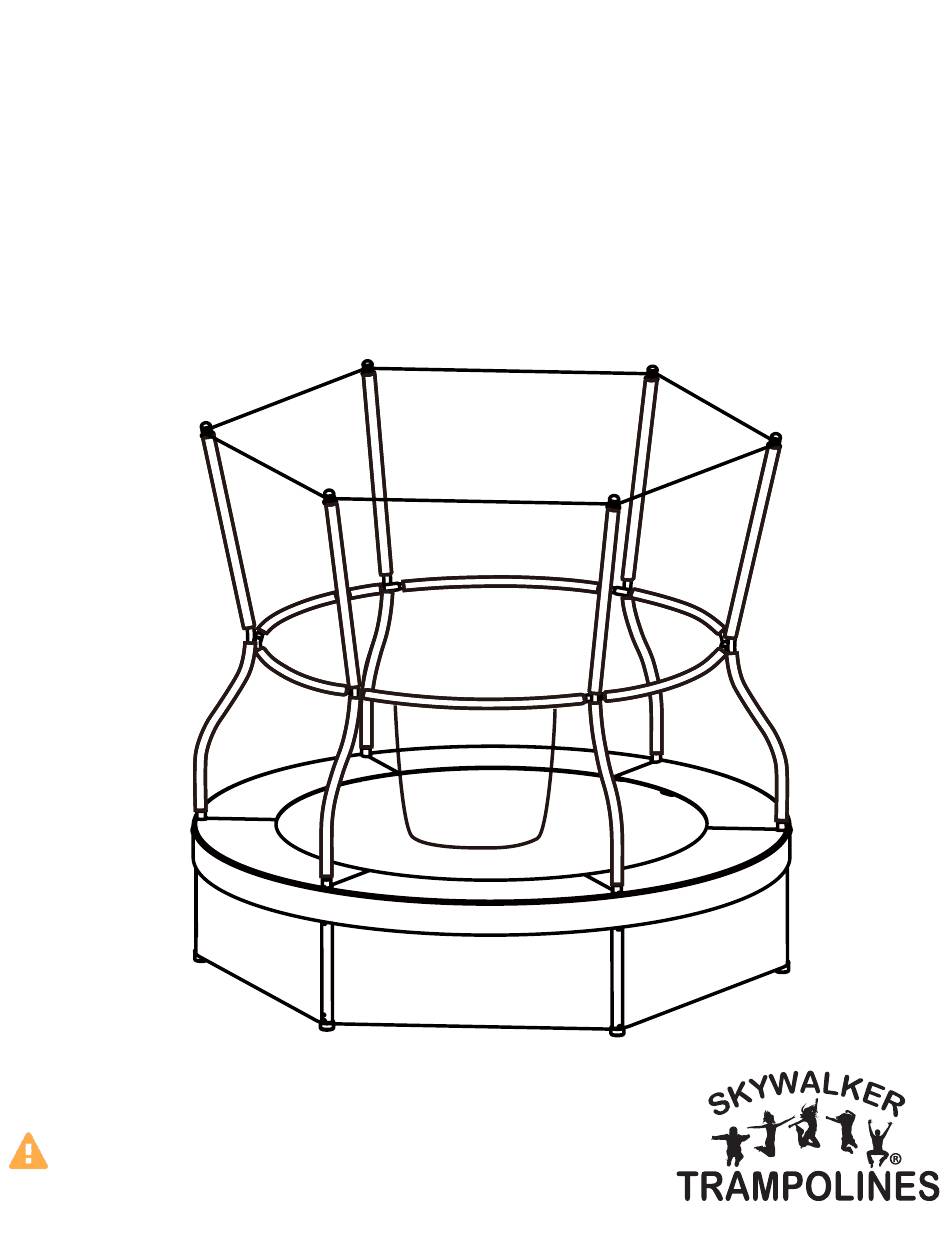

- Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SBT60 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Skywalker Holdings LLC Maximum user weight 100 lbs. P.O. Box 574, Brigham City, UT 84302...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part List...................................3 Part Identification...............................4-5 Exploded Drawing..............................6 Assembly.................................7-14 Maintenance and Care Information......................15 Warning Label Placement..........................15 Instructions for Use..............................16 Methods of Accident Prevention.........................17 Instructions and Model Lessons......................18-19 Trampoline Safety Information........................20 Enclosure Safety Information........................21 Learning Games and Activities........................22 Limited Warranty..............................23 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy:... -
Page 3: Part List
BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know. -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Frame Tube (x6) Rail (x6) (x6) Mat with Net (x1) - Page 5 Short Foam (x6) Screw Driver (x1) (Pre-installed)
-
Page 6: Exploded Drawing
EXPLODED DRAWING (12) (12) (12) (12) (12) (10) (10) (10) (10) (10) (10) (10) -
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver to help with assembly, but you’re more than welcome to use your own tools. - Page 8 ASSEMBLY STEP 3 Now all you need to do is connect the frame pieces together! (See, this isn’t too bad... is it?) Remember, the ends with the larger diameter should face the ground! Big diameter end STEP 4 Insert one leg (3) into the larger diameter end of the frame tube (1), and tighten using one self-tapping screw (10).
- Page 9 STEP 5 Place the mat with net (4) on the ground inside the frame. Make sure the door is centered between the two legs! Then, using one elastic with ball (6) attach the mat to the frame in location A. Repeat this step to attach five remaining elastic bands in locations B-C-D-E-F as shown.
- Page 10 ASSEMBLY STEP 7 At this point the frame may not lay flat on the ground... but don’t freak out! The frame will straighten out with further assembly. Lay the pad with net (5) on the frame. Adjust the position of the pad so that the slits are directly above the legs.
- Page 11 STEP 9 Insert the bottom (the curved section) of one curved tube (7) into a leg piece as shown. The tube should be curving in towards the mat, and the short horizontal piece on the middle of the tube should be facing inwards as well.
-
Page 12: Foam For Rail (X6)
ASSEMBLY STEP 11 Unfold the enclosure net attached to the mat, and locate the sleeves sewn on the inside of the net. Slide a piece of foam (11) into one of the sleeves inside the net (4). Repeat this step until all foam pieces have been places inside the sleeves. Foam for Rail [X6) Sleeve (11) - Page 13 STEP 13 Next, push the end of one rail out of the net hole, to the outside of the net. Then, insert the rail end into the short horizontal tube located on the curved tube (7). Repeat this step with an adjacent rail. The smaller end of one rail should fit inside the larger end of the other rail with both ends inside of the short horizontal tube.
-
Page 14: Assembly
ASSEMBLY STEP 15 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Insert self-tapping screws (10) into the holes at the bottom of the enclosure poles. Tighten to secure in place. Self-tapping Screw (x6) (10) STEP 16 Congratulations on completing your new trampoline! (See... we knew you could do it!) So here comes the real question... -
Page 15: Maintenance And Care Information
MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines Mini Bouncer! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •... -
Page 16: Instructions For Use
INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment. -
Page 17: Methods Of Accident Prevention
METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries. -
Page 18: Instructions And Model Lessons
INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2. - Page 19 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
-
Page 20: Trampoline Safety Information
TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described. -
Page 21: Enclosure Safety Information
ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely. -
Page 22: Learning Games And Activities
LEARNING GAMES & ACTIVITIES The Skywalker Trampolines 60” Round Seaside Adventure Trampoline Mini Bouncer with Enclosure provides physical activity for both good health and building skills. The Seaside Adventure Bouncer was created for young bouncers to help develop their gross motor and mental skills while playing activity-driven games. Games can be played either competitively or cooperatively, depending on the ages and levels of players. -
Page 23: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 24 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
