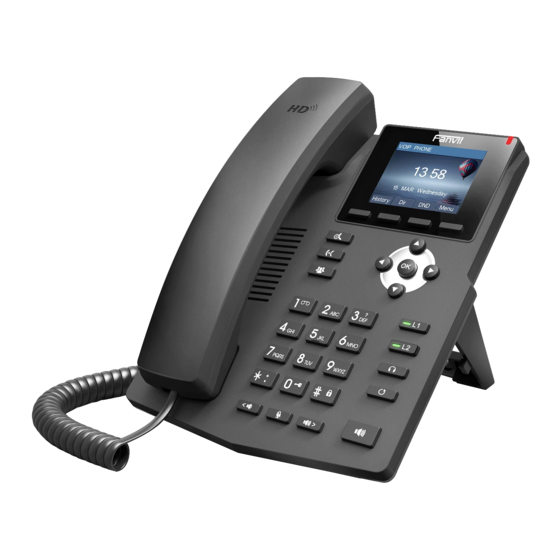

Fanvil X3S Basic User Manual

Hold Key
Transfer
Conference

Set Up:

Your phone will come fully provisioned, set up to your account and should already be connected to your IP
address after being connected to your router. Please see the diagram below for all connection points on the
back of the Fanvil telephone. For digital and computer connections, (also allowing you to connect to the cloud)
unplug the data cable from the back of your PC and connect it to the computer port on the back on the
telephone, then using the black cable provided plug one end into the broadband router port of the telephone
and the other end into your PC's data port. Using the black cable provided connect telephone to the
broadband router.
If not connecting to your computer network simply connect the phone to the broadband router using the black
cable provided.
Should you have any issues connecting your Fanvil telephone we may need the telephones IP address. To get
this number connect the phone to your broadband router using the black cable provided, then using the soft
keys select MENU, followed by STATUS and you IP address/number will appear.
Connection Points for your Fanvil:
Digital Computer Port
Power point
Fanvil Model X3S Basic User Guide
Visual Display
Broadband Router Port
Soft Keys
Dialling Keys and
Line keys
Speaker
Headset Connection
Speaker Connection
