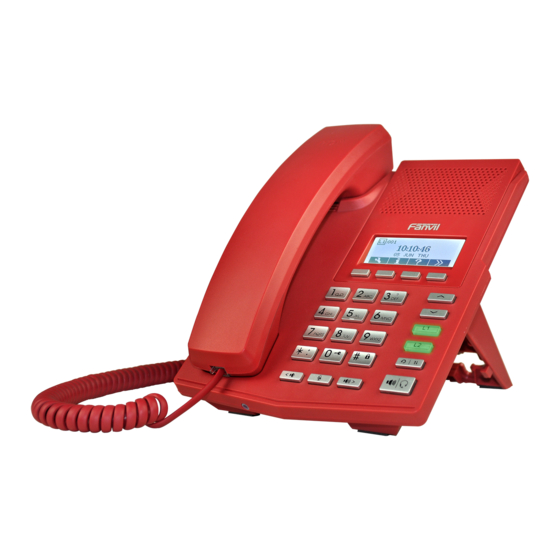

- Page 1 X3 User Tips Fanvil Product Department 2014/9/30 仅内部使用...
-
Page 2: Phone Setup
Tip#1 Phone Setup For physical assembly/installation, please • refer to the backside of X3 box. Please make sure handset and network cable • is connected correctly to the corresponded ports. Headphone Power Handset Adapter Network Port Port 仅内部使用... - Page 3 Tip#2 Long-press Key Function Some keys and soft-button on X3 supports • long-press function, such as: Up/Down – Fast scrolling. Line (L1/L2) – Open line configuration. Hands-free – Switch Hands-free / Headphone. And more… For keys have specific long-press function, •...
- Page 4 Tip#3 Help ‘?’ User can press key ‘3’ for 1.5 seconds (long- • press) to get into the help menu, or press soft-button Help ‘ ’, which will provide the definition and description of menu icons and functions. 仅内部使用...
- Page 5 Tip#4 Initialization Configuration Wizard (ICW) ! This feature is only available after RC3.2.440. • The ICW will help user to configure the following settings: • Language - Only English is available now, multi-language version will be provided in the later upgrade version. Network –...
-
Page 6: Online Update
• versions, user has to update the phone manually to the latest version. X3 supports online update function which will periodically check • for newer X3 version online after boot up. If a newer version software is available, phone will pop up a •... -
Page 7: Phone Information
Tip#6 Phone Information User can get phone information, such as • software version, IP address, etc., by long- press key ‘2’. 仅内部使用... - Page 8 Tip#7 Configure Line(s) User can enter the line configuration by long-press line key • (L1 or L2). The phone provide basic line account configuration, such • SIP Server Address SIP Server Port SIP User SIP Authentication User SIP Display Name To configure other advance line options, user should user •...
- Page 9 Tip#8 Making / Receiving Calls ! Press ‘#’ after phone number to dial is not supported. • User may open audio channel first, such as hands-free (or • line key), handset, or headphone, then dial the number. The number will be dialed in 5 seconds timeout, or user can press the OK ‘...
- Page 10 Tip#9 Intelligent Contact Match (ICM) ICM allows user to quickly find matched • contact from phonebook or call log without enter complete number. User can enter partial number and matched • contacts will be listed. User can then scroll up/down the list to find desired contact and dial the number.
- Page 11 Tip#10 Switching Hands-free/Headphone User can switch audio channel between • hands-free and headphone by long-press “Hands-free/Headphone” button. 仅内部使用...
- Page 12 Tip#11 Call Holding/Resuming User can hold a call by pressing Pause/Hold • ‘ ‘ button and resume the call by pressing Resume ‘ ‘ button. 仅内部使用...
-
Page 13: Call Transfer
Tip#12 Call Transfer Attended • During an established call, user can make second call by (1) press Call-out ‘ ‘ button, (2) line key. After the second call is established, user may press Transfer ‘ ‘ the first party to the second party and leave the call. - Page 14 Tip#13 Making Two Concurrent Calls During an established call, user can make second • call by (1) press Call-out ‘ ‘ button, (2) line key. Or, user can answer an incoming call during an • established call, if Call Waiting is enabled (Enabled by default).
- Page 15 Tip#14 Three-way Call During an established call, user can make • second call by (1) press call-out ‘ ‘ button, (2) line key. User can join two calls into call conference by • pressing Join ‘ ‘ button, and split calls back to two separated calls by pressing Split ‘...
- Page 16 Tip#15 Using Web Management User can use X3 web management portal • to manage the phone. User can get the phone IP address from • the phone. (See Tip#5) The default web management • authentication is, Username: admin Password: admin...
