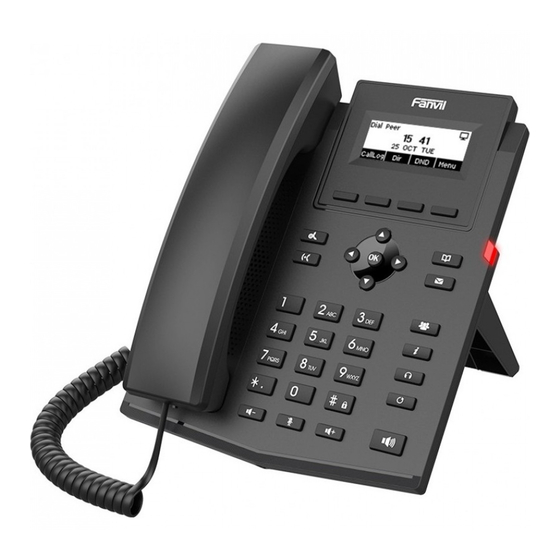

Fanvil X301W Quick Installation Manual

Call conference
1. Press the Conference soft key during an active call.
The call is put on hold.
2. Call the second party's number.
3. After 2nd call is established, press the Conference soft key
to let all parties joined in the conference.
Putting a call on hold
1. Press key or Hold soft key, caller is put on hold.
2. To retrieve the call press key or Resume soft key.
Note : with more than one active call, select desired call with
the navigator keys and use the corresponding soft key to
hold or resume.
Call transfer
Attended transfer:
1. Press key or Xfer soft key during the active conversation,
the call is put on hold.
2. Dial the second telephone number.
3. When the call is answered, then press key or Xfer soft
key to complete the operation.
Blind transfer:
1. Press key or Xfer soft key during the active conversation,
the call will be on hold.
2. Then enter the 2nd telephone number and press key
or Xfer soft key.
Call forward
1. Press Menu > Features > Call Forward.
2. Select the line, the type of forward, enter the destination
number and status, and press OK soft key.
Redial
1. Press key, redial a call number.
Regulatory Compliance
Federal Communication Commission (FCC) — USA
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received; including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed
and used in accordance with the instruction manual, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other
information, a product identifier in the format US: 3I1IPNANX303W. If requested, this number must be provided to the telephone company.
Fanvil Technology Co., Ltd
Website: www.fanvil.com
EMail: sales@fanvil.com support@fanvil.com
Tel: +86-755-2640-2199 Fax: +86-755-2640-2618
Add: 10/F Block A, Dualshine Global Science Innovation Center,
Honglang North 2nd Road, Bao'an District, Shenzhen, China
Call Mute
1. Press to Mute the microphone during the call.
2. Press again to un-mute the conversation.
Call list
1. Press key or Menu > CallLog > Local Call Logs.
2. Scroll through the list using .
3. To dial an entry, press Dial soft key or pickup handset or
press or .
Phonebook
Access phonebook:
1.Press Dir soft key or Menu > Contact > Local Contacts.
2.Select All Contacts
3. To dial an entry, press Dial soft key or pickup handset or
press or .
Add new entry:
1. Press Dir soft key > Local Contacts > Press Add.
2. Enter name and number and press OK soft key.
Do not disturb
1. Press DND soft key, or Menu > Features > DND.
2. Select the Mode and Type, and press Save soft key.
Voice mail
1. To access your voice mailbox, press or Menu
> Message > Voice Message, number of messages will be
indicated if provided by your server or pbx.
2. Select the line and press Play to call.
- 4 -
X301W
Quick Installation Guide
Fanvil Technology Co., Ltd
www.fanvil.com
V1.0
