Temptek CF Series Instruction Manual page 57

CF Series Portable Chiller : Air & Water-Cooled : 5 - 40 Tons
Audible Alarm: A simple buzzer alarm emits a loud
alarm.
Visual Alarm: Emits an audible sound and flashes
a beacon.
G. CONDENSER SCREEN: Optional for air-cooled
models only. The condenser screen is a filter for
the air-cooled condenser to prevent air borne
solids and debris from clogging the condenser.
Use non restrictive filter material with a MERV
rating of 2 - 3.

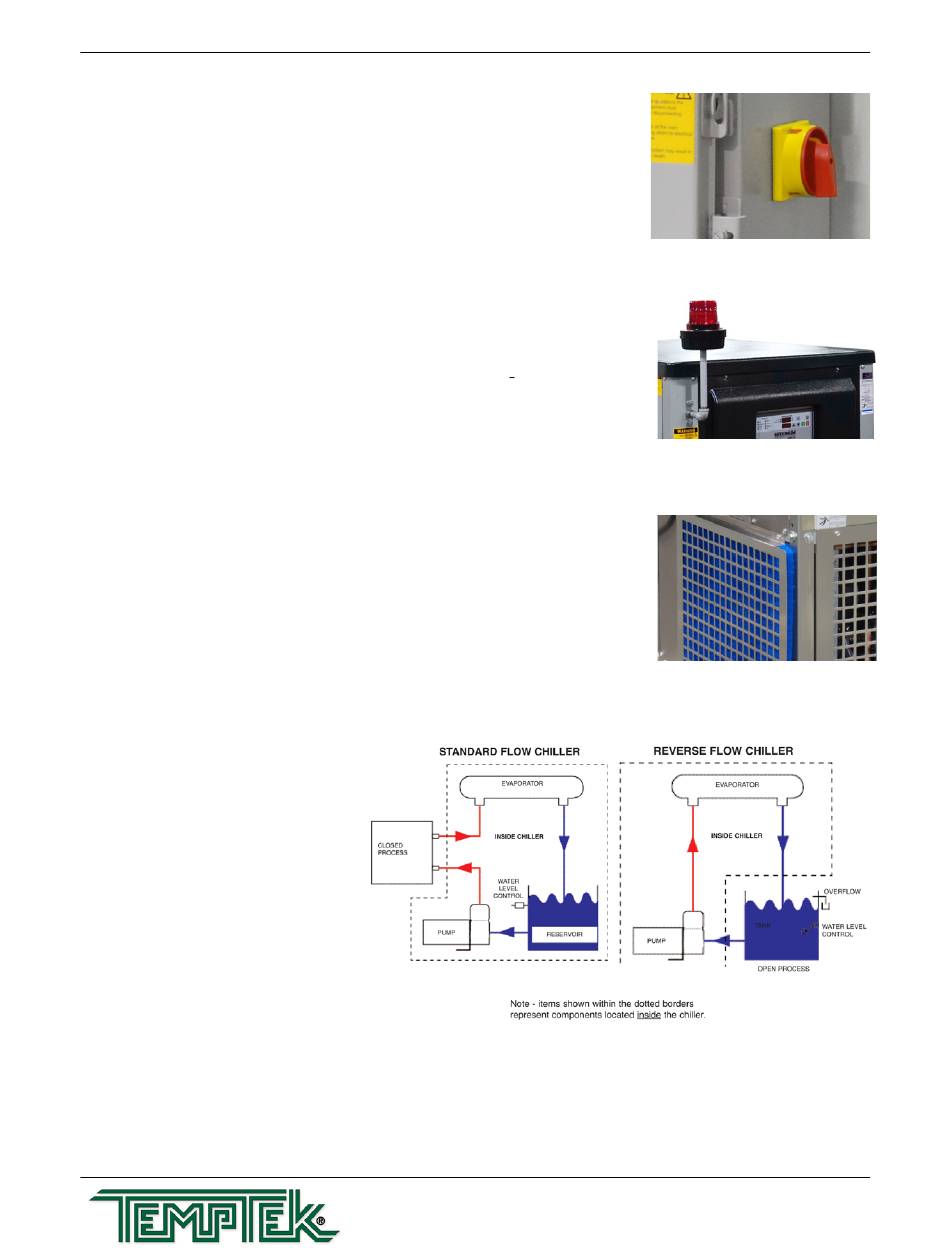

H. REVERSE FLOW PIPING: Reverse flow
chillers are designed specifically for open circuit
processes. Notice that the flow circuit remains
basically the same, but the process acts as the
chiller reservoir, and gravity returns water to the
pump suction. System water make-up and level
control is accomplished externally at the process
since the chiller contains no reservoir.
TEMPTEK, INC.
525 East Stop 18 Road Greenwood, Indiana 46142
317-887-6352 Fax: 317-881-1277
Email: service@Temptek.com
Non-fused disconnect show.
Typical Alarm Beacon.
Typical Condenser Screen.
Page: 57
