Instrument/Operation - Temptek CF Series Instruction Manual

CF Series Portable Chiller : Air & Water-Cooled : 5 - 40 Tons
3.3 INSTRUMENT / OPERATION

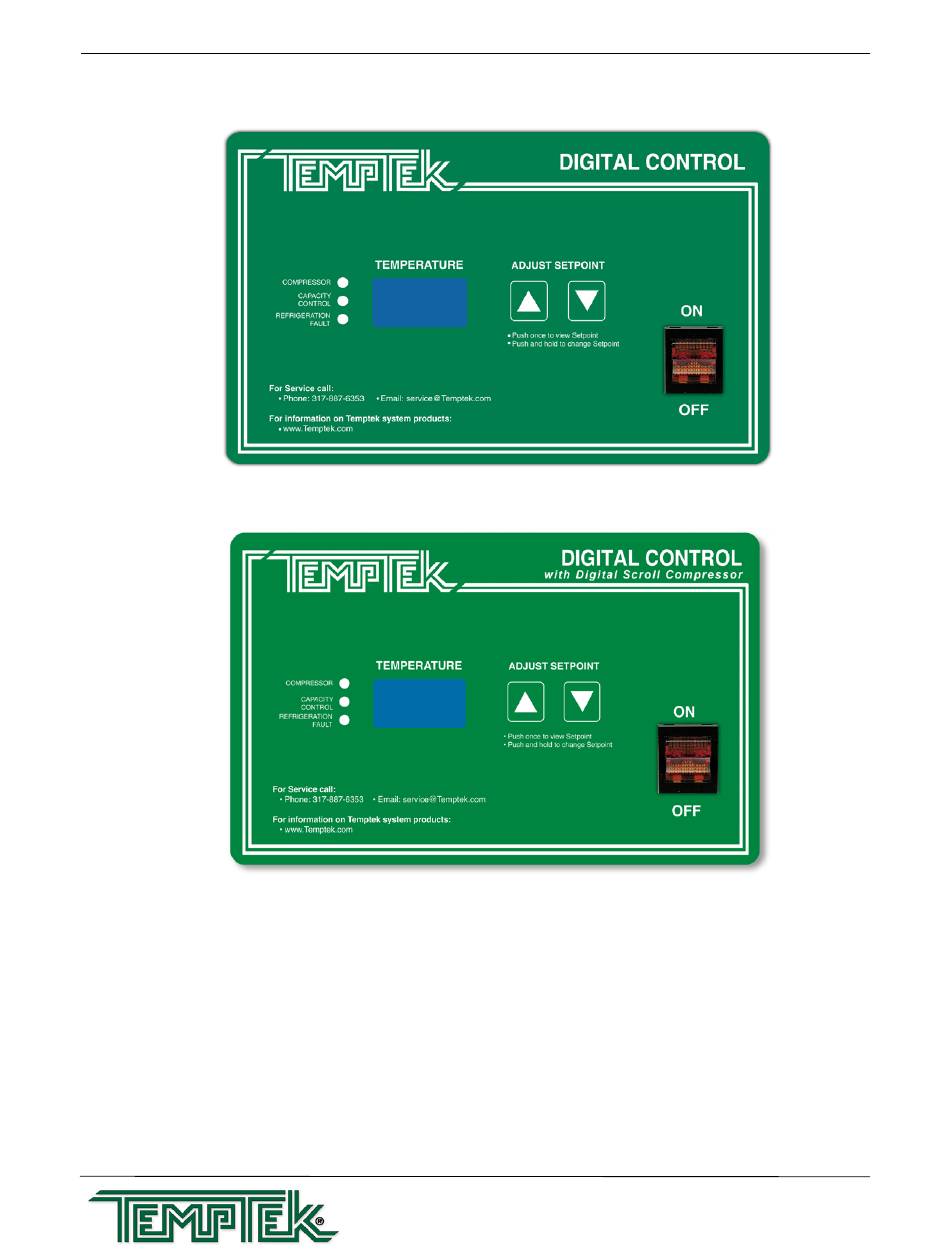

M1 Series Control. This control instrument is used on units with fixed displacement
compressors.
M1D Series Control. This control instrument is used on units with digital scroll
compressors.
A. INSTRUMENT START-UP
1.
2.
When the correct electrical power and adequate water supply pressure are
supplied to the unit, it is possible to start the unit.
Upon power up, the instrument displays "ChF" indicating that the unit is in
Fahrenheit temperature mode or "ChC" indicating that it is in Celsius mode.
The control then shows the current setpoint for approximately 2 seconds before
reverting to the To Process temperature. When power is supplied to the unit, the
ON/OFF switch will illuminate.
