Kolpin 98310 Product Instructions

Universal UTV Rear View Mirror
Product Instructions | Part No: 98310
Before you begin, read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation
instructions for future reference and parts ordering information.
5
4
3
2

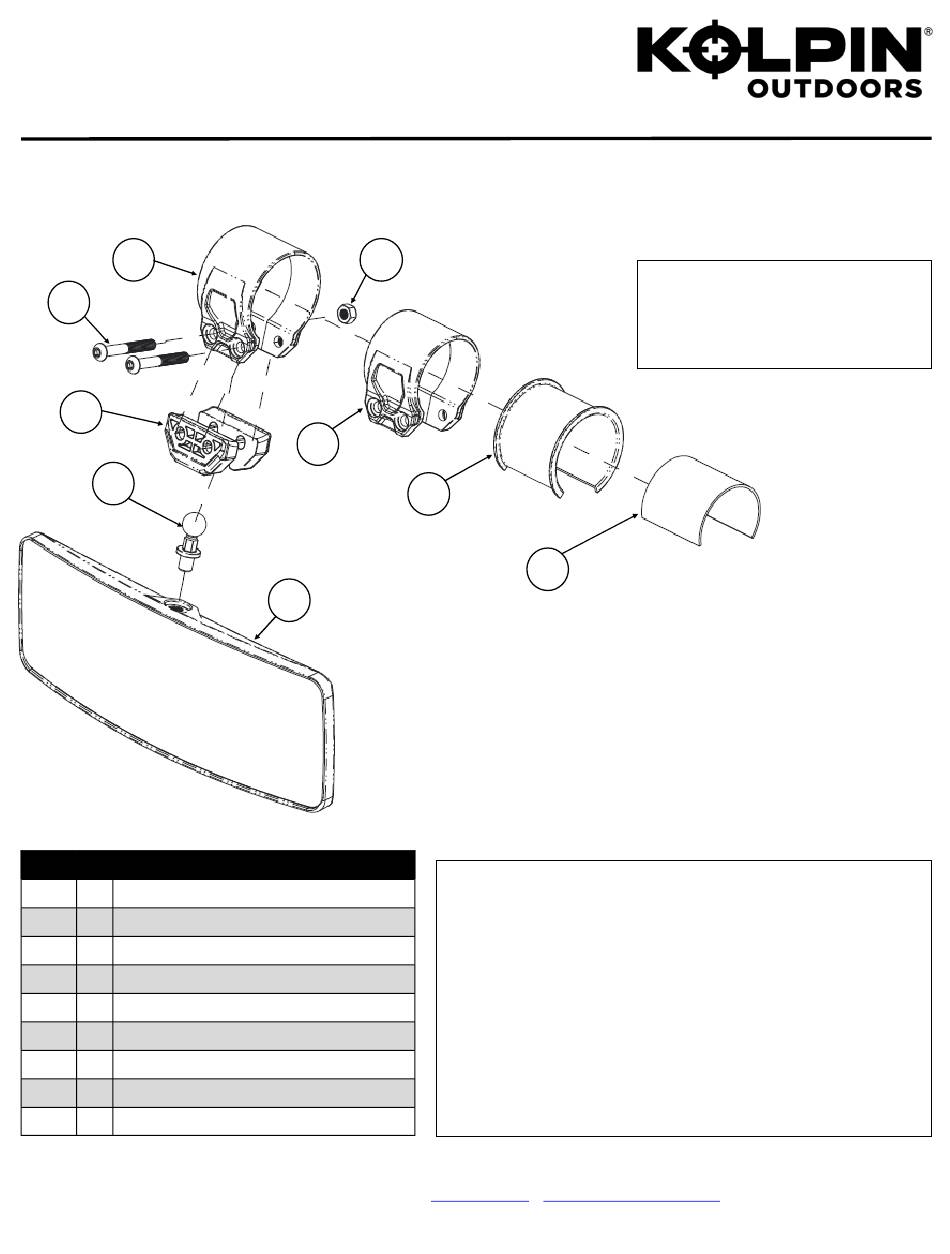

Kit contents:
Item Qty Part Description
1 1 Rearview Mirror Assembly, Center
2 1 Threaded Ball Stud
3 2 Tube Clamp Adapter
4 2 Button Screw, Zinc Plated, M6-1.0 x 45mm
5 1 2.0" OD Clamp
6 2 Hex Locknut, Zinc Plated, M6-1.0
7 1 1.75" OD Clamp
8 1 U-Type Rubber Gripping Pad
9 1 Flat Rubber Shim Pad
Call us to help, Toll Free 1-877-956-5746.
6
7
1
Kolpin Outdoors, Inc. | 9955 59th Ave N | Plymouth, MN 55442
(877) 956-5746 or (763) 478-5800 |
© 2018 Kolpin Outdoors Inc.
Note: If any hardware is missing, do not return to the store.
8
9
This mirror is designed to quickly and easily universal mount to any
tubular bar, specifically UTV roll cages. The kit fits tubing sizes from
1-5/8" to 2.0" in diameter. The clamp can be used in the vertical and
horizontal positions. The ball joint is easy to adjust and increases
Note, installation may be easier if certain items
viewing positions.
are removed from vehicle first.
Use and Care Information:
Check the accessory mounts frequently and retighten if necessary.
•
Replace this accessory with a new one if it is damaged or
•
discolored excessively.
When this accessory becomes dirty, rinse it thoroughly with cool
•
water to remove loose dirt, then wipe with a clean cloth or sponge.
Never use petroleum solvents such as gasoline, thinner, benzene,
acid or alkaline cleaners.
Rearview mirror is not intended for on-road use.
•
www.kolpin.com | customerservice@kolpin.com
1
REV 05
Tools and Supplies Required
5mm Hex Allen Wrench or Socket Bit
•
Ratchet (if socket is used)
•
