Notes regarding the operating manual............ B - 01
Safety............................................................. B - 03
Technical data................................................ B - 05
Description of the device ................................ B - 06
Operation ....................................................... B - 08
Maintenance and repair.................................. B - 13
Disposal ......................................................... B - 14
Declaration of conformity................................ B - 15
EN
Notes regarding the operating manual
Symbols
Operating manual - Infrared thermometer BP10
Danger!
Warns of a hazard which can lead to inju-
ries.
Risk from laser radiation!
Warns of injury risk from laser radiation.
Caution!
Warns of a hazard which can lead to
damage to property.
B - 1
Advertisement
Table of Contents
Related Manuals for Trotec BP10
Summary of Contents for Trotec BP10
- Page 1 Maintenance and repair........B - 13 Warns of injury risk from laser radiation. Disposal ............B - 14 Declaration of conformity........ B - 15 Caution! Warns of a hazard which can lead to damage to property. Operating manual - Infrared thermometer BP10 B - 1...
- Page 2 Legal notice The delivered product may vary from product images. ® This document was created with all due care. TROTEC This release replaces all previous versions. No part of accepts no liability whatsoever for possible mistakes or this publication may be reproduced without written per- ®...
-
Page 3: Safety
People who use this de- vice must have read and understood the operating ma- nual, especially the "Safety" chapter. Operating manual - Infrared thermometer BP10 B - 3... - Page 4 • The device is not a toy and does not belong in the • Keep a sufficient distance away from sources of heat! hands of children. Operating manual - Infrared thermometer BP10 B - 4...
-
Page 5: Technical Data
0 °C to 50 °C (32 °F to 122 °F) Humidity during operation Max. 80 % relative humidity Laser output < 1 mW (630–670 nm) Laser class Emissivity Adjustable between 0.10 and 1.0 Operating manual - Infrared thermometer BP10 B - 5... -
Page 6: Description Of The Device

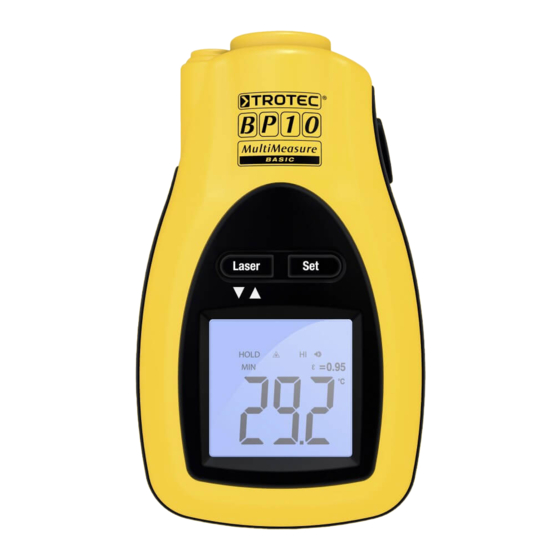

Description of the device Functional description The infrared thermometer BP10 uses an infrared sensor to measure surface temperatures without contact. So that you can accurately see where the device is measu- ring, a built in laser pointer can be switched on. The de- vice can show either the highest or lowest value of the measurement. - Page 7 12. Battery indicator 13. Change the values up/down 14. Shows the maximum or minimum value 15. Measurement is on 16. Display is frozen 17. Laser pointer on 18. Continuous measurement on Operating manual - Infrared thermometer BP10 B - 7...
-
Page 8: Operation
• To be able to gain exact measurement results on sur- faces which reflect heavily, stick matt masking tape to the surface or apply matt black paint with a very 150:25 300:50 600:100 high and known level of emissivity. Operating manual - Infrared thermometer BP10 B - 8... - Page 9 • Press the "Laser" button (5) four times to switch off The device switches off after approx. 10 seconds without the display backlight. being used. Operating manual - Infrared thermometer BP10 B - 9...
- Page 10 Changing the display °C - °F with the "MEAS" button (2). The "°C" and "°F" symbols (10) flash. Press the "Laser" button (5) to change between the units for the measured values. Operating manual - Infrared thermometer BP10 B - 10...
- Page 11 The "On" message appears in the display. An arrow (13) is shown. Press the "Laser" button (5) to decrease emissivity. In continuous measurement mode, the device stays running until the "Laser" button (3) is pressed again. Operating manual - Infrared thermometer BP10 B - 11...
- Page 12 Press the "Laser" button (5) again to switch off the tem- The "HI" symbol (7) is shown. perature alarm. An arrow (13) is shown. The "Off" message appears in the display. Press the "Laser" button (5) to decrease the maximum value. Operating manual - Infrared thermometer BP10 B - 12...
-
Page 13: Maintenance And Repair
Maintenance and repair Battery change Caution! Make certain that the surface of the device is dry and the device is switched off. Operating manual - Infrared thermometer BP10 B - 13... -
Page 14: Disposal
Do not modify the device or install any spare parts. For ment. After the end of its use, please dispose of this de- repairs or device testing, contact the manufacturer. vice in a manner appropriate to the relevant legal requirements. Operating manual - Infrared thermometer BP10 B - 14... -
Page 15: Declaration Of Conformity
Manufacturer: Declaration of conformity Trotec GmbH & Co. KG Phone: +49 2452 962-400 Grebbener Straße 7 Fax: +49 2452 962-200 in accordance with the EC Low Voltage Directive D-52525 Heinsberg E-mail: info@trotec.com 2006/95/EC, Annex III, Section B and the EC Directive 2004/108/EC about electromagnetic compatibility. - Page 16 TROTEC GmbH & Co. KG • Grebbener Straße 7 • D-52525 Heinsberg ® Tel.: +49 2452 962-400 • Fax: +49 2452 962-200 www.trotec.com • E-Mail: info@trotec.com...
