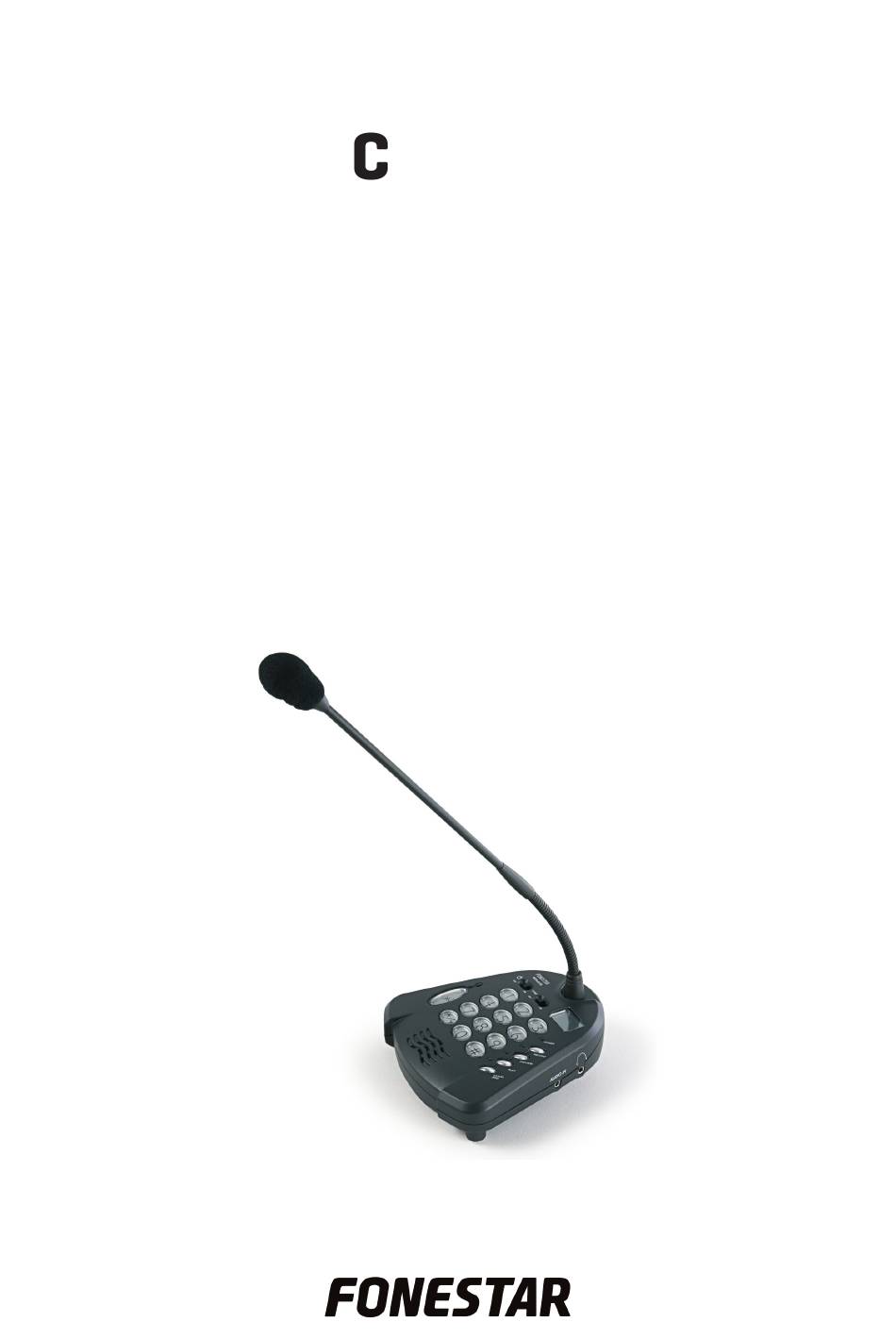

- Page 1 M H-221D MICROPHONE WITH MESSAGE DIGITAL PLAYER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Installation And Connection

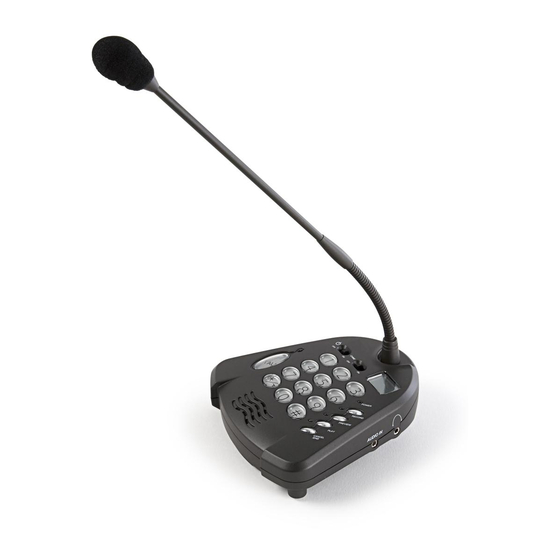

DESCRIPTION Desktop microphone with recorder/message player in MP3 format for direct paging or playback of recorded messages, with chimes. INSTALLATION AND CONNECTION Before making any connections switch off all the audio devices and disconnect them from the power supply. Fíg. 1 The basic connections are as follows: 1. -
Page 5: Controls And Functions
CONTROLS AND FUNCTIONS 1.- Microphone. 2.- On/Off switch. 3.- Chime selector. 4.- LCD display. 5.- Numerical keypad. 6.- POWER: LED power indicator. 7.- TALK: button to talk with LED indicator. 8.- RECORD: recording button with LED indicator. 9.- PREVIEW: preview button with LED indicator. 10.- PLAY: playback button with LED indicator. - Page 6 If you wish to cancel the selection press the CANCEL/END button, wait and re-enter the message number. Recording messages The microphone MCH-221D has a recording capacity of 88 messages (numbered 1 to 88) or 60 minutes of audio.The messages are recorded in a compressed MP3 format.Voice messages can be recorded using the microphone, from an external audio source through the AUDIO IN input or both at the same time.
- Page 7 Press the RECORD”button again. Wait until the LED recording indicator stops flashing and remains lit. The message number will remain on the display. d) Record the message using the microphone, through the audio AUDIO IN input or through both at the same time NOTE: the recording will not be heard through the loudspeaker to avoid feedback.
- Page 8 PC connection Through a connection with a PC via USB port compressed audio MP3 files can be transferred between the PC and the MCH-221D microphone. a) Connect the microphone and the PC using the USB cable. The PC will recognise the microphone as a removable disk drive.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Condensador electret unidirecional CAPSULE Microphone: 100-12,000 Hz/Music: 50-15,000 Hz RESPONSE -40 dB (V/Pa) at 1 kHz SENSITIVITY 3.5 mm jack, stereo line level AUDIO INPUT For monitoring recording and listening of transmitted messages SPEAKER MESSAGE RECORDING With microphone or audio input Up to 89 messages, 60 minutes of audio (64 MB) On/off switch CONTROLS... -
Page 10: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
