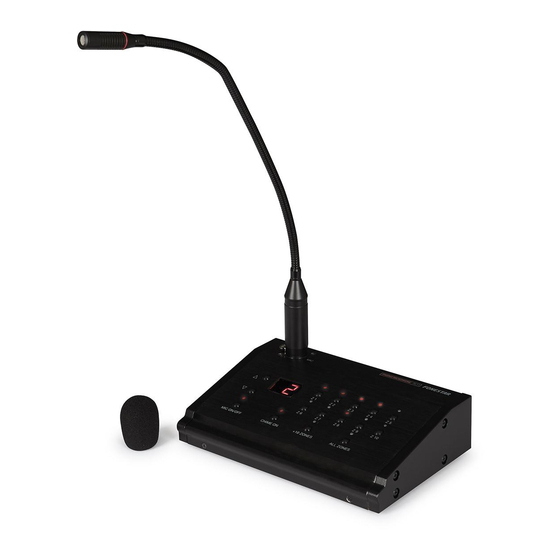

  • Page 1 Z -11 MICROPHONE WITH ZONE SELECTOR INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Front Panel

    - Microphone with zone selector for priority paging and chimes for zone system mod. ZSC-1110. - Selection of up to 300 zones. - Connection via Cat 5e cable. - The zone system mod. ZSC-1110 accepts up to 6 microphones mod. ZS-11. CONTROLS AND FUNCTIONS FRONT PANEL 1.- MIC: balanced microphone input, XLR connector.

  • Page 5: Rear Panel

    2.- DC 24 V: socket and euroblock terminals for connection of 24 V DC mains adapter. 3.- COM: audio and data input/output connectors to connect to the zone system mod. ZSC-1110 or other microphones mod. ZS-11. 4.- OUTPUT: microphone unbalanced line output, the LINE IN input and the chimes, 6.3 mm jack connector.

  • Page 6: Control Cable

    COM of the zone system mod. ZSC-1110 and to one of the sockets COM of the first microphone ZS-11. In the event of having more than one microphone, connect them to each other connecting the COM connector of the first to the COM connector of the second.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS ZS-11 CHARACTERISTICS Microphone with direct selection buttons from 10 zones. Selection of up to 300 zones. Microphone and chime volume control. MICROPHONE Electret condenser with gooseneck INPUTS 1 balanced mic., XLR 600 Ω 5 mV 1 unbalanced line, 6.3 mm jack 10 000 Ω 775 mV 1 zone selector mic., RJ-45...

  • Page 8: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out This document adds information, and never decreases the consumers’...
