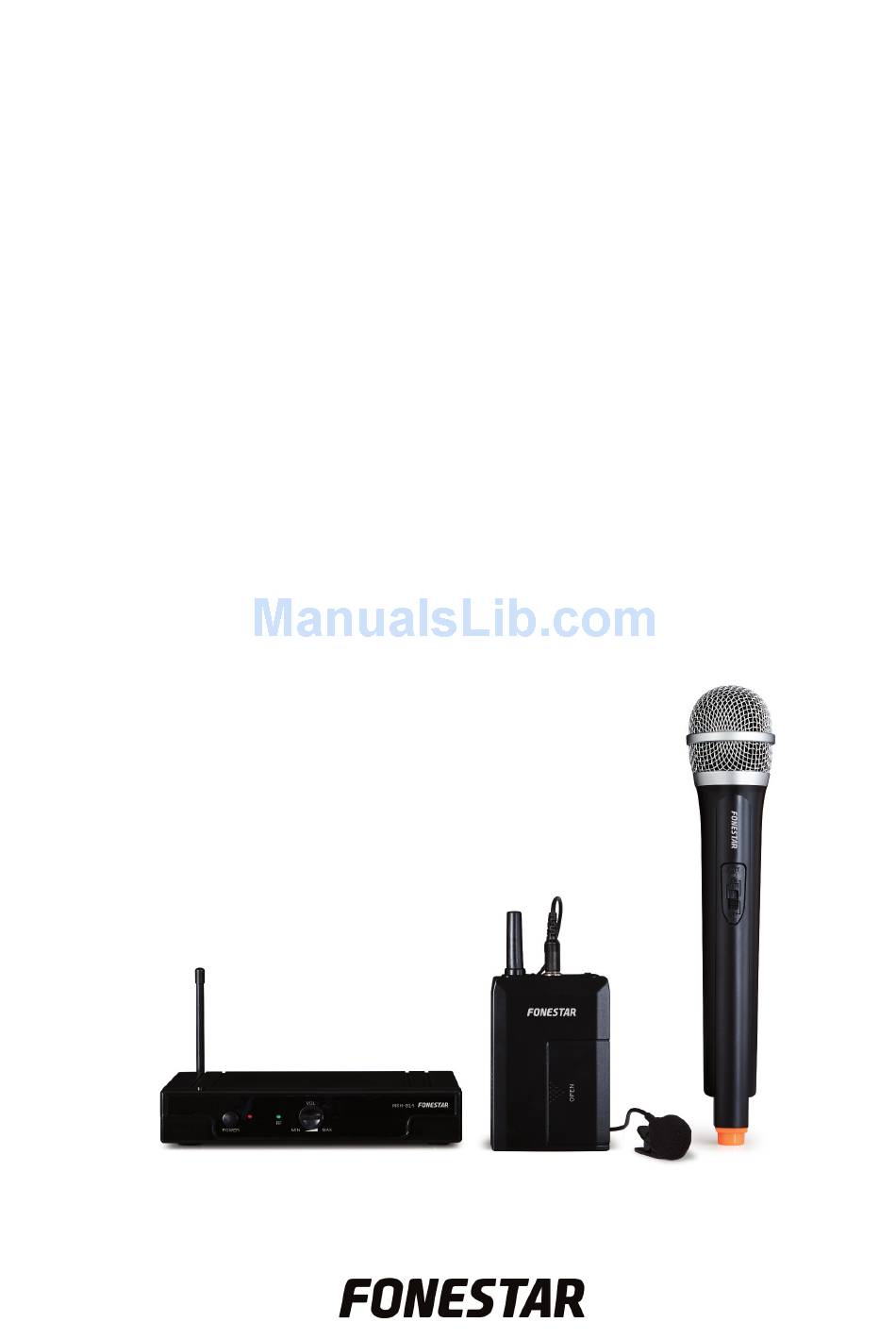

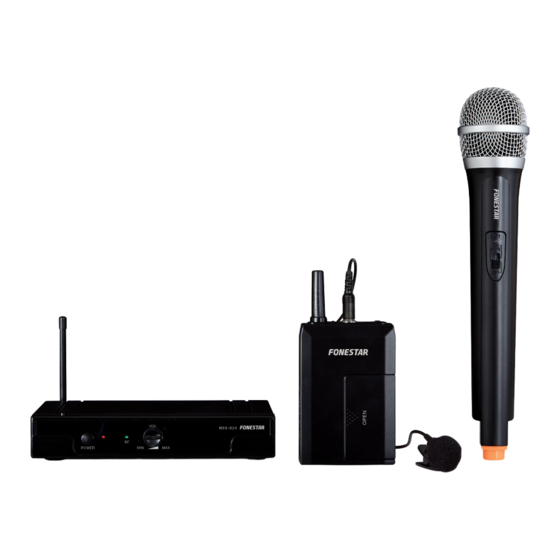

- Page 1 MSH-814, MSH-816 WIRELESS MICROPHONE SYSTEMS 16 PLL UHF 863-865 MHz CHANNELS INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions
The system has 16 transmission channels in the UHF 863-865 MHz band, with PLL frequency control which allows an interference free channel to be manually selected for optimum communication. CONTROLS AND FUNCTIONS INDIVIDUAL RECEIVER (mods. MSH-814 and MSH-816) 1.- POWER: receiver on/off switch. 2.- LED power indicator. - Page 5 BELT-PACK MICROPHONE (mod. MSH-814) 1.- Wireless belt-pack transmitter on/off switch. Furthermore, this selector has a third MUTE position to silence the audio output with the microphone switched on. 2.- MIC IN: 3.5 mm stereo mono jack connector for microphone connection.
-
Page 6: Instructions For Use
4.- Battery compartment: use two 1.5 V batteries type LR6-AA, preferably alkaline. When inserting the batteries make sure that the polarity is correct. 5.- Open the battery compartment cover to access the transmission channel selectors. Place them in the same position both on the transmitter and on the receiver for correct audio transmission. For more information, consult the INSTRUCTIONS FOR USE section. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MSH-814 MSH-816 CHARACTERISTICS Compact receiver with tie-clip Hand-held wireless microphone with microphone with unidirectional dynamic capsule. unidirectionalelectret condenser UHF receiver. capsule and wireless belt-pack transmitter. UHF receiver. RECEIVER/ 16 selectable PLL UHF 863-865 MHz channels MICROPHONE RESPONSE 50-15,000 Hz ± 3 dB... -
Page 8: Declaration Of Conformity
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
