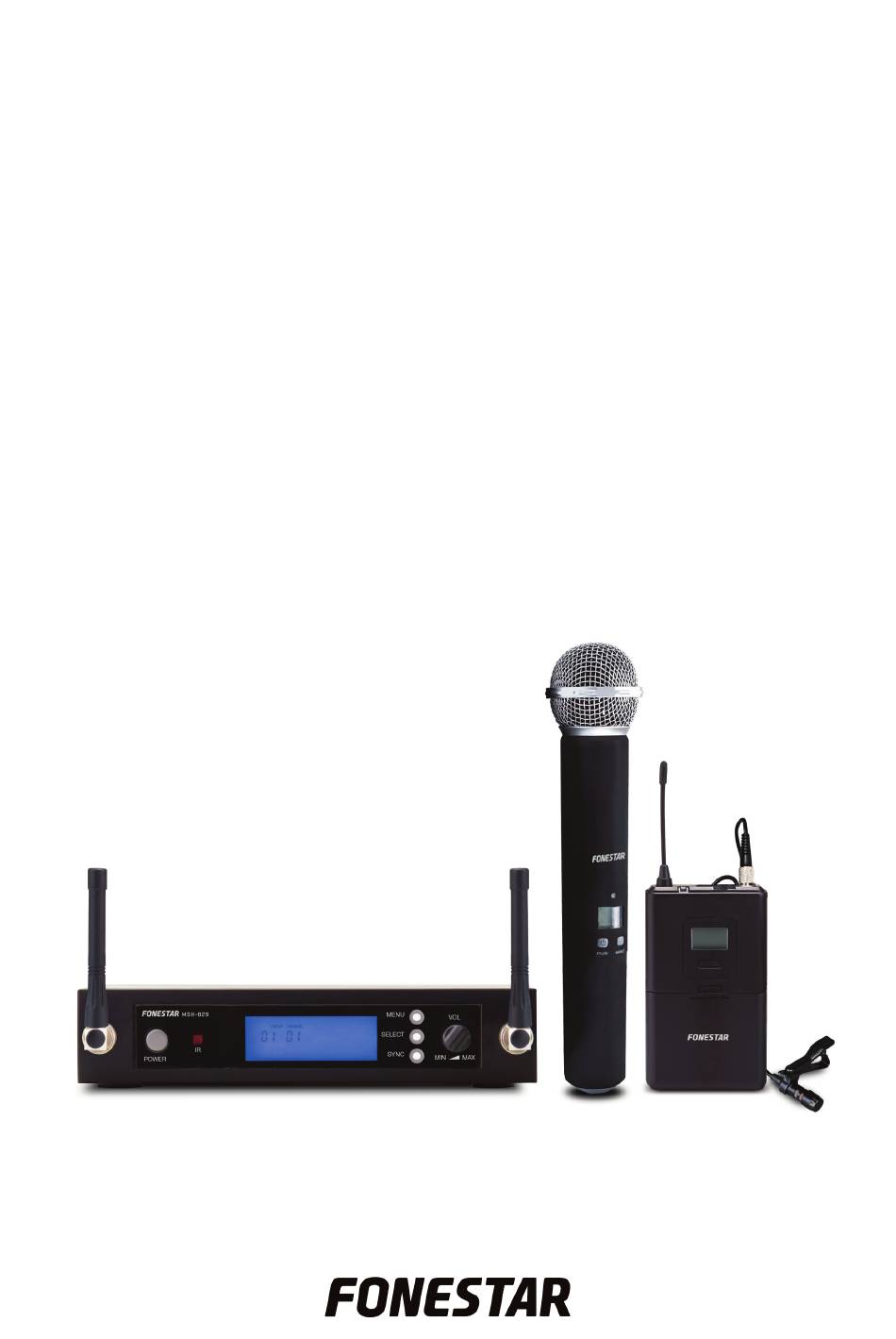

- Page 1 MSH-825, MSH-829 UHF WIRELESS MICROPHONE SYSTEMS INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

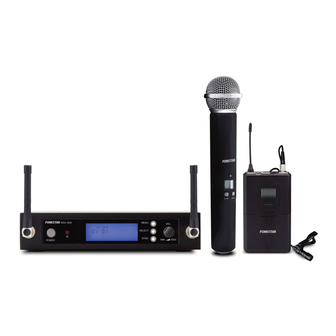

- Page 4 DESCRIPTION Wireless microphone system for audio signal transmission on the band UHF 863-865 MHz. Composed of a True Diversity receiver and hand-held wireless microphone or tie-clip microphone with wireless belt-pack transmitter, depending on the model. The system has 79 selectable transmission channels on the band UHF 863-865 MHz. Volume control in the receiver, channel to microphone IR transmission and receiver audio output level selection (line level or mic.
- Page 5 11.- Audio output level selector (line level or mic. level). 12.- Power supply input. Use the mains adapter provided. HAND-HELD MICROPHONE (MSH-825) 1.- Hand-held wireless microphone LED power indicator. It lights up in green when the microphone is switched on.
- Page 6 BELT-PACK MICROPHONE (MSH-829) 1.- Press and hold this button for a few moments to switch the microphone on/off. It also allows the audio output to be activated/deactivated (MUTE). 2.- Mini 3-pin XLR connector to connect the tie-clip microphone supplied. 3.- Antenna. 4.- Microphone LED power indicator: It lights up in green when the microphone is switched on.
- Page 7 CHANNEL TABLE TECHNICAL SPECIFICATIONS MSH-825 MSH-829 True diversity receiver with tie-clip CHARACTERISTICS True diversity receiver with hand- microphone with unidirectional held wireless microphone with electret condenser capsule and unidirectional electret condenser wireless belt-pack transmitter. capsule. Channel to microphone Channel to microphone transmission via IR.
- Page 8 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
