Page 1
Brand Logo reversed out of WaveLinx (WCL) black Installation Instructions INS # INS # WaveLinx Wireless Area Controller (WAC) Read all of the instructions thoroughly before installing or operating this product. This manual provides information on the installation and operation of the WaveLinx Wireless Area Controller (WAC). For proper operation it is important to follow the instructions.
Page 2

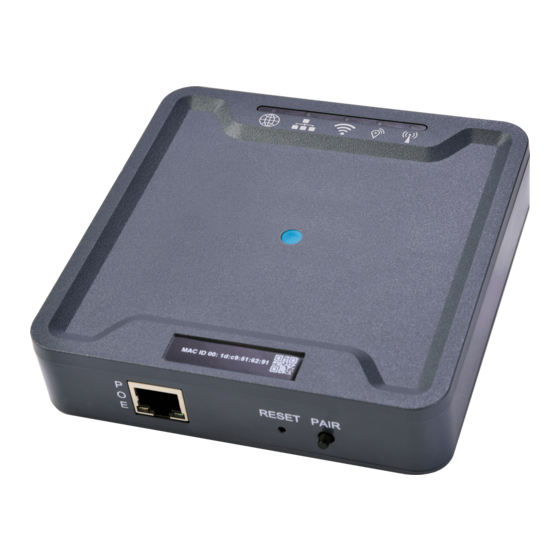

Figure 1. Stand Alone WAC installation Overview The Wireless Area Controller (WAC) is the main component of the Eaton WaveLinx Wireless Connected Lighting system. WaveLinx eliminates the cost and complexity of typical wireless control system commissioning while providing a wired, flexible, and reconfigurable wireless topology for on the fly space adjustments.
Page 3
Wireless INstinct Sensor (Fixture integrated occupancy sensor, ambient light sensor and control) ● ● WaveLinx Relay Switchpack with 0-10V ● ● WaveLinx Receptacle (Wall mounted power outlet) ● ● WaveLinx Room Based Sensor (Ceiling mounted PIR occupancy sensor) ● ● Wireless Area Controller EATON IB053008EN Installation instructions...
Page 4
Document the IEEE address found on the bottom of the WAC on the site floor plans. Connect to building network Create Construction Group Finalize programing using the WaveLinx Mobile App See WaveLinx Mobile Application user manual for more information ● ● EATON IB053008EN Installation instructions...
Page 5
Number of Zones per Area Number of Scenes per Area Wireless Area Controller LED Indicators The LED indicators can be used for diagnostics and troubleshooting diagnostics of the WaveLinx system. The table below gives you more information. EATON IB053008EN Installation instructions...
Page 6
When WAC is set to 802.15.4 formed are paired Grouping and Factory Defaults WaveLinx Communications Eaton Blue WAC is powered and WAC has no PoE running connection Wireless Area Controller rear panel Ethernet Port for power in and connection to building LAN for communications.
Page 7
Connected luminaires will dim to 10% and receptacles will turn OFF for 5 minutes Receptacle ● ● The controlled outlet will turn OFF for 5 minutes ● ● Wallstation ● ● All LEDs blink ● ● All wallstations in the default area control all luminaires together. ● ● EATON IB053008EN Installation instructions...
Page 8
WAC’s will automatically receive a DHCP IP address when connected to the building LAN ● ● WAC device name will be: Eaton-xxxxxxxxxxxx on the building network ● ● (where **** are all twelve characters of the unit MAC address found on the label at the bottom front of the WAC ●...
Page 9
Statically assigning the IP address of the WAC ● ● Wireless Connection - Building Wireless connection WAC device name will be: Eaton-xxxxxxxxxxxx ● ● (where **** are all twelve characters of the unit MAC address found on the label at the bottom front of the WAC ●...
Page 12
Warranties and Limitation of Liability Please refer to www.eaton.com/LightingWarrantyTerms for our terms and conditions. Garanties et limitation de responsabilité Veuillez consulter le site www.eaton.com/LightingWarrantyTerms pour obtenir les conditions générales. Garantías y Limitación de Responsabilidad Visite www.eaton.com/LightingWarrantyTerms para conocer nuestros términos y condiciones.
