Rhopoint Optimap PSD Operating Instructions Manual page 19

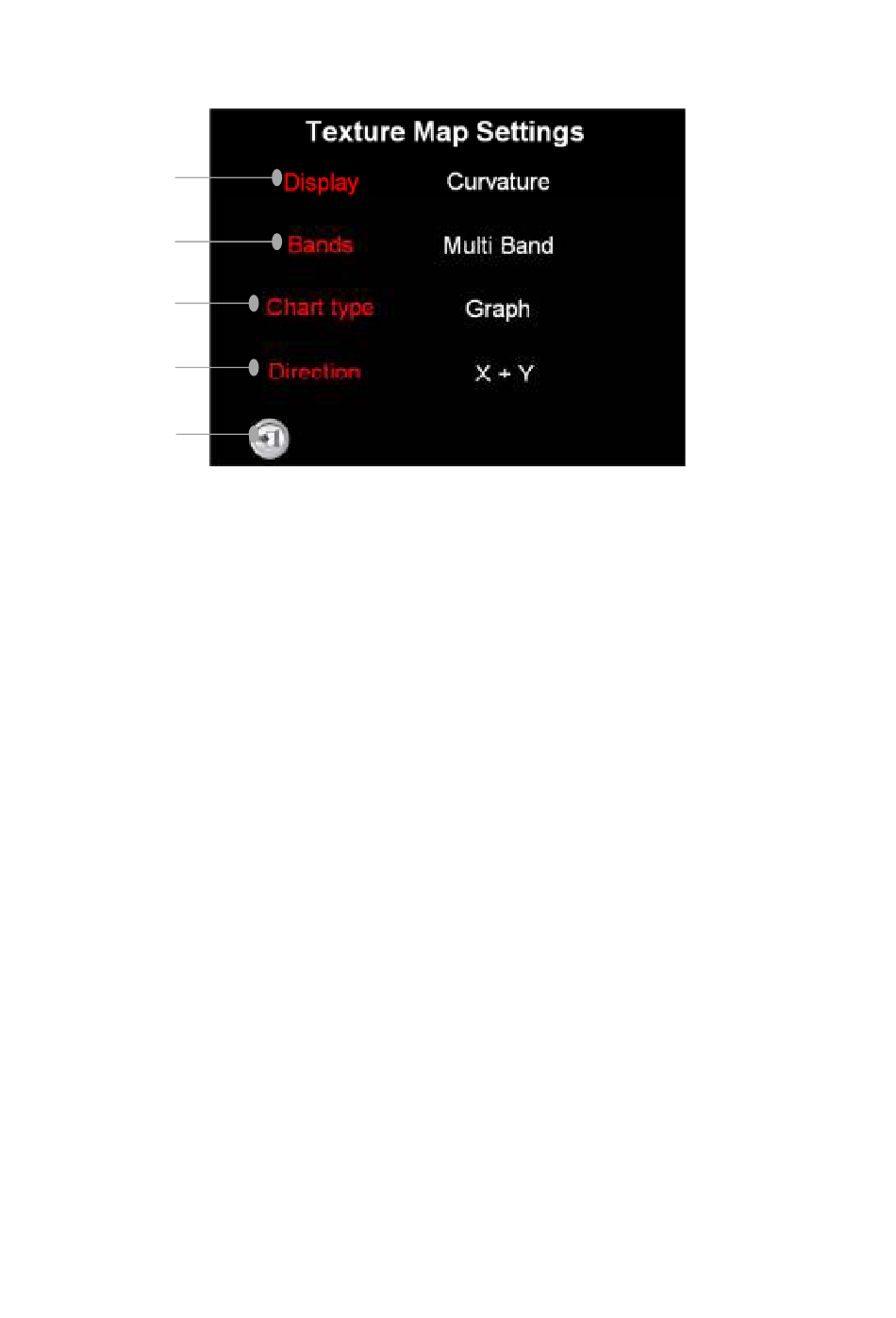

Pressing the Texturemap Settings icon accesses the Optimap configuration menu
Display
Mode
Band Select
Chart
Options
Display
direction
Exit
By pressing each of the red title areas the configuration can be changed as follows:-
Display Mode – Used to change the measurement units displayed on the Optimap.
Two options are available, Curvature (K) or Texture (T).
Band Select – Data can be displayed in either dual band or multi band format.
Chart Type – In the Results Window data can be displayed in either Graph or
Statistical format
Display Selection – Data can be displayed in either X, Y or X+Y directions.
Exit – Returns to the main measurement screen
18
