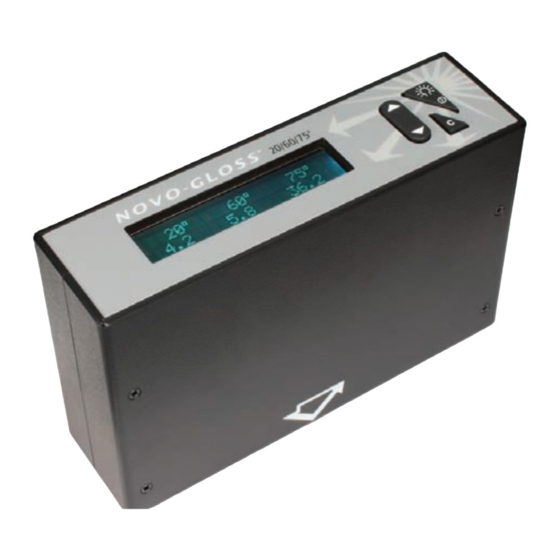

Novo-Gloss 20/60/75º Manual
274
Novo- loss 20/60/75° glossmeter
Operation Manual
Information in this document is subject to change without notice.
© 2013 Rhopoint Instruments Ltd. All Rights Reserved.
Novo-Gloss Trio™, Novo-Shade Duo™, Novo-Soft™, Novo-Gloss™,
Novo-Gloss Lite™, Novo-Curve™ and Rhopoint™ are either registered
trademarks or trademarks of Rhopoint Instruments Ltd. in the UK and
other countries.
Other product and company names mentioned herein may be
trademarks of their respective owner.
Rhopoint Instruments Ltd.
Rhopoint House, Enviro 21 Park, Queensway Avenue South,
St. Leonards-on-Sea, East Sussex, TN38 9AG, UK
Tel:
+44 (0)1424 739622
Fax:
+44 (0)1424 730600
Email:
sales@rhopointinstruments.com
Web Site:
www.rhopointinstruments.com
DRD1270-240 Issue H
June 2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novo-Gloss 20/60/75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rhopoint Novo-Gloss 20/60/75

  • Page 1 © 2013 Rhopoint Instruments Ltd. All Rights Reserved. Novo-Gloss Trio™, Novo-Shade Duo™, Novo-Soft™, Novo-Gloss™, Novo-Gloss Lite™, Novo-Curve™ and Rhopoint™ are either registered trademarks or trademarks of Rhopoint Instruments Ltd. in the UK and other countries. Other product and company names mentioned herein may be trademarks of their respective owner.
  • Page 2: Table Of Contents

    Novo-Gloss 20/60/75º Manual Index Page Storage and Handling Accessories Options Power The Control Panel Scroll Up/Down Angle Change/Calibrate/Cancel Measuring Gloss Calibration inspection and tile care Calibration Analysing Statistics Preferences EC Declaration of Conformity...
  • Page 3: Storage And Handling

    Novo-Gloss 20/60/75º Manual Storage and Handling • This instrument contains precision optics and electronics. You should avoid knocking or dropping the device as the resulting impact could cause serious damage. • In some circumstances the optical components in the instrument could become misted as a consequence of temperature change.
  • Page 4: Options

    Zero calibration foam in integrated holder Power The Novo-Gloss 20/60/75° is powered with 4 x AA dry cell batteries. To install or replace the batteries remove the battery panel. Insert the new cells in the battery cartridge and place in the battery compartment, replace the lid.
  • Page 5: Angle Change/Calibrate/Cancel

    This value has been stored in the memory and the number of stored readings increased by one. Using the move and read feature The Novo-Gloss 20/60/75° has a unique feature to quickly assess large The ‘READ’ key to take a surfaces for gloss variation.
  • Page 6: Calibration Inspection And Tile Care

    To assess the rest of the sample continue to HOLD the READ/SELECT key and carefully slide the Novo-Gloss 20/60/75° to the area to be inspected. The value in the display will update IN REAL TIME to reflect the gloss value of the surface under the aperture at that time.
  • Page 7: Analysing Statistics

    Novo-Gloss 20/60/75º Manual Calibrate all angles To simultaneously calibrate all three angles, use the “C” key to cycle through the read modes until the three angle 20 60 75 degree read mode is displayed. The “C” key should then be pressed and held until the calibration procedure starts.
  • Page 8: Preferences

    It is often desirable to calibrate using a standard that closely matches the gloss of the samples to be tested. Rhopoint supply a range of gloss, semi-gloss and matt tiles to suit all applications. To calibrate the Novo-Gloss 20/60/75° using a purchased tile, the calibration value in the instrument memory must be adjusted to match the assigned value of the new tile.
  • Page 9 Novo-Gloss 20/60/75° instrument Language English, French, German, Spanish, Dutch, Italian and Turkish are the standard languages available in the Novo-Gloss 20/60/75°; more languages will be added as they become available, visit www.rhopointinstruments.com for a full list or to request additional language support.
  • Page 10: Ec Declaration Of Conformity

    Novo-Gloss 20/60/75º Manual EC Declaration of Conformity Rhopoint Instruments Ltd. Rhopoint House, Enviro 21 Park, Queensway Avenue South, St. Leonards-on-Sea, East Sussex, TN38 9AG, UK Declare under our sole responsibility that the product Novo-Gloss 20/60/75° To which this declaration relates is in conformity with the following standards...
  • Page 11 Rhopoint Instruments Ltd have arranged a means for our customers to have products that have reached the end of their useful life safely recycled. We encourage all end users to us at the end of the product's life to return their purchase to as for recycling as per Article 9 of the WEEE Directive.
