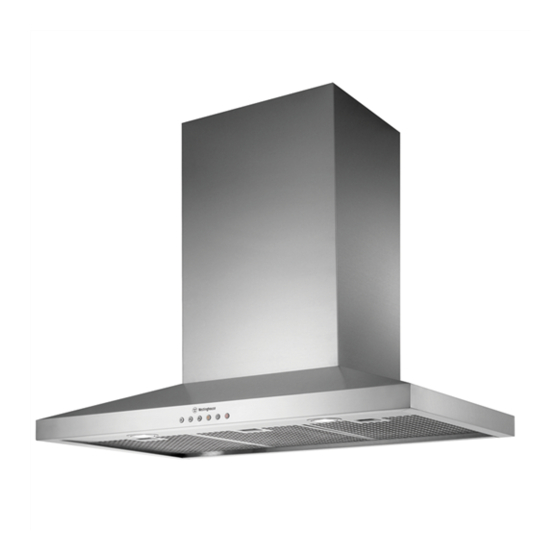

Canopy rangehood

Hide thumbs Also See for WRG970CS:

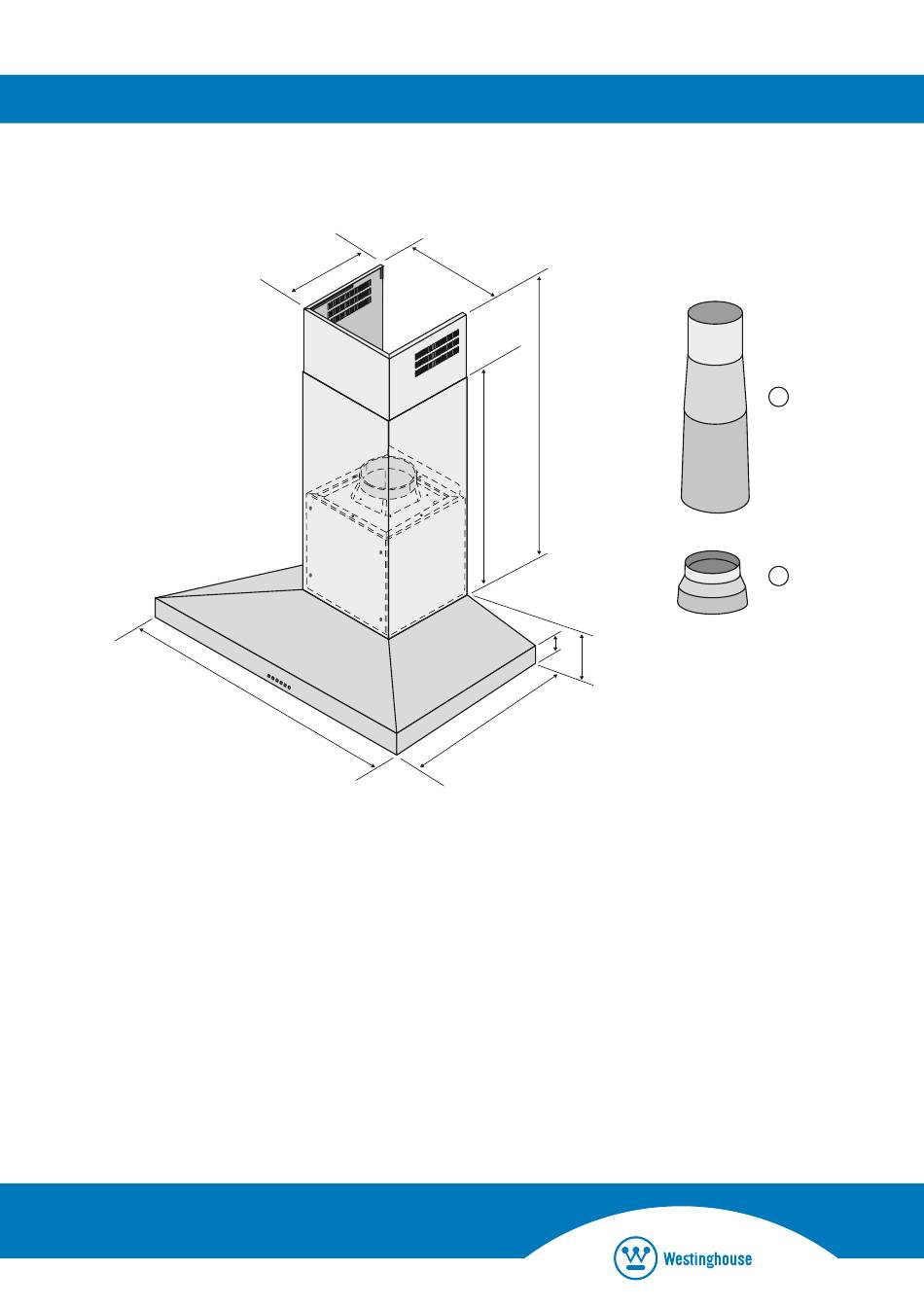

DIMENSION AND INSTALLATION GUIDE

MODEL:

WRG970CS

Note: The fan housing exhaust outlet is 163mm in diameter. Use duct transition or

flexible pipe supplied with the canopy rangehood as a reducer if using 150mm

optional ducting accessories. (See page 3 for optional ducting accessories).

Note: Supplied with unit: 1) Flexible exhaust pipe

*1 200mm extension flue cover is available if required where high ceilings are present. (Model No. AR600FS)

All measurements in millimetres.

328mm

900mm

O163mm

2) Exhaust duct transition

391mm

1175mm

(maximum)

593mm

45mm

130mm

520mm

canopy rangehood

2008 Electrolux Home Products Pty Ltd

WDIMWRG970CS Current as at Jun 2008

Table of Contents

Need help?

Do you have a question about the WRG970CS and is the answer not in the manual?

Page 1 DIMENSION AND INSTALLATION GUIDE canopy rangehood MODEL: WRG970CS 328mm 391mm 1175mm (maximum) 593mm 45mm 130mm 900mm 520mm Note: The fan housing exhaust outlet is 163mm in diameter. Use duct transition or flexible pipe supplied with the canopy rangehood as a reducer if using 150mm optional ducting accessories.
Page 2 DIMENSION AND INSTALLATION GUIDE canopy rangehood MODEL: WRG970CS 344mm (rear to wall) 303mm ceiling mounting 37mm bracket 155mm 155mm 46mm ceiling (rear view of hood) 168mm 168mm wall mounting brackets anti-tilt fixing points hood base 45mm 41mm 273mm minimum and maximum dimension...
Page 3 DIMENSION AND INSTALLATION GUIDE canopy rangehood MODEL: WRG970CS AR150RC AR150F AR600FS AR150WV AR600RK AR600CF Note: Accessories are to be purchased separately. part numbers description AR150RC 150mm G/Bond Roof Cowl AR150F 150mm G/Bond Flue 1200mm AR150WV 150mm Wall Vent + Flexi Duct...
