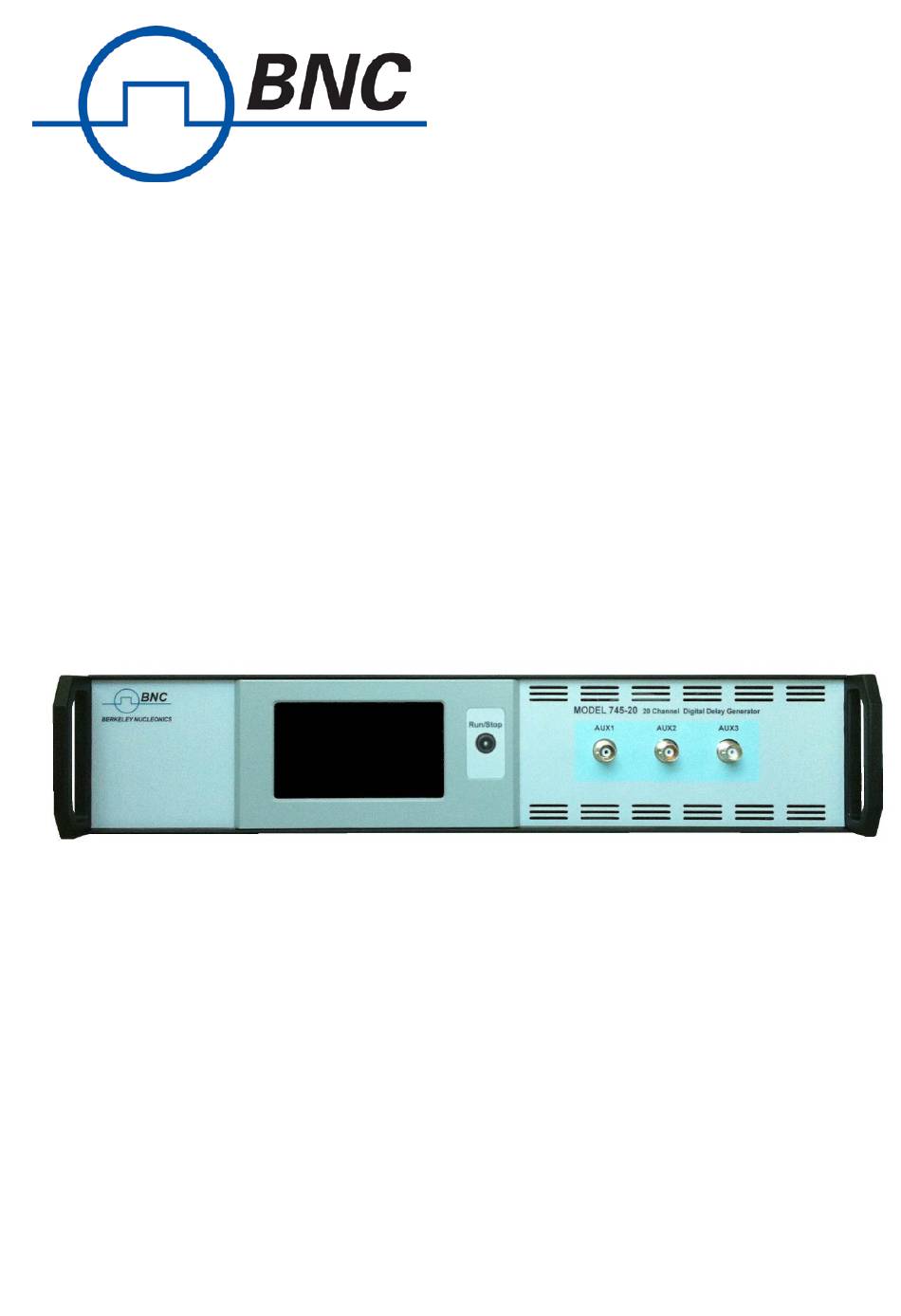

- Page 1 NUT 063 Ed. 2.2 September 2015 User's Manual MODEL 745-20C 20 CHANNELS DIGITAL DELAY GENERATOR • 20 independent delay channels • 100 ps delay resolution (1 ps option) • 10 seconds delay range • Adjustable output level, polarity and width...
-
Page 2: Table Of Contents
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 TABLE OF CONTENTS ................................... 4 DITION GENERAL INFORMATION ..........................5 1.1................................5 VERVIEW 1.2. – B ..........................6 RINCIPLE LOCK DIAGRAM SPECIFICATIONS ..............................7 INSTALLATION ..............................9 3.1.1. - Page 3 User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.11. IP adress ..............................26 6.2.12. Netmask adress ............................26 6.2.13. Gateway adress ............................27 6.3........................28 EMOTE CONTROL VIA WEB PAGE SOFTWARE ................................30 Berkeley Nucleonics Page 3 / 31...
-
Page 4: Edition
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 Edition Written by : Date & Visa : D. MONNIER-BOURDIN Technical manager Edition Date Description January 2014 Creation October 2014 Operating description updates April 2015 Minor correction September 2015... -
Page 5: General Information
Delays up to 10 seconds may be programmed with 100ps resolution (1ps optional) and a channel to channel jitter of less than 50 ps RMS. BNC outputs deliver delayed pulses with adjustable level (3 to 6V) and width into 50Ω load. A polarity control allows to have inverted pulses. -
Page 6: Principle - Block Diagram
September 2015 1.2. Principle – Block diagram The principle of the MODEL 745-20C programmable delay generator is described in the figure bellow. The sequence follows 3 phases: 1) After an insertion delay, a reference pulse appear at the “T0” output, 2) Following the reference, a pulse is generated on each channel after the specified delay, 3) At the end of the sequence, after last delayed pulse outputs, the delay generators are initiate. -
Page 7: Specifications
Reference output (T0) Rise time < 5 ns, fall time < 10 ns, width 100ns to 300 ms Connector type BNC Frequency: CLK RF / 2, > 1V / 50 Ω, Connector type BNC CLK RF / 2 (output option) Interface... - Page 8 User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 Outputs (option 2) Positive pulse into 50 Ω, Delayed output (T1 to T20) Amplitude 2.5 to 10 V , resolution: 10 mV, Rise time : < 1 ns, Fall time: < 5 ns,...
-
Page 9: Installation
The MODEL 745-20C can be operated where the ambient air temperature is 0°C to 35°C and can be stored in ambient temperature from - 10°C to + 60°C. The MODEL 745-20C is cooled by air circulation. To prevent instrument damage a clearance of 2 inches on the side and 1 inch on the rear must be maintained for proper cooling. -
Page 10: Interfaces Description
The MODEL 745-20C front panel is depicted in the following figure. 4.1.1. Local interface The MODEL 745-20C is equipped with a touch screen (option) on the front panel for local operation. 4.1.2. AUX 1 to 3 The three BNC connectors located on the front panel are used for extension to 40 channels. They are unused in the MODEL 745-20C version. -
Page 11: Power Switch
4.2.1. Power switch The unit is turned ON by switching the red button located above the mains connector. The MODEL 745-20C can be operated from 90 to 240 V at a line frequency of 50 – 60 Hz. 4.2.2. Ethernet port (LAN) The “LAN”... -
Page 12: Local Operation
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 OCAL OPERATION 5.1. Main menu After power on, the main menu appears on the touch screen as depicted below. PULSE OUTPUT displays the settings of each channel T0 to T20. -
Page 13: Sub-Menu "Pulse Setup Output
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 5.2. Sub-menu “PULSE SETUP OUTPUT” Tapping in the “PULSE OUTPUT” window on the main menu will open a sub-menu with the channel settings depicted in the following figure. DELAY parameter is the delay of the channel, relative to T0, in ps. - Page 14 User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 Positive : quiescent level of the channel is 0V POLARITY Negative : quiescent level of the channel is at amplitude level T1 to T20 DELAY 0 to 9 999 999 999 999 ps in 100 ps steps or 1 ps steps (option) The default values of the equipment are the following: •...
-
Page 15: Sub-Menu "Delay
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 5.1. Sub-menu “Delay” Tapping in the “DELAY” window on the “PULSE SETUP OUTPUT” sub-menu will open another sub-menu with the delay settings of the channel depicted in the following figure. -
Page 16: Sub-Menu "Width
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 5.3. Sub-menu “Width” Tapping in the “WIDTH” window on the “PULSE SETUP OUTPUT” sub-menu will open another sub-menu with the width settings of the channel depicted in the following figure. -
Page 17: Sub-Menu "Frequency
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 5.5. Sub-menu “Frequency” Tapping in the “F1”, “F2” or “F3” window on the “INTERNAL FREQUENCIES SETUP” sub-menu will open another sub-menu with the corresponding frequency settings depicted in the following figure. -
Page 18: Sub-Menu "Ip Address
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 5.7. Sub-menu “IP Address” Tapping in the “IP Address” window in the “NETWORK ADDRESS SETUP” sub-menu will open another sub-menu with the IP address setup as depicted in the following figure. -
Page 19: Remote Control
Query the instrument’s IP gateway with: GW? ⇒ :GW XXX.XXX.XXX.XXX 6.2. Command structure MODEL 745-20C is compatible with all command of the LIL timing system. Each command description has at least some of the following items: • Full command syntax •... -
Page 20: Identification
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.1. IDENTIFICATION Syntax: *IDN? Form: Query Description: Query instrument identification. Response gives instrument model, serial number and firmware version. Parameter: RST value: Example: Answer: GFTy/MIPSI,MODEL 745-20C,SN54001/000000,V1.0 Instrument model: MODEL 745-20C Serial number: 54001 Firmware version: 1.0... -
Page 21: Trigger
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.3. TRIGGER Syntax: TRIG T<n>,<Tg> TRIG? T<n> Form: Set & Query Description: Query trigger mode on channel <n> or set channel <n> trigger mode to Frequency 1 (F1), Frequency 2 (F2), Frequency 3 (F3), Single Shot 1... -
Page 22: Width
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.5. WIDTH Syntax: WIDTH T<n>,<W> WIDTH? T<n> Form: Set & Query Description: Query channel <n> width or set channel <n> at specified <W> width Parameter: <n>: Channel number (0 to 20) <W>: Width (in nanosecond) -
Page 23: Frequencies
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.7. FREQUENCIES Syntax: FREQ F<n>,<F> FREQ? F<n> Form: Set & Query Description: Query frequency of internal Frequency <n> or set frequency of internal Frequency <n> Parameter: <n>: 1, 2 or 3 (Frequency 1, Frequency 2 or Frequency 3) <F>: Frequency (in Hertz) -
Page 24: Arm
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.9. ARM Syntax: ARM? Form: Set & Query Description: Query state (enable or disable) of “TRIG IN” input or enable/disable “TRIG IN” input for single shot mode (Same function as the “RUN/STOP”... -
Page 25: Stat
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.10. STAT Syntax: STAT CLEAR STAT? <XXXX> Form: Set & Query Description: Query equipment information Parameter: <XXXX>: TEMP (Temperature in °C) CLK (Clock source, internal or external) POW (+6V, -6V, +3.3V, +1.8V, +11V power supply level in V) TRIG (Trigger feedback for channel 1 to 20. -
Page 26: Ip Adress
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.11. IP adress Syntax: IP <x.x.x.x> Form: Set & Query Description: Query IP Address or set it Parameter: <x.x.x.x>: IP address RST value: Last value set Example: Set IP address to 172.17.23.6: IP 172.17.23.6 Query IP address: IP? (Answer: :IP 172.17.23.6) -
Page 27: Gateway Adress
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 6.2.13. Gateway adress Syntax: GW <x.x.x.x> Form: Set & Query Description: Query Gateway Address or set it Parameter: <x.x.x.x>: GW address RST value: Last value set Example: Set Gateway address to 172.17.23.7: GW 172.17.23.7 Query Gateway address: GW? (Answer: :GW 172.17.23.7) -
Page 28: Remote Control Via Web Page
September 2015 6.3. Remote control via web page With Internet explorer or Firefox, you can open a web page to drive the MODEL 745-20C at the IP address specified: The “PULSE OUTPUTS” area allows controlling each output from T0 to T20:... - Page 29 User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 The “SYNC MESSAGE” area allows to: Change the values of F1 to F3 Toggle between Run and Stop states (“Run” button lights green when in “Run” state) Perform a single shot (“Trigger” button lights green when a single shot occurred, and can be erased by clicking on the state led of the channels) The “STATUS”...
-
Page 30: Software
September 2015 OFTWARE The MODEL 745-20C comes with DLL drivers for Windows XP or Seven. Our primary objective in designing software drivers is to get the user up and running as quickly as possible. Software drivers are provides as a Dynamic Link Library (DLL) which is compatible with most 32-bit windows based development software. -
Page 31: User's Manual - Model 745-20C Nut 063 Ed. 2.2 September
User's Manual - MODEL 745-20C NUT 063 Ed. 2.2 September 2015 The Labview driver front panel is shown below : Berkeley Nucleonics Page 31 / 31...
