Black Box LPB316A Specification & Installation Instructions

16-Port 802.3at/af PoE Switch
PC
Mac Server
®

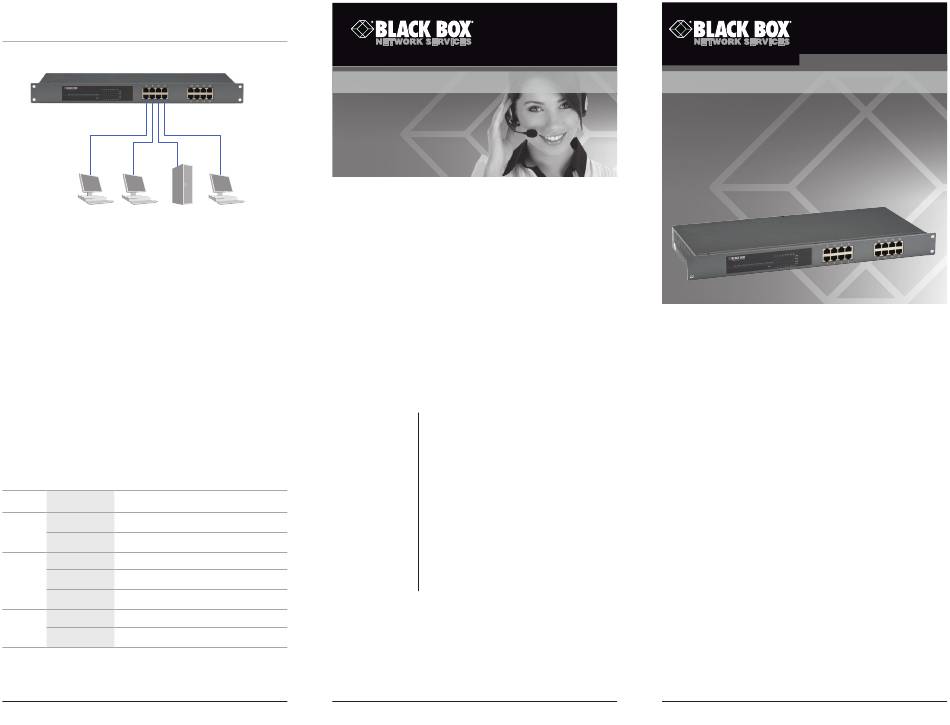

Figure 3-2. Application #2.
3.3 Connecting a Powered Device to the
Switch Using Power over Ethernet (PoE)
Using a CAT5 cable, connect the powered device (PD)
to any of the 16 ports on the switch. The switch will
detect the PD and supply 48-V power to the device
over the CAT5 cable.
NOTE: The PD must comply with the IEEE 802.3at/af
standard.
4. Operation
LED indicators on the 16-Port 802.3at/af PoE Switch's
front panel show status.
Table 4-1. LEDs and their Functions.
LED Status Description
On Power to the unit is on
Power
Off Power to the unit is off
On Port is connected
Off No connection to port
LAN
Flashing Data is transmitting or receiving
On Port is linked to Powered Device (PD)
PoE
Off No Powered Device (PD) is connected
724-746-5500 | blackbox.com
LPB316A
Black Box Tech
Support: FREE! Live.
24/7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Workstation
Customer
Support
Information
© Copyright 2011. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Mac is a registered trademark of Apple Computer,
Inc. Any other trademarks mentioned in this manual are acknowledged
to be the property of the trademark owners.
LPB316A, rev. 1
Page 5
Order toll-free in the U.S.:
Call 877-877-BBOX
(outside U.S. call 1-724-746-5500)
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
724-746-5500 | blackbox.com
16-Port 802.3at/af PoE Switch
Add 16 PoE devices to your

BLACK BOX

®
existing 10/100 LAN.
1. Specifications
Buffer Memory — 1.25 Mbits
Certifications — FCC Class A
Filtering/Forwarding Rates —
100-Mbps port: 148,800 pps;
10-Mbps port: 14,880 pps
MAC Address — 4 K
Transmission Method — Store-and-forward
Transmission Media —
10BASE-T: CAT3, 4, 5 UTP/STP;
100BASE-TX: CAT5 UTP/STP
Standards — IEEE 802.3at/802.3af, IEEE 802.3i
10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x
flow control
Connectors — (16) RJ-45
Indicators — (33) LEDs: Per port: (1) LINK/ACT LED,
(1) PoE ACT/Status LEDs; Per unit: (1) Power LED
Temperature Tolerance — Operating: +32 to
+104° F (0 to +40° C);
Storage: -4 to +158° F (-20 to +70° C)
