- Page 1 INSTALLATION MANuAL TRIPLE DOG DOWNLOADER Vehicle Application Triple Dog Part # OutLook Combo# ‘03-’05 Dodge 5.9L Cummins 40500 42500 ‘06-’07 Dodge 5.9L Cummins 40500 41500 ‘03-’07 Ford 6.0 L Power Stroke 40500 41500 ‘01-’05 GM 6.6L Duramax 40500 43500 ‘06-’07 GM 6.6L Duramax...
-
Page 2: Table Of Contents

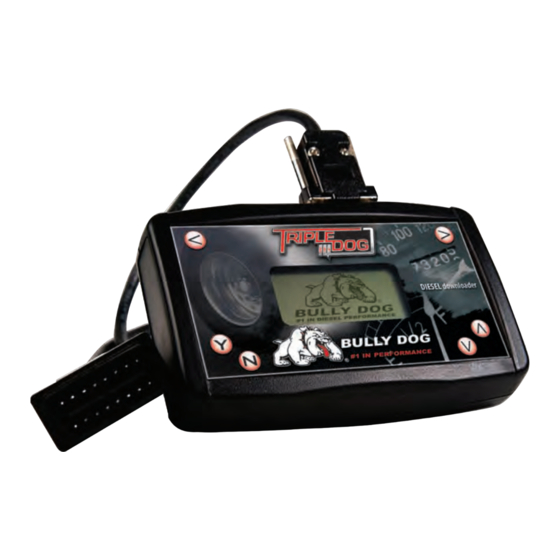

TABLE OF CONTENTS TROUBLESHOOTING: If you have questions during the installation of this product, please visit www.bullydog.com/Product_Updates.php. The latest version of these instructions can be found at the same location. Please review the Troubleshooting section on page 17 before calling technical support to cover most common issues. Technical support is available by calling 866-bullydog (866-285-5936). - Page 3 The Triple Dog Downloader, manufactured exclusively by Bully Dog Technologies is the only downloader on the market that allows on the fly tuning. The Triple Dog Downloader will fit either Ford 6.0L Power Stroke, GM 6.6L Duramax or Dodge 5.9L Cummins diesel pickups. Horsepower results and certain features this downloader of- fers will vary from vehicle to vehicle.
-
Page 4: Triple Dog Installation
HARNESS DESCRIPTION OBD II PORT LOCATION This is a very simple product to operate; all operations take place inside the cab of the vehicle with the down- loader hooked up to the OBDII port. Operating the Triple Dog does not require any mechanical background. Refer to this instruction booklet for general guidelines through the download process and determining the different features available for your vehicle. -
Page 5: 02 Gm Duramax Fuse Removal
HARNESS DESCRIPTION REMOvING FUSES FOR ’01-’02 GM DURAMAx vEHICLES IMPORTANT: Skip the steps on this page if your vehicle is not an ’01-’02 GM 6.6L Duramax . WARNING: Failure to remove the fuses while downloading the programs into the computer may result in computer hardware failure. -
Page 6: 05 Gm Duramax Fuse Removal
OuTLOOK INSTALLATION REMOvING FUSES FOR ’03-’05 GM DURAMAx vEHICLES IMPORTANT: Skip the steps on this page if your vehicle is not an ’03-’05 GM 6.6L Duramax . WARNING: Failure to remove the fuses while downloading the programs into the computer may result in computer hardware failure. -
Page 7: Operating Instructions
OuTLOOK INSTALLATION OPERATING INSTRUCTIONS (INITIAL DOWNLOAD) IMPORTANT: The steps on this page are performed on all vehicles. Scroll Left Scroll Right Scroll Up Yes/Enter No/Exit Scroll Down 1. Make sure that your key is in the ignition in the off position before you plug the downloader into the vehicle. The downloader will later prompt you to turn the key to the run position. -
Page 8: Main Menu Options
OuTLOOK INSTALLATION MAIN MENU OPTIONS IMPORTANT: The information on this page is applicable to all vehicles. INSTALL DOWNLOAD Select this option to download the on the fly programming. To work properly, the correct vehicle must be selected from the vehicle selection screen. This option also allows you to control the other vehicle specific features of the downloader. - Page 9 OuTLOOK INSTALLATION INSTALL DOWNLOAD IMPORTANT: The information on this page is applicable to all vehicles. In these steps you will begin the downloading process.Select the “Install Download” option from the main menu and follow the screen prompts. SELECT VEHICLE To select the correct vehicle the correct files must first be loaded to the downloader, so it may ap- pear as though vehicles have to be selected twice.
-
Page 10: L Ford Power Stroke Features
OuTLOOK INSTALLATION FORD 6.0L POWER STROkE vEHICLE SPECIFIC FEATURES IMPORTANT: The information on this page is only applicable to Ford 6.0L Power Stroke Vehicles. Skip this page if your vehicle is not an ’03-’07 6.0L Power Stroke. SPEED LIMITER The downloader gives racing enthusiasts the option to remove the OEM speed limiter. This allows the vehicle to reach speeds in excess of where the OEM speed limiter was set, usually at 98 mph. -
Page 11: L Gm Duramax Features
OuTLOOK INSTALLATION GM 6.6L DURAMAx vEHICLE SPECIFIC FEATURES IMPORTANT: The information on this page is only applicable to GM 6.6L Duramax vehicles. Skip this page if your vehicle is not a ’01-’07 6.6L Duramax. SPEED LIMITER The downloader gives racing enthusiasts the option to remove the OEM speed limiter. This allows the vehicle to reach speeds in excess of where the OEM speed limiter was set, usually at 98 mph. -
Page 12: L Dodge Cummins Features
’03-’07 5.9L Dodge Cummins. LOW END POWER: This feature will improve low-end throttle response over Standard Bully Dog Tuning. NOTe: all the following features are available on ’06 & ’07 Dodge model years, but not all features will work on earlier models. - Page 13 OuTLOOK INSTALLATION DODGE 5.9L CUMMINS vEHICLE SPECIFIC FEATURES HEAD LAMP DELAY Use this feature to set the amount of time that the head lamps remain on after the vehicle has been turned off. Use the up/down arrows on the downloader to scroll in 5 second increments between 0 and 80 seconds.
-
Page 14: Adjustable On The Fly
OuTLOOK INSTALLATION ADJUSTING POWER ON THE FLY IMPORTANT: The information on this page is applicable to all vehicles. Once the Triple Dog completes the download it will display the “On the fly” screen where you will choose your power setting. At this point it is Ok to turn the vehicle on and drive it while you adjust your power. -
Page 15: How To Return Vehicle To Stock
OuTLOOK INSTALLATION OTHER TRIPLE DOG FEATURES IMPORTANT: The information on this page is applicable to all vehicles. STEPS TO ADjUSTABILITY: 1. If you already have an Outlook Monitor installed on your pickup, you will need to remove the plug from the OBDII port to download a power program. -
Page 16: Operating Instructions
Triple Dog. On many vehicle models there is an option to replace the Extreme setting on the Triple Dog with a Crazy Larry setting. Bully Dog offers the Crazy Larry setting upgrade as well as the new vehicle additions for free. Simply visit Bully Dog’s website www.bullydog.com... -
Page 17: Transmission Relearn
4. At full throttle get up into 5th gear. Once you are in 5th gear, apply light pressure to the brake pedal until the truck is stopped. 5. Go through the same process with the Tow Haul button on and enjoy your Triple Dog downloader. FORD 6.0L POWERSTROkE AUTOMATIC TORqUE SHIFT TRANSMISSION 1. -
Page 18: Troubleshooting
Try unplugging the downloader and trying again. If Checksum error during initial Installation problem continues, go to Bully Dog website and get latest install upgrades and try again. For more information on up-to-date troubleshooting guide for the OutLook , go to... -
Page 19: Warranty & Disclaimer
Never exceed recommended vehicle or tire top speed ratings. DISCLAIMER OF LIABILITY Bully Dog Technologies, LLC. Its distributors, jobbers, and dealers (hereafter Seller) shall be in no way responsible for the product’s proper use and service. THE BUYER HERBY WAIVES ALL LIABILITY CLAIMS. - Page 20 Bully Dog Technologies, LLC is a team built on integrity that is dedicated to leading the vehicle performance industry with an uncompromising code of ethics demonstrated in the soundness of its employees, excellent customer service and superior products. UNLEASH THE POWER...
